feat(solver): add full-field XLB cylinder surrogate

[andrinr]

Summary

• add a differentiable, full-field surrogate for the fixed N=32, Re=20
  cylinder-flow drag-optimization task
• package only inference code, a model card, and the 3.0 MiB trained weight
  bundle; dataset generation and training remain external to this repository
• decode final velocity plus tail-averaged velocity/pressure fields, then compute
  drag with the shared drag_jax surface integral (there is no scalar drag head)
• preserve XLB's two exact no-slip wall-endpoint null directions in the
  full-field Jacobian
• categorically exclude the task-specific model from out-of-distribution
  benchmark cells

This PR is stacked on feat/ns-grid-solver-in-loop.

Model and data

The residual MLP maps the 32-value inflow profile to 128 POD coefficients. Its
decoder reconstructs four 32 x 32 fields: final u_x, final u_y,
tail-averaged u_x, and tail-averaged pressure. The first two form the public
canonical velocity result; the latter two feed the same surface-traction drag
functional used by the projection solvers.

The external XLB-generated dataset contains 4,096 stable profiles split
3,072/512/512 for training/validation/test. Profile families include smooth
Fourier, multiscale, localized, and near-flat controls over the optimizer's
[0, 1.5] bounds.

• dataset SHA-256: 2832fecfb85d1ced442b38b608c512c71aca224c9a3b982d39e736d2bdf16ac8
• weights SHA-256: 6089ba29d9644e1f3b87404302b0b19aaeb7ea6ee0b359d7aa5fe395ef04626c

Offline accuracy and performance

All measurements below were run offline on RTX 5090 cluster nodes using the
same Slurm runner, Buildah, Enroot/Pyxis, and remote-Tesseract workflow as the
solver-in-the-loop work. benchmark:none is the PR disposition: CI solver
builds and benchmark execution are skipped.

Measurement	Result
held-out final-velocity relative L2, mean / p95 (n=512)	0.99% / 4.47%
held-out drag MAE / R2 (n=512)	2.39e-4 / 0.99925
float64 XLB final-velocity relative L2 (n=8)	0.30%
float64 XLB drag MAE (n=8)	5.81e-5
drag-gradient cosine, mean / min (n=8)	0.9950 / 0.9885
drag-gradient relative L2, mean (n=8)	9.06%
compiled kernel forward speedup vs XLB	113x
compiled kernel VJP speedup vs XLB	206x

The compiled speedups measure synchronized, in-process JAX calls after
compilation. The full benchmark below exercises the remote Tesseract protocol
for every forward/VJP, including HTTP/base64 serialization, request scheduling,
client bookkeeping, and periodic checkpoint writes. Those fixed costs dominate
this small 32 x 32 model: the full optimization is therefore 1.17x faster
end-to-end (31.09 / 26.50) rather than 113x.

A separate 250-update exploitation check reached surrogate drag -0.04689;
float64 XLB re-evaluation of the final profile gave -0.04758. The packaged
Tesseract's full harness run independently reproduced this: its final
full-field surface-integral drag was -0.04699, and float64 XLB re-evaluation
of the saved final profile was -0.04758.

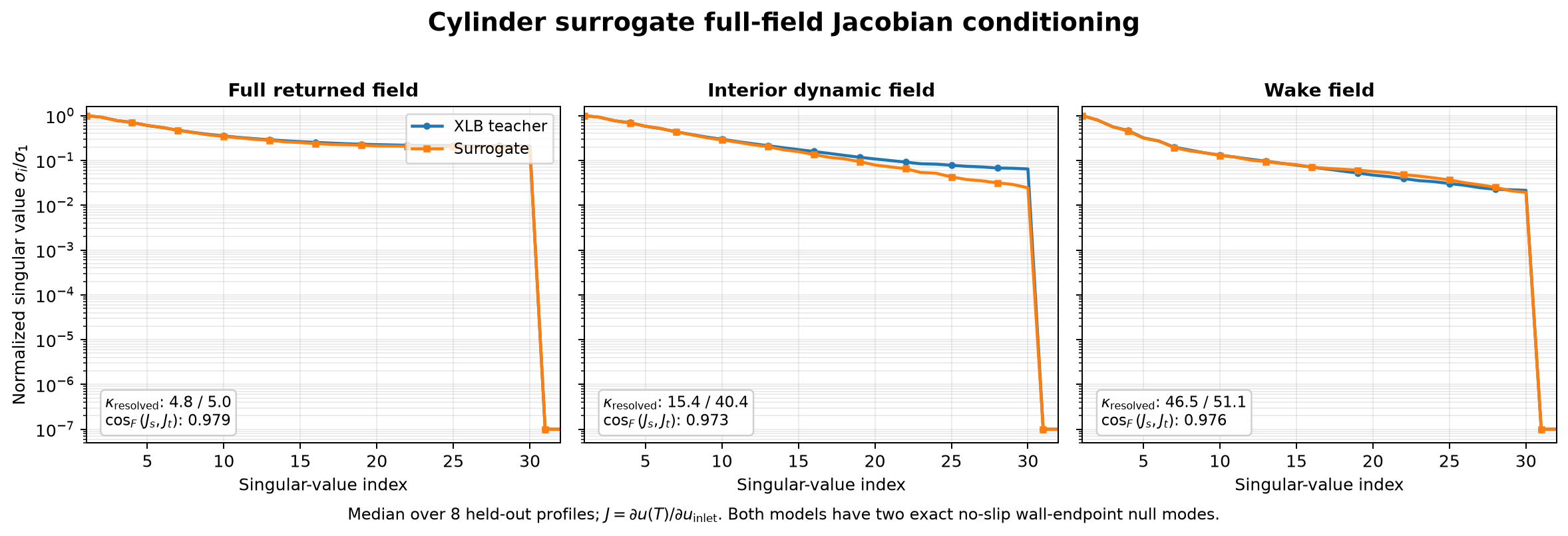

Full-field Jacobian conditioning

For J = d(final velocity) / d(inflow profile), both XLB and the surrogate
have rank 30. The two exact null directions are the profile samples at the
no-slip wall endpoints: XLB overwrites those inlet corners with no-slip states,
and the surrogate now preserves the same gradient semantics without changing
its forward predictions.

The table reports median values over eight held-out profiles. Since the raw
condition number is infinite in both models, kappa_resolved is
sigma_max / sigma_min over singular values above a relative 1e-6 threshold.

Output region	XLB kappa_resolved	Surrogate kappa_resolved	Jacobian Frobenius cosine
full returned velocity	4.79	5.03	0.9788
interior (without inlet, walls, cylinder)	15.36	40.38	0.9729
wake (x >= 0.5)	46.49	51.13	0.9758

The inlet identity makes the full returned-field spectrum look especially
well-conditioned; the interior number is the more revealing dynamics-only
diagnostic. The surrogate is more ill-conditioned there, although the
Jacobian orientation and wake spectrum remain close to XLB.

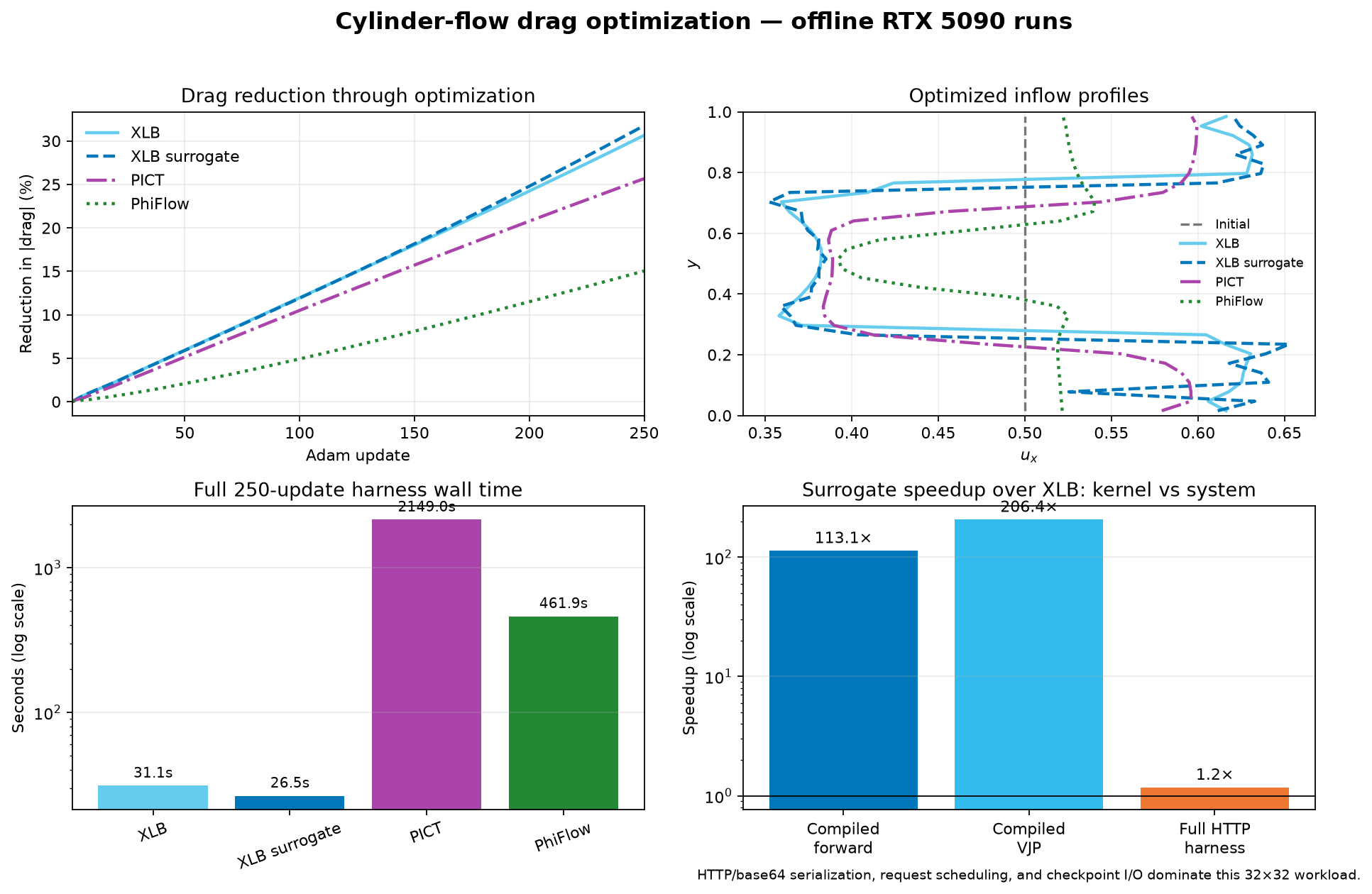

Full optimization/drag_opt benchmark

Solver	Initial drag	Final drag	Reduction	Updates	Harness wall time
XLB	-0.068912	-0.047789	30.65%	250	31.09 s
XLB surrogate	-0.068863	-0.046985	31.77%	250	26.50 s
PICT	-0.023863	-0.017738	25.67%	250	2148.98 s
PhiFlow	-0.000835	-0.000710	15.04%	250	461.90 s

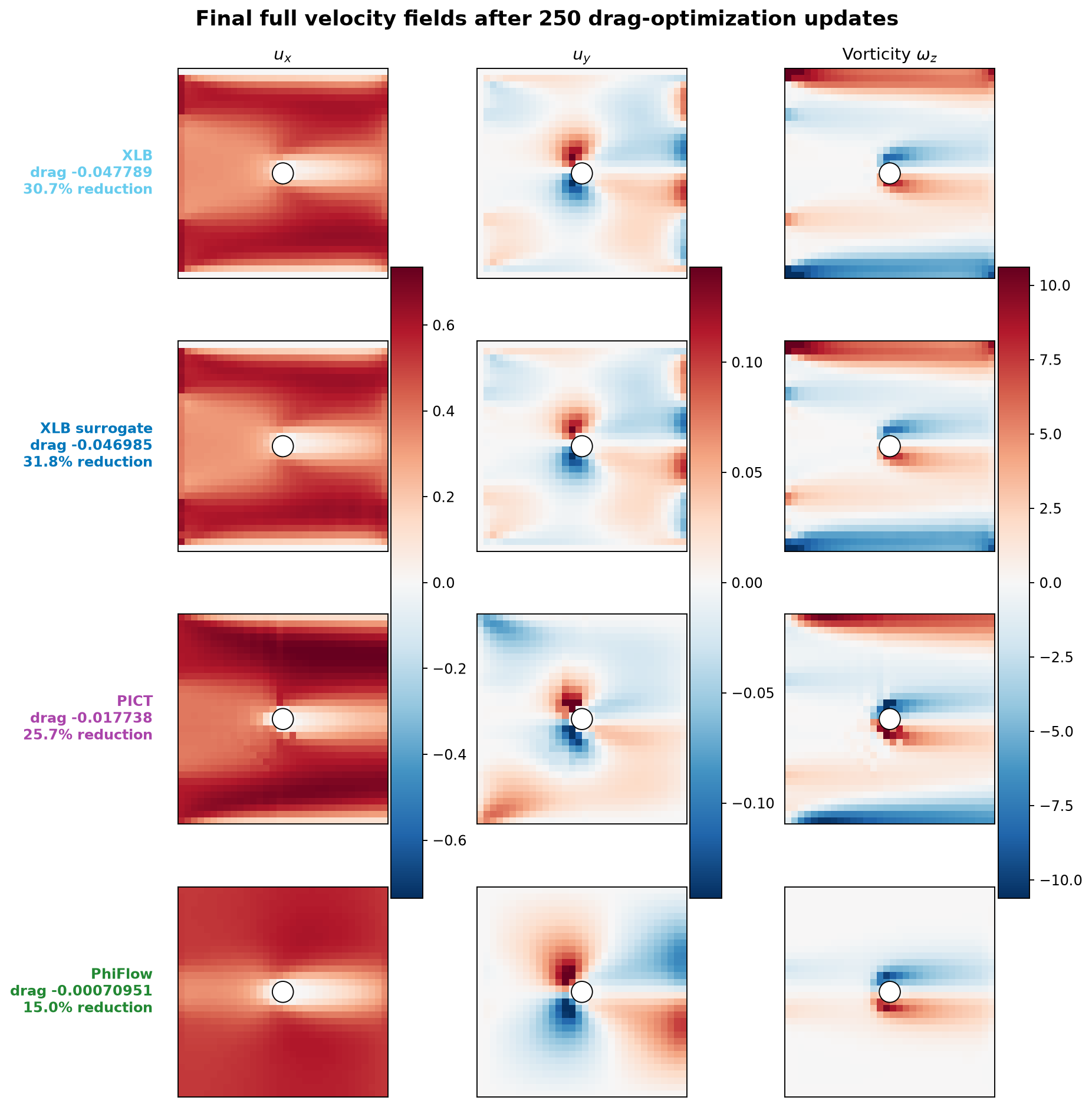

Offline optimization fields

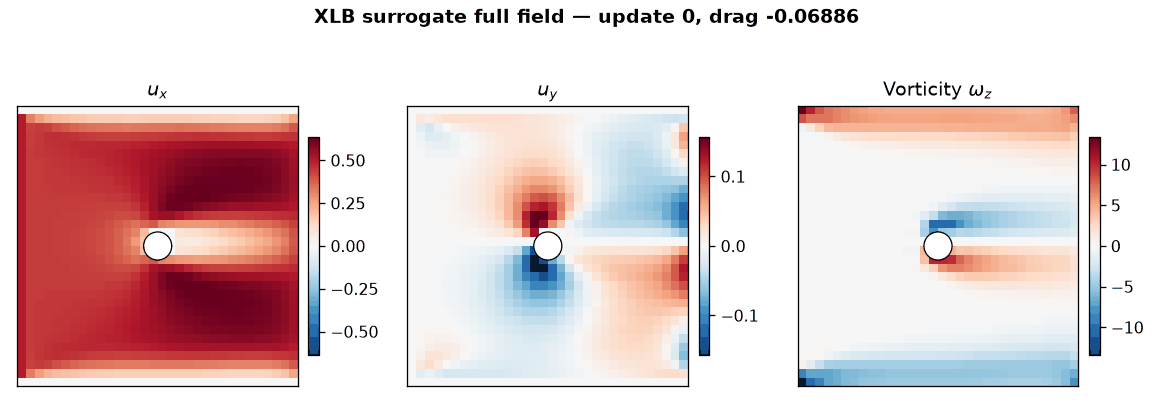

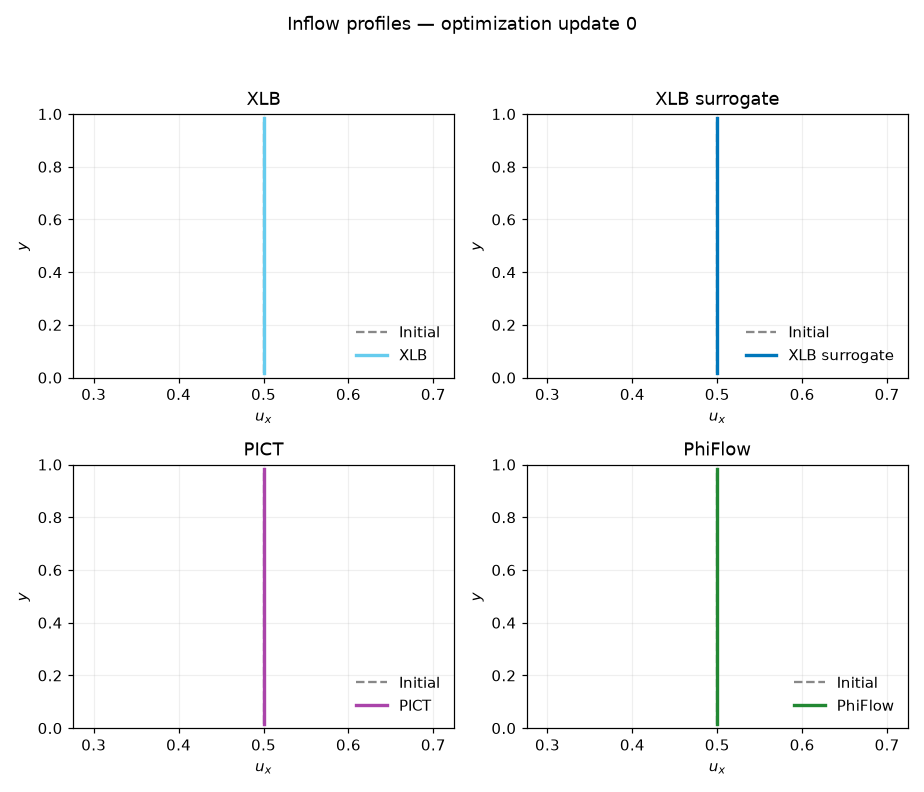

Media is generated from the completed offline runs. The full-field GIF replays
the 14 saved optimizer-profile checkpoints through the packaged surrogate; its
frames are actual decoded velocity fields, not interpolation. Because this is a
direct profile-to-final-state model, the animation axis is optimization update,
not physical simulation time.

Supporting data: artifact index,
run manifest,
held-out/gradient/timing evaluation,
full-field Jacobian conditioning,
and float64 XLB final-profile re-evaluation.

Validation

• ruff check mosaic tests
• ruff format --check mosaic tests (156 files already formatted)
• full cluster suite: 492 passed, 3 skipped
• Buildah image build plus Enroot/Pyxis round trip and packaged
  tesseract-runtime check
• offline full optimizations: XLB 1533241, XLB surrogate 1533244,
  PICT 1533248, and PhiFlow 1533243
• float64 XLB final-profile check 1533250, field-history replay 1540226,
  final render 1540227, and Jacobian conditioning 1540907
