feat(solver): add 3D XLB recovery surrogate

[andrinr]

Summary

This stacked draft adds a task-specific differentiable solver for the existing
3D initial-condition recovery benchmark:

• direct full-field v0 -> u(T) prediction, not a one-step/autoregressive rollout
• fixed N=16, nu=0.01, dt=0.02, 100-step, triply-periodic contract
• width-32 3D periodic FNO with six modes/axis and six residual spectral blocks
• exact viscous-diffusion skip plus Helmholtz-projected inputs, outputs, and VJPs
• packaged inference code and weights only; training and dataset-generation
  code remain outside the repository

This PR is stacked on #117 because both solvers share the
navier-stokes-grid Tesseract family. Cross-suite exclusions prevent either
task-specific solver from entering the other dimensionality or general sweeps.
The canonical drag output is zero: this periodic 3D task has no obstacle and
there is no learned drag head.

Offline teacher selection

All experiments used the same shared Mosaic Slurm runner and Pyxis/Enroot image
path as the solver-in-the-loop work, on RTX 5090 GPUs. No hosted benchmark was
run. Exact-cell warm in-process medians:

solver	forward	VJP
XLB	4.812 ms	14.368 ms
Exponax	10.447 ms	19.475 ms
Warp-NS	95.453 ms	215.824 ms
PhiFlow	145.900 ms	283.464 ms
PICT	822.847 ms	2,300.287 ms

XLB is therefore the training teacher.

Training provenance

• 8,192 direct XLB KBC D3Q27 trajectories
• split 6,144 / 1,024 / 1,024
• benchmark IC seeds 0, 1, and 2 excluded from every split
• amplitudes from zero to 1.25, centered on the benchmark |k|=2 shell with
  broader divergence-free spectra mixed in
• derivative distillation from 4,096 float64 XLB directional JVPs
• trajectory dataset SHA-256:
  0257c89ec3a8f4886f81960cc6867a24278de8b35b745cc98c6a1471ca3f6b8a
• JVP dataset SHA-256:
  46432889c24aa8b4e6e1f1a4bf0d1c40b866930f56cfed86157d92d42ef107ee
• packaged checkpoint SHA-256:
  8669ebaf92d920668c945b04722021fef12d5fc6fa4aa182abc63c81780ed0c9

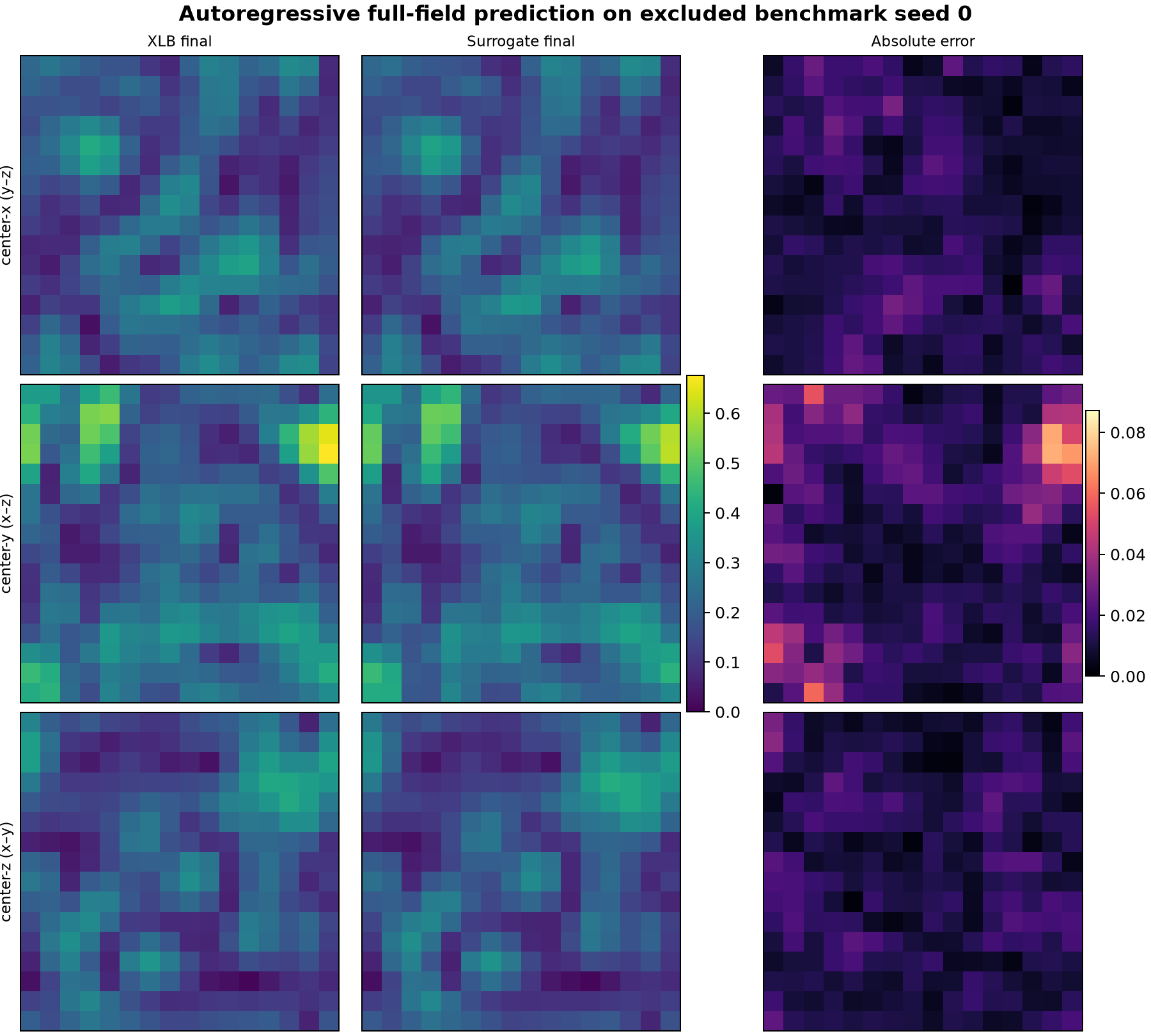

Held-out fields and derivatives

On the three excluded benchmark ICs:

metric	value
final-field relative L2	7.151%
final-field cosine	0.997441
random projected JVP cosine	0.849667
random projected JVP relative error	0.591554

The random-white tangent probe is deliberately harsher than the low-frequency
recovery manifold; held-out training-distribution directional-JVP relative
error is approximately 15%.

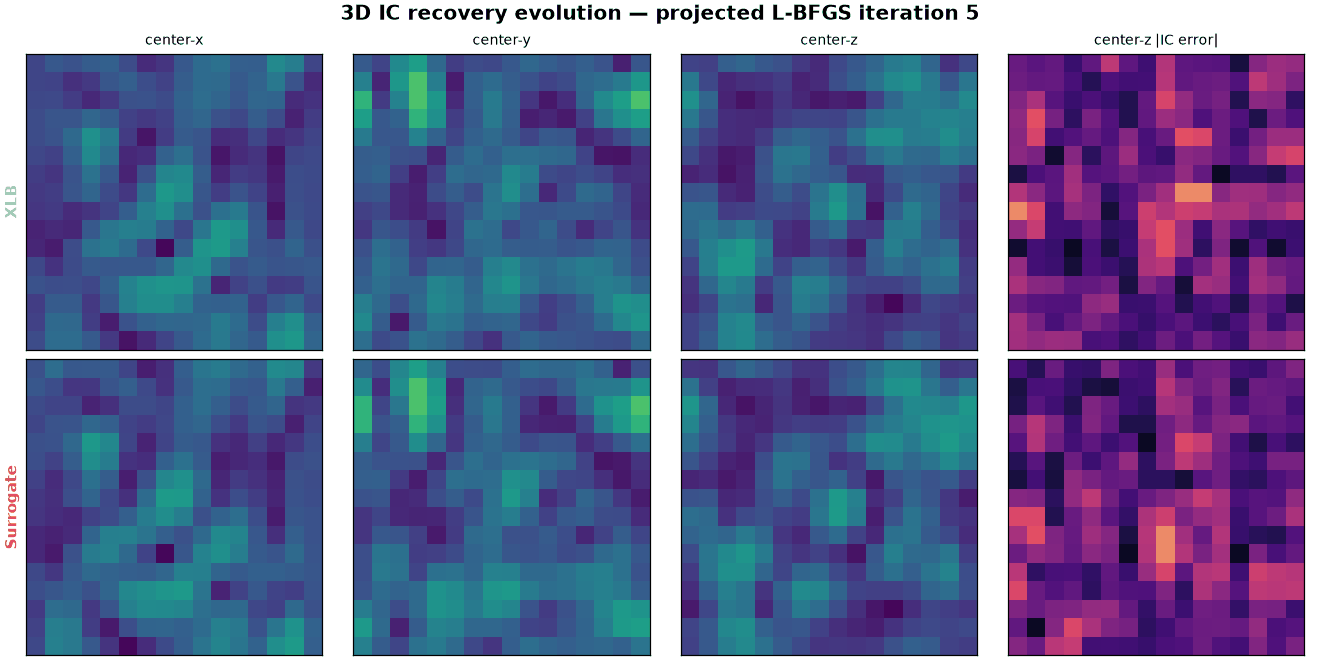

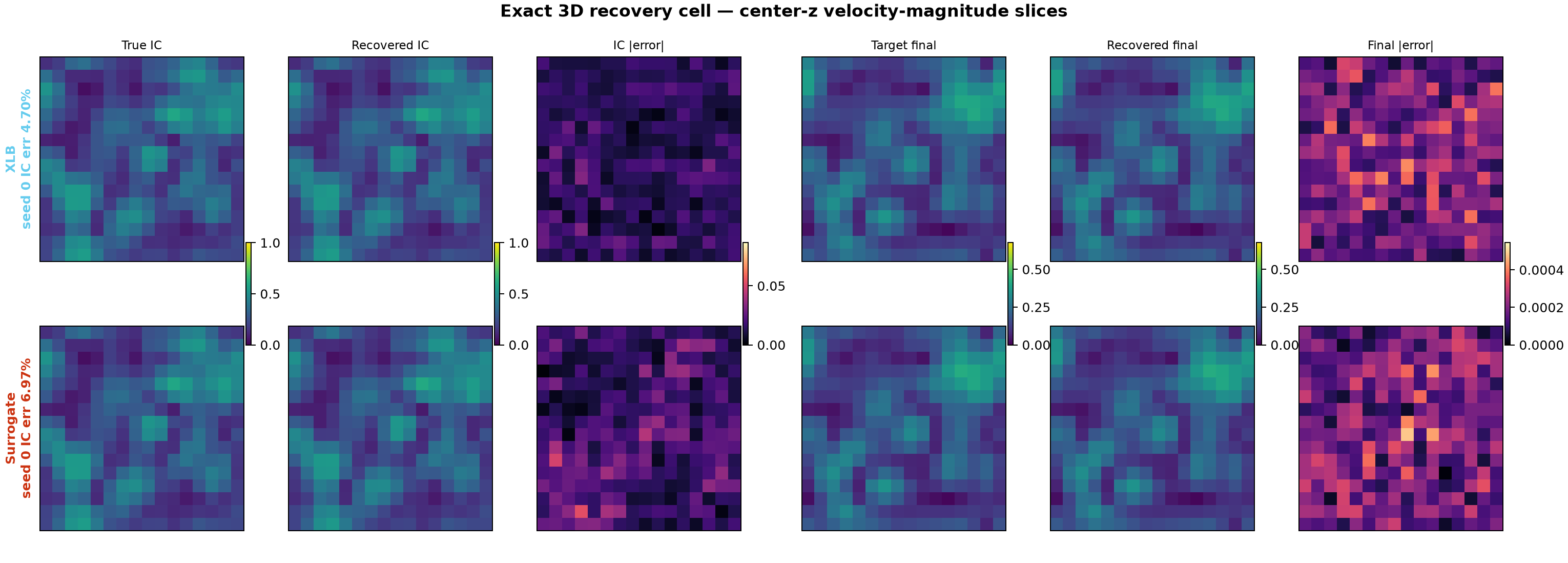

Exact projected-L-BFGS recovery

This is the existing
optimization/recovery_constant_ic_bfgs_proj cell, unmodified: zero
initialization, 100 iterations, seeds 0/1/2, and each solver generating and
inverting its own final field.

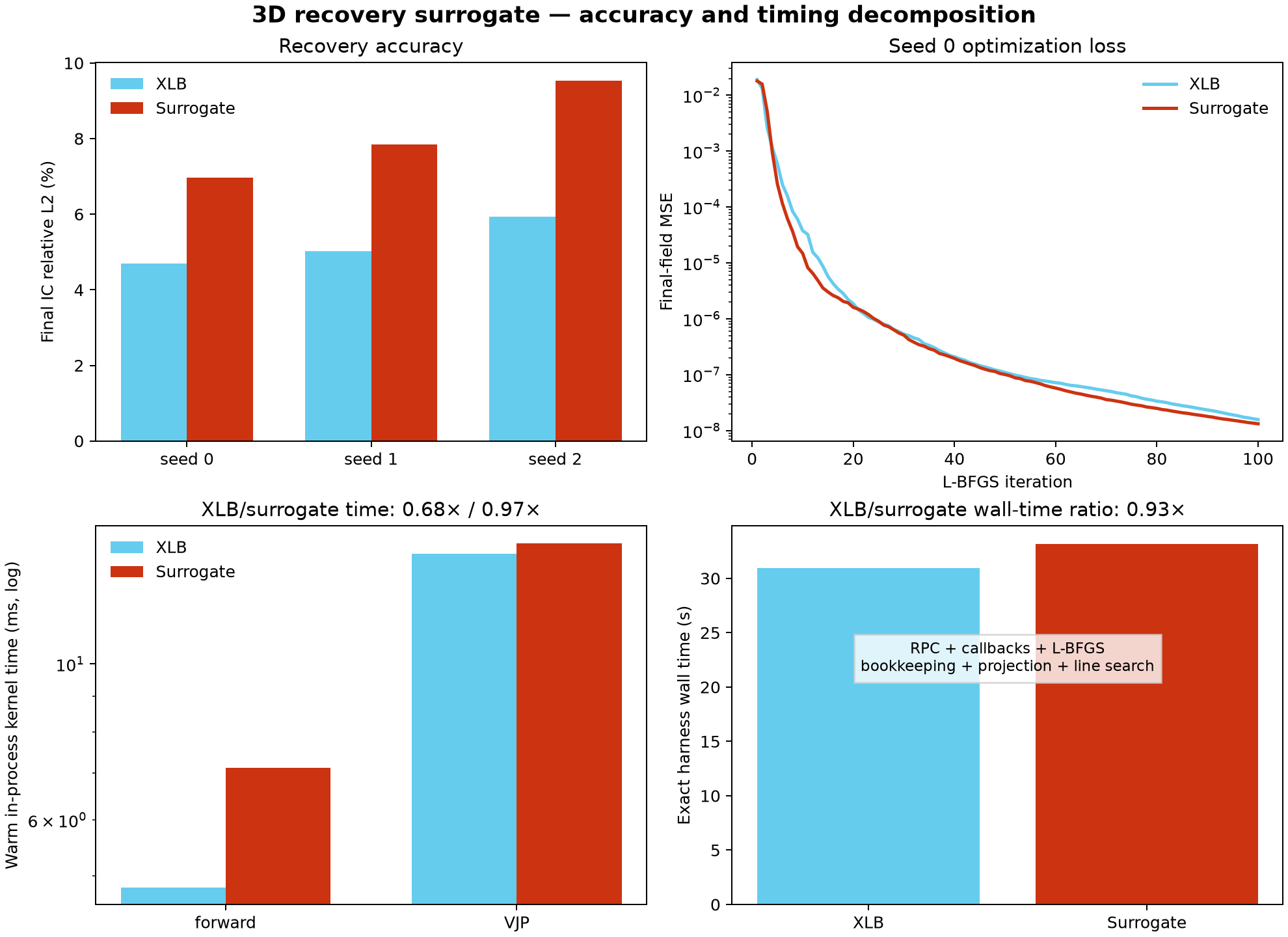

solver	seed 0	seed 1	seed 2	mean
XLB	4.70%	5.02%	5.94%	5.22%
XLB 3D surrogate	6.20%	6.92%	8.15%	7.09%

Mean final-field MSE is 2.58e-8 for XLB and 5.33e-8 for the surrogate.
Both complete all 100 iterations and pass the registered recovery threshold.

Timing: kernel versus harness

measurement	XLB	surrogate	speedup
packaged forward kernel	4.812 ms	0.920 ms	5.23x
packaged VJP kernel	14.368 ms	1.082 ms	13.28x
exact recovery harness	30.96 s	24.48 s	1.26x
recovery peak VRAM	1,110 MiB	823 MiB	1.35x lower

The harness speedup is intentionally reported separately. HTTP/RPC, host
callbacks, L-BFGS bookkeeping, Helmholtz projection, line search, serialization,
and synchronization dominate this small N=16 cell; kernel acceleration
therefore cannot translate one-for-one to end-to-end acceleration.

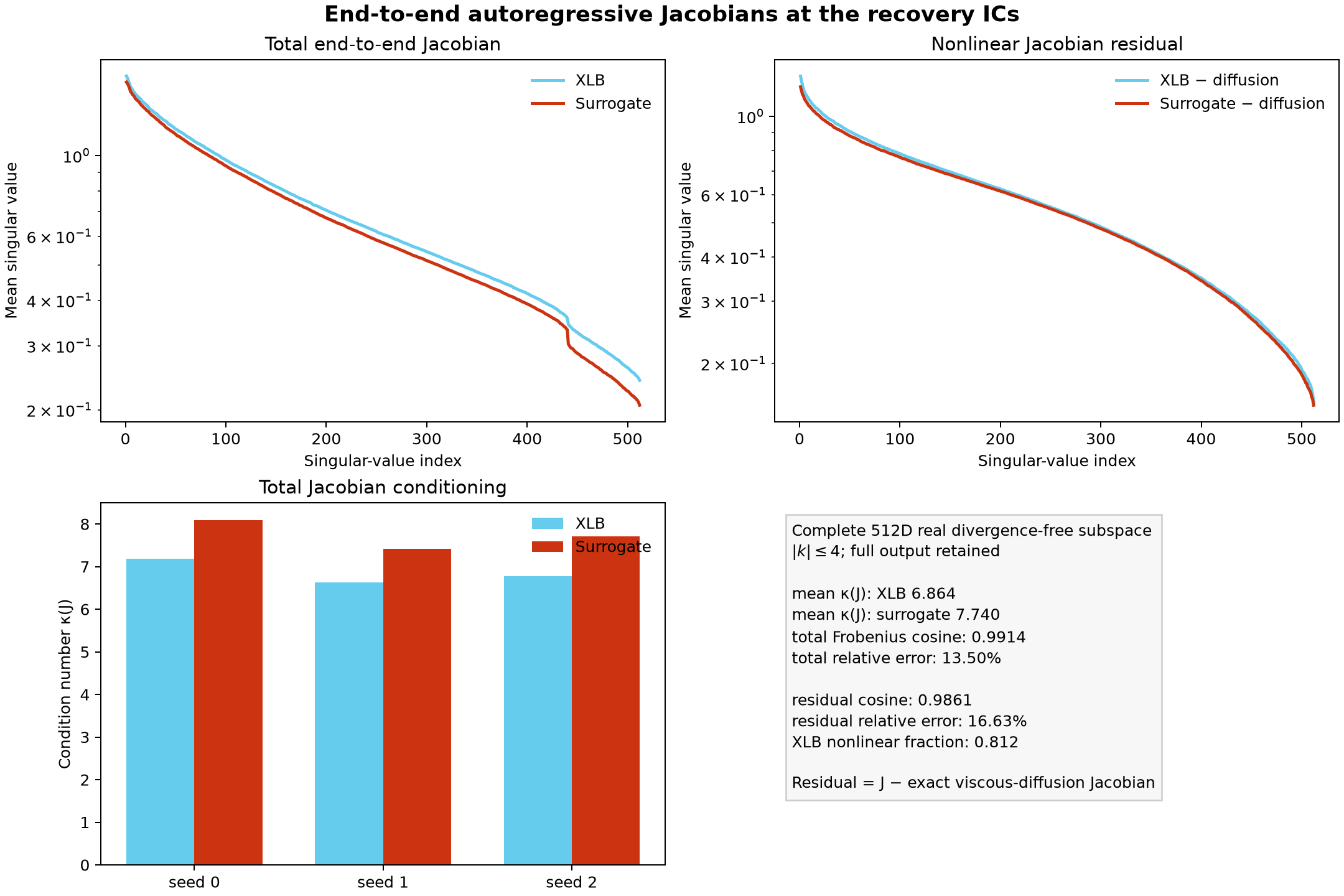

Jacobian conditioning

The full-output Jacobian d u(T) / d v0 was evaluated at seeds 0/1/2 on the
complete 512-dimensional real divergence-free Fourier subspace through
|k| <= 4 (both transverse polarizations and sine/cosine phases; mean and
longitudinal modes excluded). This is the recovery-relevant subspace, not a
claim about every Nyquist-scale direction.

seed	XLB kappa(J)	surrogate kappa(J)
0	7.182	6.758
1	6.632	6.497
2	6.778	6.434
mean	6.864	6.563

• mean kappa(J^T J): 47.17 XLB, 43.09 surrogate
• mean Jacobian Frobenius cosine: 0.9901
• mean Jacobian Frobenius relative error: 14.02%
• mean effective rank: 418.8 XLB, 420.9 surrogate

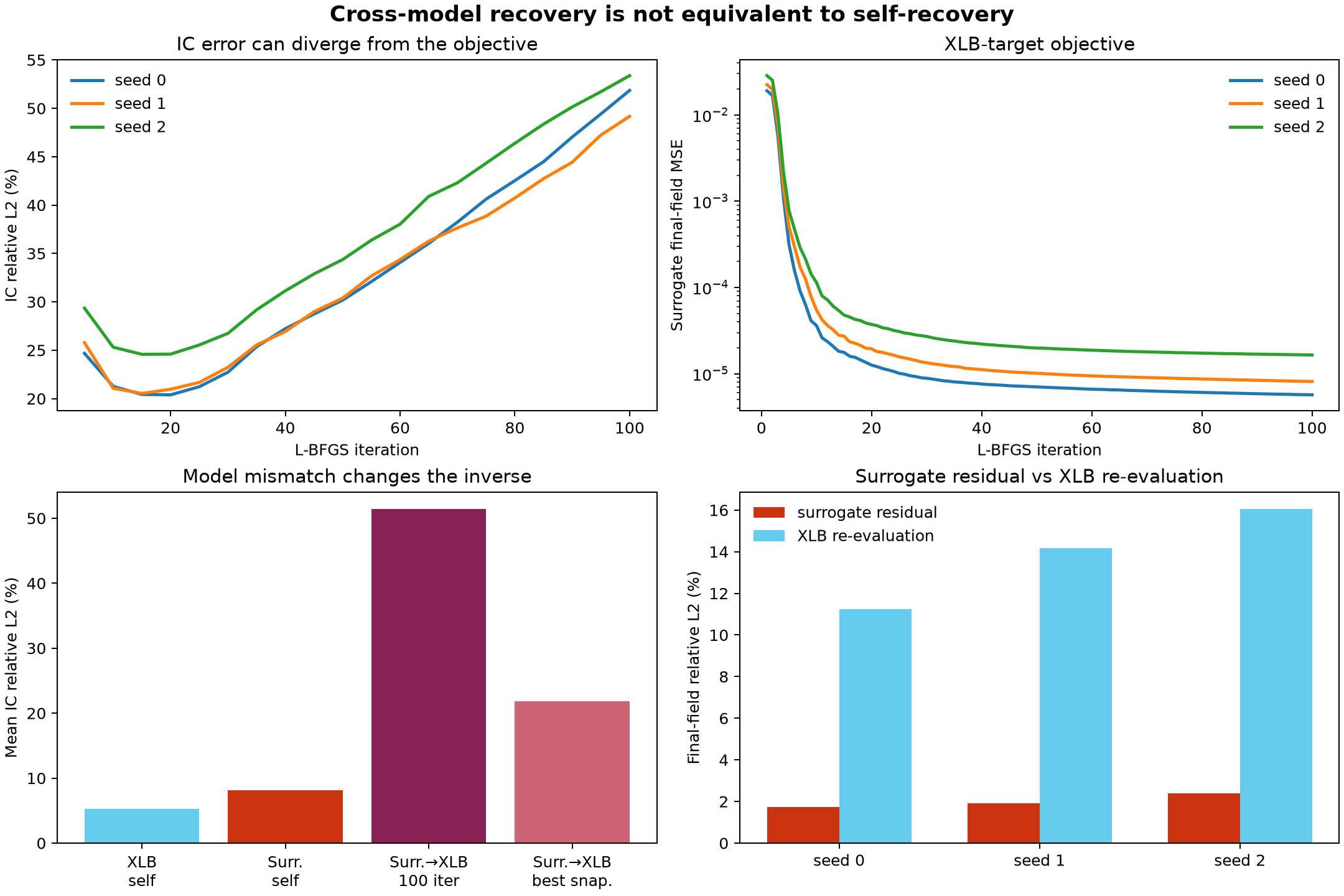

Negative result: surrogate inversion of XLB observations

Self-recovery does not establish that the surrogate can invert an
XLB-generated observation. I ran that cross-model test separately: the targets
come from XLB, while projected L-BFGS differentiates through the surrogate.

metric	seed 0	seed 1	seed 2	mean
final IC error at 100 iters	40.33%	41.53%	42.54%	41.47%
best saved IC error	17.78%	18.42%	20.87%	19.02%
surrogate residual to XLB target	1.33%	1.43%	1.58%	1.45%
XLB re-evaluation residual	6.51%	7.01%	9.16%	7.56%

The optimizer exploits surrogate model error after roughly 15 iterations:
surrogate-space loss keeps falling while the recovered IC moves away from the
truth. This checkpoint is a useful self-consistent benchmark solver, but it is
not yet a drop-in inverse model for XLB observations.

Validation and artifacts

• packaged Tesseract API check passed in its generated Enroot image
• focused unit tests: 4 passed
• Ruff lint and format checks passed
• GitHub Python 3.12/3.14, pre-commit, config validation, and title checks passed
• hosted solver builds and benchmarks skipped via benchmark:none

Supporting data: artifact index,
manifest and job IDs,
held-out field/JVP evaluation,
conditioning spectra,
XLB recovery envelope,
surrogate recovery envelope,
and cross-model recovery.
