Multicut Game — Alliance Divider

Cut the Enemies, Unite the Allies

A strategy puzzle game that transforms the NP-hard Multicut problem from combinatorial optimization into an interactive alliance-building experience.

Table of Contents

• Mathematical Background
• Game Setting
• How to Play
• Gameplay Features
• Difficulty and Level System
• Technical Implementation
• Future Work
• References

Mathematical Background

The Multicut Problem

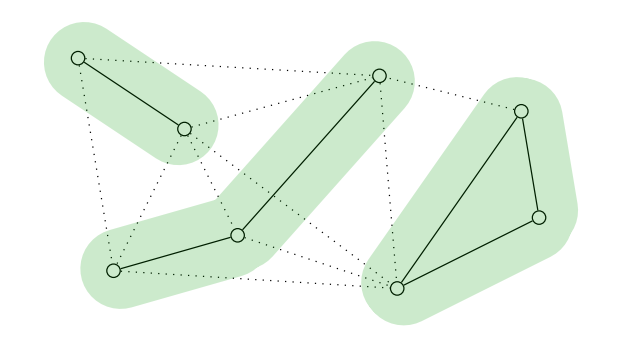

The Multicut problem is a combinatorial optimization problem. The goal is to cut an undirected graph into multiple connected components while minimizing the total cost of cut edges.

Formal Definition

Let $G = (V, E)$ be an undirected graph. A subset of edges $M \subseteq E$ is called a multicut of $G$ if and only if, for every cycle $C = (V_C, E_C)$ in the graph, the following holds:

$$\lvert M \cap E_C \rvert \neq 1$$

In other words, no cycle is allowed to contain exactly one cut edge. The set of all multicuts of $G$ is denoted by $\mathcal{M}(G)$.

Optimization Objective

Given edge costs $c_e \in \mathbb{R}$ for each edge $e \in E$, the Multicut optimization problem is:

$$ \min_{M \in \mathcal{M}(G)} \sum_{e \in M} c_e $$

Intuition: edge costs can be positive or negative. Positive-cost edges represent friendly relations (expensive to cut), while negative-cost edges represent hostile relations (beneficial to cut). The player seeks the minimum total cutting cost.

Cycle Inequalities

The key Multicut validity rule is the cycle inequality: no cycle may have exactly one cut edge. This implies:

• If one edge on a cycle is cut, at least one more edge on that cycle must also be cut.
• This guarantees consistency of components: nodes split into different groups cannot remain connected by an uncut path.

Computational Complexity

The Multicut problem is NP-hard [3, 6], so an efficient exact algorithm is unlikely in general. Nevertheless, it has strong real-world impact [2, 12], motivating extensive theoretical [3, 5, 7, 11] and algorithmic [1, 4, 6, 9, 10] research.

Brief History

• Grötschel & Wakabayashi (1989) [6]: early study on complete graphs.
• Chopra & Rao (1993) [3]: extension to general graphs.

The same family of problems appears under related names:

• Correlation Clustering [1]
• Coalition Structure Generation [13]

Game Setting

• World: city-states with complex friendly/hostile relations.
• Player role: a royal strategist discovering hidden alliance structures.
• Goal: cut hostile ties, preserve friendly ties, and form stable alliances.

How to Play

Steps

1. Hold the right mouse button to enter "Cut Mode".
2. Choose valid and low-cost edges to cut.
3. Observe the result and optimize iteratively.

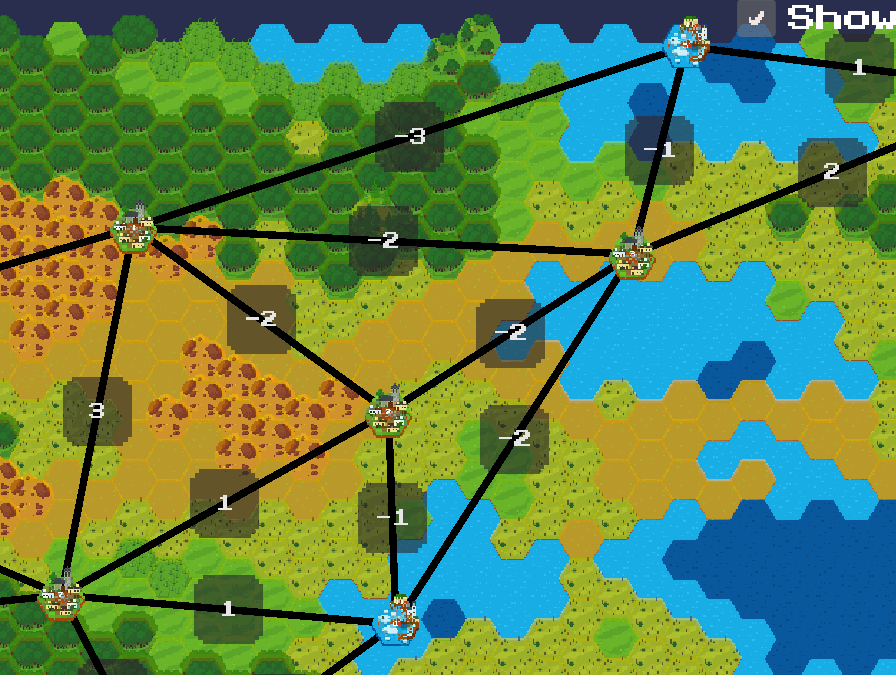

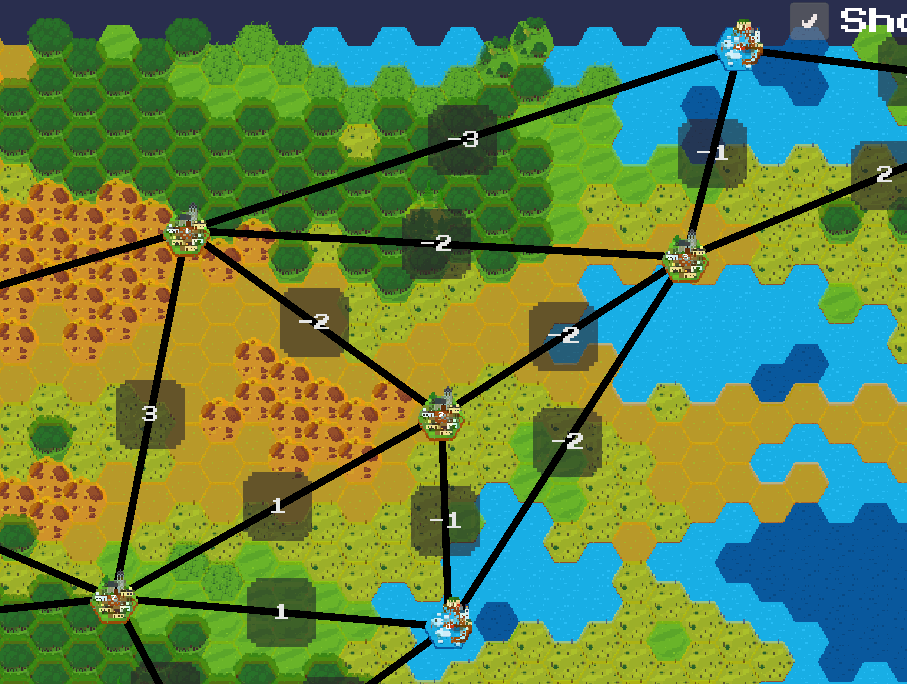

What Is a Valid Cut?

A cut is valid if it separates at least one target pair of vertices into different territories.

Why Low-Cost Edges?

Cutting low-cost edges reduces total cost and makes it easier to reach the optimal target value.

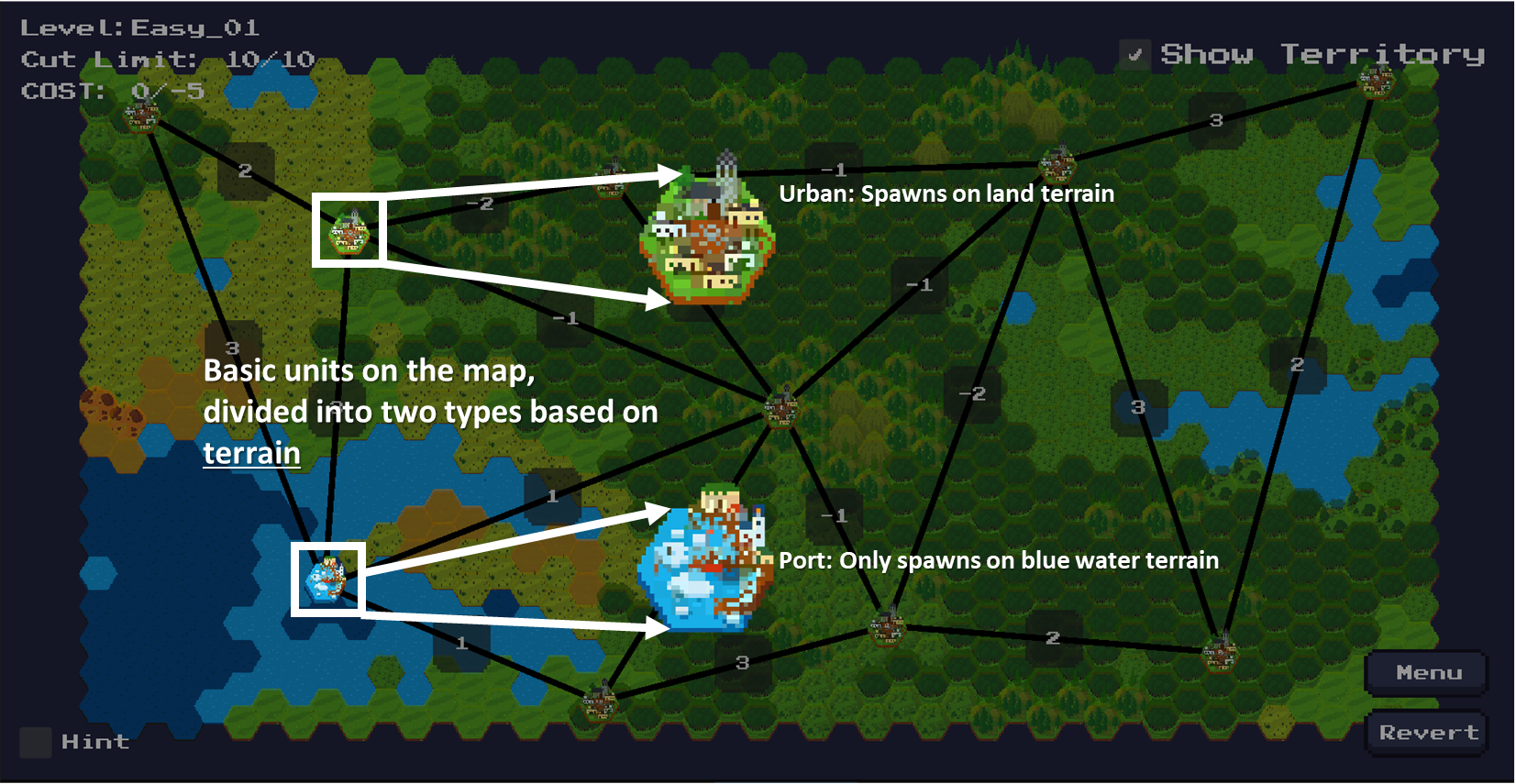

Unit Types

• Urban: spawns on land tiles.
• Port: spawns only on water tiles.

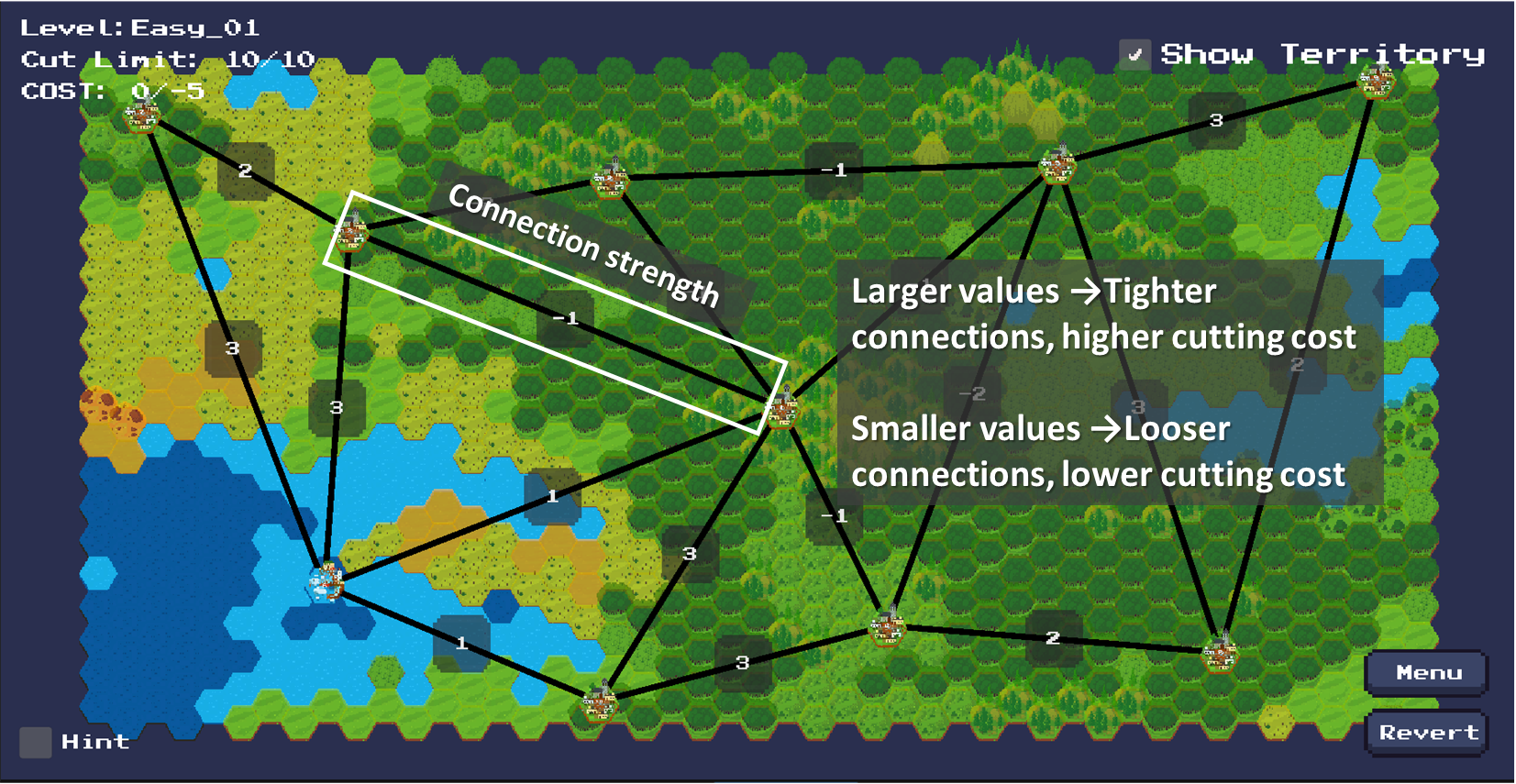

Connection Strength

Edge labels indicate relationship strength:

• Larger values -> tighter relation, higher cut cost.
• Smaller values -> looser relation, lower cut cost.

Gameplay Features

HUD

• Level display: format Difficulty_LevelID (e.g., Easy_01).
• Cut limit: remaining / total cuts.
• Cost display: current cost / optimal target cost.

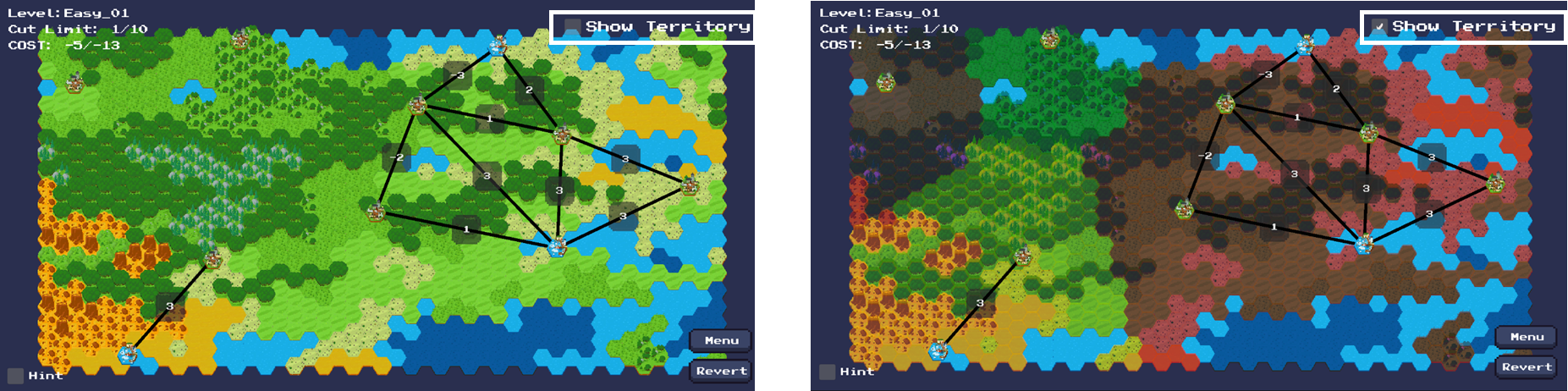

Territory View

With "Show Territory" enabled:

• Alliance boundaries become visually clear.
• Abstract graph structure is materialized as map territory.
• Different alliances are color-coded.
• Units in the same color area connected by uncut edges belong to one alliance.

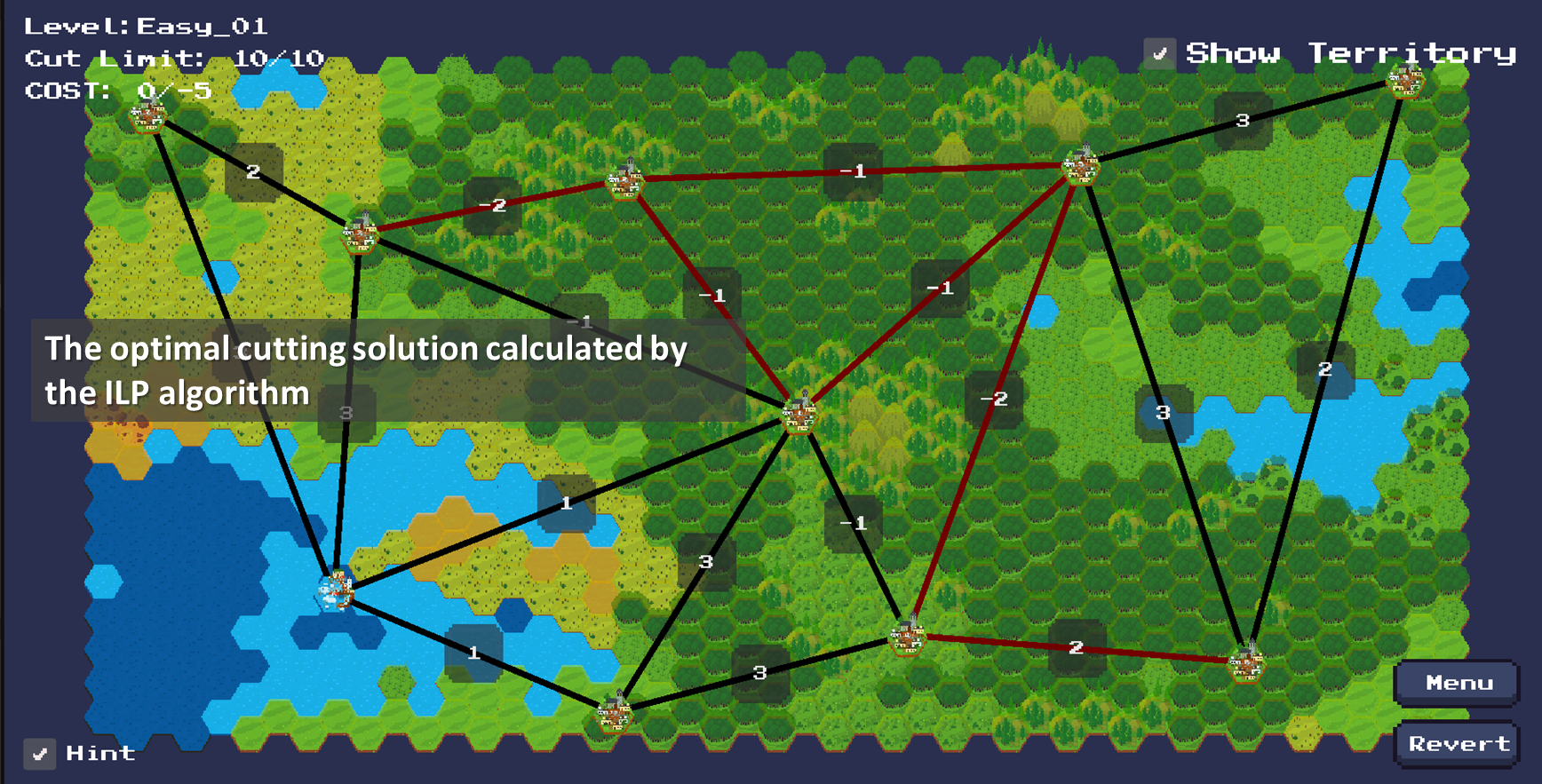

Hint System

When "Hint" is enabled, the game shows the optimal cut set computed by the ILP solver.

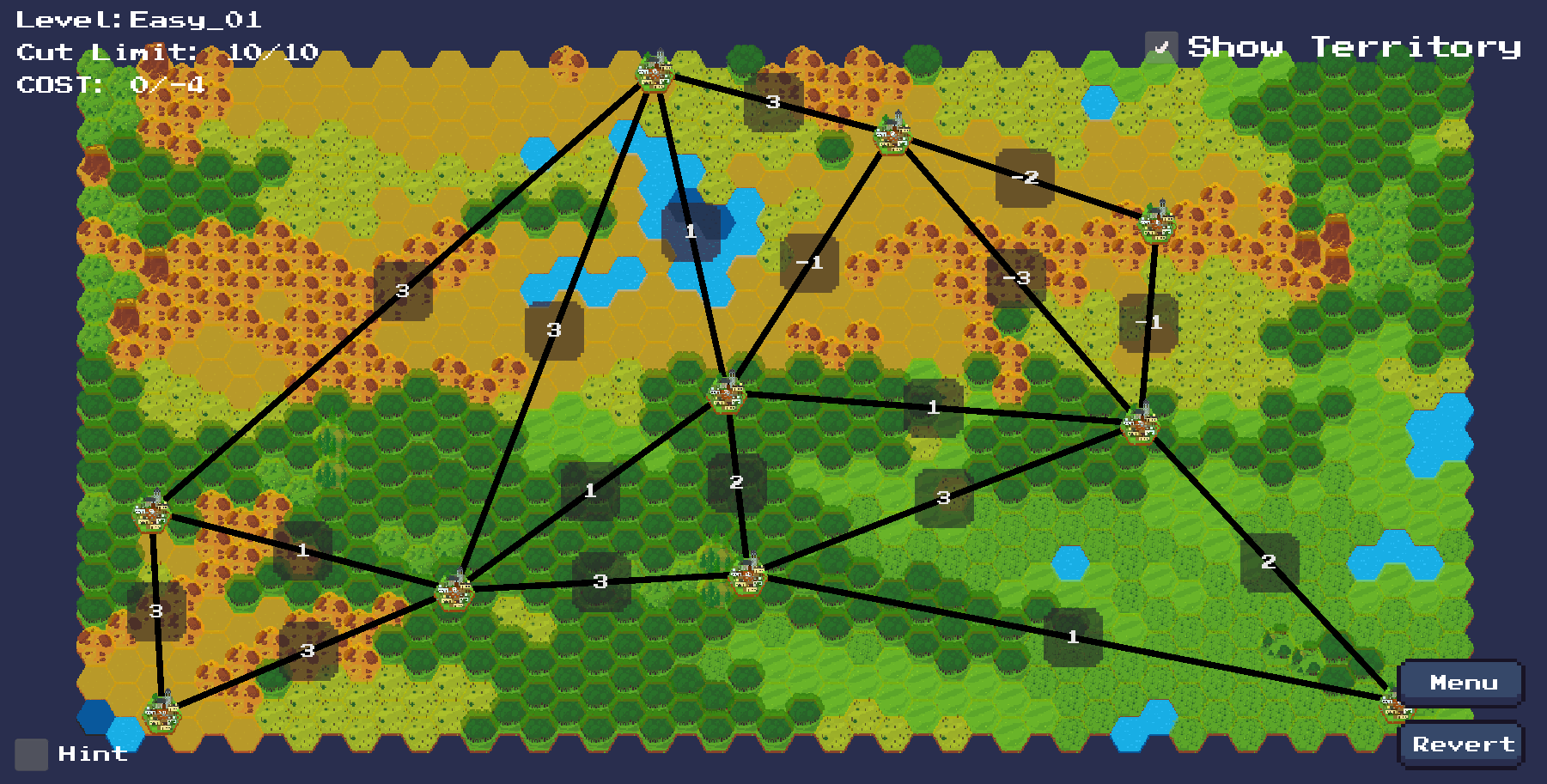

Revert System

Two revert options:

• Reconnect a previously cut edge directly.
• Use the Revert button to undo the latest action.

Difficulty and Level System

The game uses an infinite level generation pipeline with three difficulties:

Difficulty	Node Count	Extra Mechanics
Easy	Fewer nodes	Core gameplay only
Medium	More nodes	Timer added
Hard	Many nodes	Timer + penalty edges (cutting reduces remaining time)

Weight Balancing Mechanism

To keep levels strategic and non-trivial, the game applies a smart balancing algorithm:

• Keep approximately 35% negative-weight edges.
• Ensure at least 3 negative-weight edges.
• Flip the smallest positive weights first when balancing is needed.
• Apply minimal changes only (conservative adjustment).

Technical Implementation

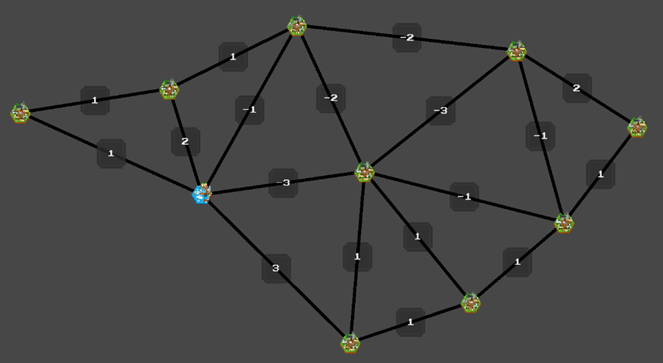

Scene Construction

1) Poisson Disk Sampling

Generates city-state positions with minimum-distance constraints, producing random yet evenly distributed nodes.

2) Delaunay Triangulation

Builds graph connectivity while avoiding skinny triangles and edge intersections.

3) Auto Centering and Scaling

Normalizes map bounds to screen space for different map sizes and resolutions.

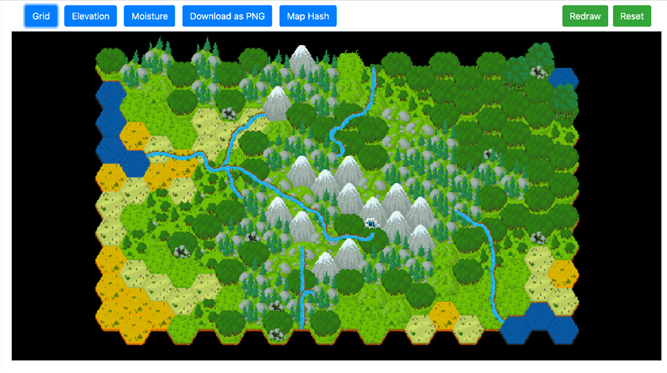

TileMap Generation

Uses TiledProceduralHexTerrainGenerator:

1. Generate random height map.
2. Overlay multi-layer details.
3. Classify terrain types.
4. Add humidity variation.

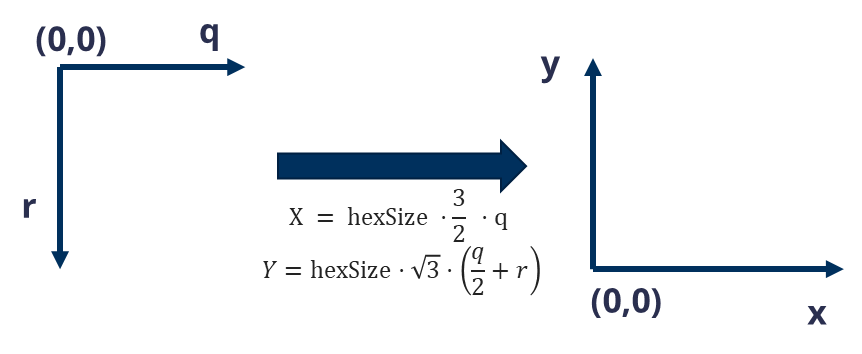

Integration handles coordinate mapping from Tilemap (q, r) to Unity world (x, y), offset correction, and Y-axis inversion.

ILP Solver (Gurobi)

The Multicut problem is NP-hard, so exact optimization is expensive. We use Gurobi ILP for globally optimal solutions:

Method	Limitation	Gurobi ILP Advantage
Heuristics	Fast but no global optimality guarantee	Industrial speed + provable global optimum
Approximation	Guarantee on bounds but weaker practical solutions	Exact optimization, not approximation
Brute force	Infeasible	Practically solvable with industrial optimization

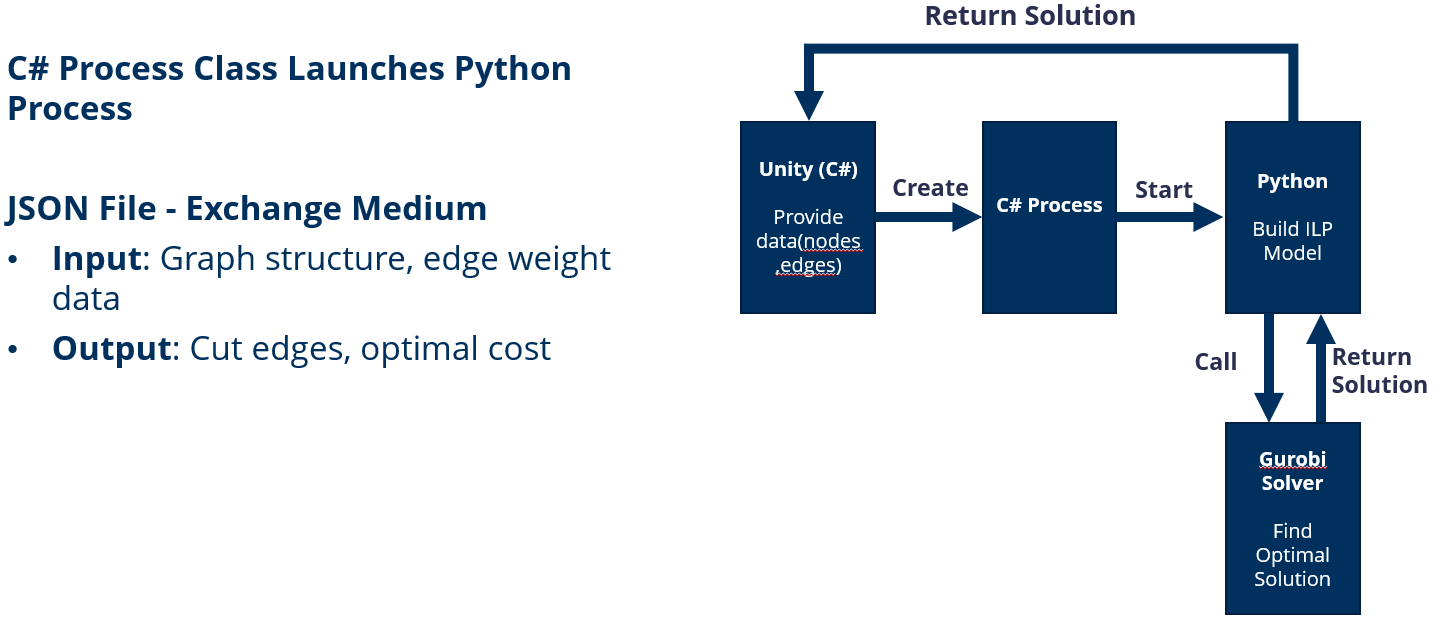

System Integration: Unity -> Python

A C# Process launches Python, and JSON files are used for data exchange:

• Input: graph structure and edge weights.
• Output: cut edges and optimal objective value.

Alliance Territory Coloring

A nearest-neighbor based assignment maps terrain tiles to city-states to visualize alliances clearly.

Demo Video

-see releases/demo.mp4

Future Work

• Improve territory rendering performance and reduce lag.
• Add random events that dynamically modify edge weights.
• Let hostile city-states actively repair cut edges.
• Make terrain features (mountains, rivers, forests) affect edge weights.

References

1. Bansal, N., Blum, A., & Chawla, S. (2004). Correlation clustering. Machine Learning, 56(1–3), 89–113.
2. Beier, T., Pape, C., et al. (2017). Multicut brings automated neurite segmentation closer to human performance. Nature Methods, 14(2), 101–102.
3. Chopra, S., & Rao, M. R. (1993). The partition problem. Mathematical Programming, 59(1–3), 87–115.
4. Demaine, E. D., Emanuel, D., Fiat, A., & Immorlica, N. (2006). Correlation clustering in general weighted graphs. Theoretical Computer Science, 361(2–3), 172–187.
5. Deza, M. M., Grötschel, M., & Laurent, M. (1992). Clique-web facets for multicut polytopes. Mathematics of Operations Research, 17(4), 981–1000.
6. Grötschel, M., & Wakabayashi, Y. (1989). A cutting plane algorithm for a clustering problem. Mathematical Programming, 45(1), 59–96.
7. Grötschel, M., & Wakabayashi, Y. (1990). Facets of the clique partitioning polytope. Mathematical Programming, 47, 367–387.
8. Horňáková, A., Lange, J.-H., & Andres, B. (2017). Analysis and optimization of graph decompositions by lifted multicuts. In ICML.
9. Klein, P. N., Mathieu, C., & Zhou, H. (2015). Correlation clustering and two-edge-connected augmentation for planar graphs. In STACS.
10. Levinkov, E., Kirillov, A., & Andres, B. (2017). A comparative study of local search algorithms for correlation clustering. In GCPR.
11. Oosten, M., Rutten, J. H. G. C., & Spieksma, F. C. R. (2001). The clique partitioning problem: facets and patching facets. Networks, 38(4), 209–226.
12. Tang, S., Andriluka, M., Andres, B., & Schiele, B. (2017). Multiple people tracking by lifted multicut and person re-identification. In CVPR.
13. Voice, T., Polukarov, M., & Jennings, N. R. (2012). Coalition structure generation over graphs. Journal of Artificial Intelligence Research, 45, 165–196.
