🧩 Problem

Every day, thousands of laundromat operators in the Philippines face the same four problems:

Pain Point	What It Costs
Cash + e-wallet screenshots as "proof"	Hours of manual reconciliation daily
No real-time payment confirmation	Staff handle disputes instead of orders
Delayed remittance	Cash stuck, can't pay suppliers or staff
Multi-branch chaos	No single source of truth across locations

The root cause: the payment layer is disconnected from the operation. Orders live in one place. Payment proof lives in someone's phone. For multi-branch operators this compounds — staff and owners spend time fixing mismatched statuses, handling disputes with incomplete proof, and manually consolidating reports.

🌟 Vision

One payment layer that connects laundry counter operations to the Stellar blockchain — fast enough for ₱50 orders, auditable enough for multi-branch reconciliation, and open enough to serve Southeast Asia's estimated 600,000+ laundry MSMEs.

🎯 Purpose

StellarPay resolves tenant-scoped customer orders, guides customers through a two-step payment flow, confirms Stellar payments from pending to verified, and persists receipts for replayable proof. The goal: a payment flow that is easy for customers, trustworthy for operators, and auditable for support teams.

👥 Target Users

Industry-inferred estimates suggest there are around 8,000 to 15,000 laundromat and laundry shop operators in the Philippines (not 120,000), with a plausible Southeast Asia total of 600,000+ laundry MSMEs.

Philippines breakdown (industry-inferred):

• Metro Manila: ~3,000 to 4,000
• Cebu: ~800 to 1,200
• Davao: ~600 to 900
• Rest of the Philippines: ~4,000 to 8,000

These ranges align with machine import volumes, detergent supplier distribution, franchise network sizes, and MSME density per barangay. No official PSA total exists for laundry shop counts.

Southeast Asia note: the 600,000+ figure is a reasonable industry estimate, not an official regional statistic.

Primary users:

• Independent laundromat owners
• Multi-branch operators
• Frontline staff handling checkout
• Finance and admin teams responsible for reconciliation and reporting

Secondary users: anchor/payment providers, franchise networks, and SME-enablement programs.

✨ Features

Customer Experience

• Mobile-first app shell with top and bottom navigation
• Google sign-in flow for customer session continuity
• Orders list with operational filters and action states
• Dedicated pay route per order with receipt history and profile views

Payment Workflow

• Stellar payment request creation
• Two-step checkout flow with merchant QR verification and explicit PAY NOW
• Confirmation polling with pending and confirmed proof states
• Receipt persistence for post-payment history
• Transaction reference visibility for support and audit trails
• On-chain payment audit log via Soroban PaymentRegistry smart contract

Reliability

• SaaS/demo order fallback path for continuity
• Service worker safeguards for local development stability
• Post-deploy smoke test automation for public routes and assets

🛠️ Tech Stack

Layer	Technology
Framework	Next.js 15
UI	React 19 + TypeScript
Identity	Firebase Authentication
Payment integration	Stellar SDK + Soroban smart contract
Smart contract	Rust / Soroban SDK 22 (wasm32v1-none, 3,843 bytes)
APIs	Next.js route handlers
Hosting	Firebase App Hosting (stelllar, asia-east1)

🚀 How to Run Locally

Prerequisites: Node.js 20+, npm 10+

npm install
npm run dev:once

Open: http://localhost:3001

# Production build check
npm run build

# Production smoke check
npm run smoke:production

🌐 Deployment

Deployed via Firebase App Hosting (stelllar, region asia-east1).

• Build: npm run build · Run: npm run start
• Custom domain: stellar.laundromatai.app
• Backend: stelllar--seanraynon.asia-east1.hosted.app

Testnet

• Contract Address: CCLFE47ZTMIV5UGJZOI7KIVAKXG7ZQAMROHLROHMHRCDPEZWE7MU7G33

• Account: GBK4EPWBVRS5KLW6AR2QTPFD5ZUJIVCP3KTEY2CIF6QOCAYY4SDZO6WC

• Explorer: Stellar Expert — Soroban Contract (Testnet)

• 📸 Screenshot — Stellar Expert Contract (Testnet)



• 📸 Screenshot — Stellar Expert Account (Testnet)



Mainnet

• Merchant Account: GBXEISJ7QAWSS6Z4MSHYGCVOLKTAV6GAHYNOYUOST2HYUDOSRDCNGDLD

• Demo Customer Account: GBDZXAJCTGPMASCYPPE6V5NYRBWFFRYSTL4QV72IJ6JYQEI62QIPEQMG (hackathon-funded, auto-sends demo payments)

• Explorer: Stellar Expert — Merchant Account

• Verified TX: 7190d78f...

• 📸 Screenshot — Stellar Expert (Mainnet)



Soroban MAINNET Proof (Quick View)

• Contract (Stellar Expert): https://stellar.expert/explorer/public/contract/CANEW7EC3W6BMVDJQNRDVTUZZ32QWIY5LNOEGWPVRWYF7LEJUUWEYWKB
• Contract (Stellar Lab): https://lab.stellar.org/r/mainnet/contract/CANEW7EC3W6BMVDJQNRDVTUZZ32QWIY5LNOEGWPVRWYF7LEJUUWEYWKB

🎥 Demo

• 🔗 Live App: stellar.laundromatai.app
• 🎬 Demo Video: youtu.be/j7AWyGVniZg
• 🖼️ Pitch Deck: Google Slides

⚡ Live Payment Demo — Try It Now

No wallet needed. No setup. Real Stellar mainnet.

How It Works

1. Open any pay link below on your phone
2. Step 1 — scan the counter QR (printed poster at the laundry counter)
3. Tap PAY NOW
4. 0.01 XLM auto-sends on Stellar mainnet
5. Success screen appears in ~5 seconds
6. Verify the transaction on Stellar Expert

Try a Live Order

Order	Pay Link
LPX0026	stellar.laundromatai.app/pay/LPX0026
LPX0027	stellar.laundromatai.app/pay/LPX0027
LPX0028	stellar.laundromatai.app/pay/LPX0028

SEP-7 Payment QR (Step 2 — shown on screen after PAY NOW)

This QR is generated live for each order and displayed on the payment page. It encodes a SEP-7 stellar://pay URI pointing to the merchant account with a unique memo per order.

stellar://pay?destination=GBXEISJ7...&amount=0.01&memo=PAY-LPX0026

Compatible with Lobstr, Solar Wallet, and any SEP-7 compliant Stellar wallet.

Verified Mainnet Transactions

TX Hash	Memo	Explorer
7190d78f...	PAY-LPX0025	View on Stellar Expert
74f91d58...	PAY-LPX0025	View on Stellar Expert

Merchant Receiving Account

GBXEISJ7QAWSS6Z4MSHYGCVOLKTAV6GAHYNOYUOST2HYUDOSRDCNGDLD

View on Stellar Expert →

👨‍💻 Team

Sean Raynon Founder & CTO — LaundromatAI

📧 Email	hello@laundromatai.app
📞 Phone	+1 (877) 415-5442
🌐 Website	laundromatai.app
🧑‍💻 GitHub	github.com/seansabado
🧪 ORCID	orcid.org/0009-0000-4157-7445
📸 Instagram	instagram.com/seanraynon
💼 LinkedIn	linkedin.com/in/seanraynon
👤 Personal	seanraynon.com
📰 Media Kit	laundromatai.app/media
📍 Address	254 Chapman Rd, Ste 208, Newark, Delaware 19702, USA

============================================================= -------------------------------------------- EOF -------------------------------------------------------

Additional Technical Proof and Deep-Dive (Optional)

If you want more technical detail beyond the required organizer scope, use this quick navigation map.

Table of Contents (Optional Section)

1. Project Status Snapshot (immediately below)
2. Demo Video
3. Soroban Smart Contract (Mainnet Logging + Registry)
4. Stellar Explorer Accounts
5. Quick Entry Points
6. Visual Preview
7. Screenshots
8. Why Stellar?
9. Business Outcomes
10. Roadmap
11. What This Repository Demonstrates
12. Architecture Flow
13. Read Path By Audience
14. Product Walkthrough
15. Repository Structure
16. Documentation Map
17. Security and Governance Direction
18. Current Status
19. Known Limits

---

Project Status: Production-Grade — Stellar Mainnet Live
Full payment stack deployed on production infrastructure — Firebase App Hosting, Firestore, CI/CD, custom domain, SEP-0001 compliant stellar.toml. End-to-end XLM payments are confirmed on-chain and verifiable on Stellar Horizon. Now running on Stellar Mainnet. Payments settle against the live public ledger at merchant account GBXEISJ7QAWSS6Z4MSHYGCVOLKTAV6GAHYNOYUOST2HYUDOSRDCNGDLD. Verified TX: 7190d78f.

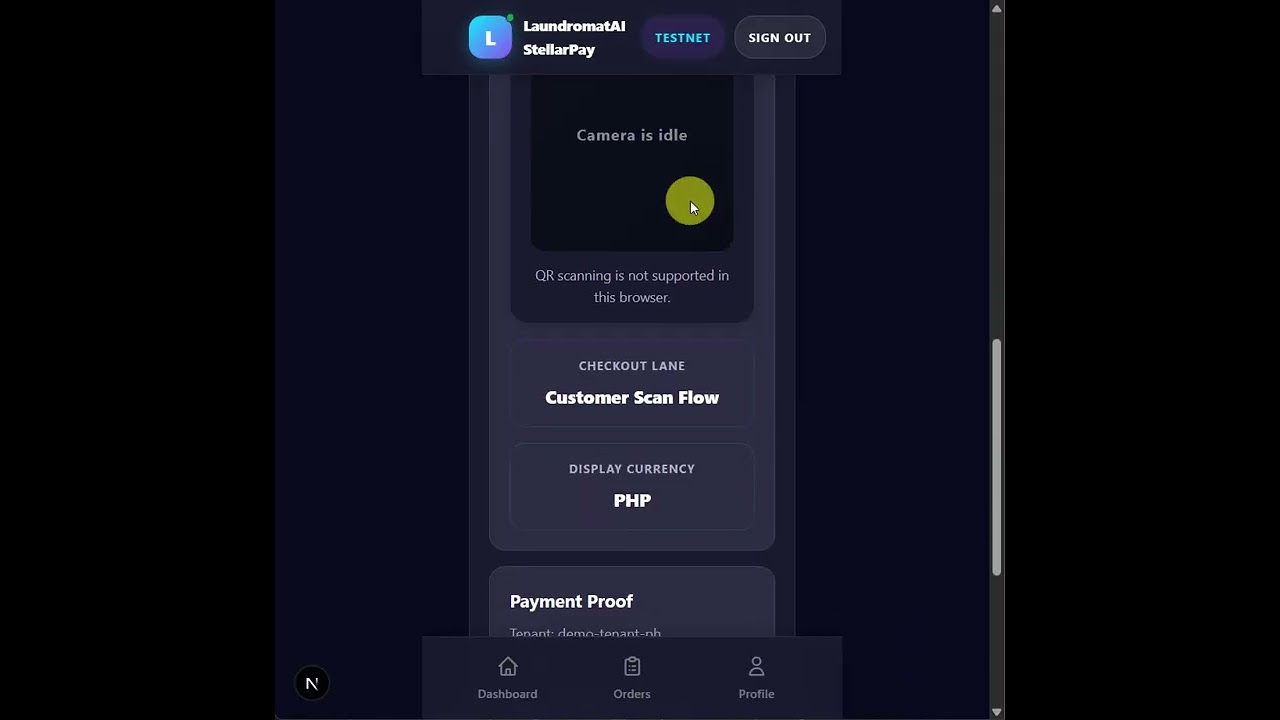

Demo Video

Full end-to-end walkthrough: SaaS order → customer checkout → Stellar payment confirmation → receipt history.

Stellar-powered payments for laundry MSMEs. Real orders, on-chain confirmation, and receipt persistence — running on production infrastructure with verifiable Horizon transactions. Try the live demo →

LaundromatAI x StellarPay connects tenant-scoped order visibility, identity-backed customer access, Stellar ledger verification, and receipt history into one fast, auditable checkout flow — built for frontline operations in the Philippines and Southeast Asia.

Soroban Smart Contract (Mainnet Logging + Registry)

PaymentRegistry — on-chain payment logging and registry for MSME order payments.

Contract ID	CANEW7EC3W6BMVDJQNRDVTUZZ32QWIY5LNOEGWPVRWYF7LEJUUWEYWKB
Network	Stellar Mainnet
Source	contracts/payment-registry/src/lib.rs

Registry functions used in production:

• record(order_id, amount_stroops, payer, tx_hash, network) -> bool — writes a confirmed payment record (idempotent)
• get(order_id) -> Option<PaymentRecord> — reads a payment by order key (for example PAY-LPX0034)
• count() -> u32 — total registry entries stored on-chain

Mainnet logging proof (already recorded):

• record("PAY-LPX0039", ...) succeeded on mainnet
• record("PAY-LPX0034", ...) succeeded on mainnet
• Registry count() returned 2 after these writes

Verification endpoints:

• https://stellar.laundromatai.app/api/contract/verify?orderId=LPX0034
• https://stellar.laundromatai.app/api/contract/verify?orderId=PAY-LPX0034

Explorer links:

• Stellar Expert — Mainnet Contract
• Stellar Lab — Mainnet Contract

Open this screenshot source link

Stellar Explorer Accounts

• Testnet account: stellar.expert/testnet
• Mainnet merchant account: stellar.expert/public — GBXEISJ7
• Mainnet demo customer account: stellar.expert/public — GBDZXAJC

Quick Entry Points

• Quick demo script: docs/demo-script.md
• Architecture overview: docs/architecture.md
• Hiring manager one-pager: docs/hiring-manager.md
• Case study: docs/case-study.md

Visual Preview

Screenshots

Below are sample UI screens from the StellarPay (LaundromatAI x StellarPay) production app:

Login Screen	Dashboard	Orders
Profile	Checkout	QR Capture
Stellar Ledger	Ledger History	QR Verified
Ledger Confirmation	Mainnet Payment History	Mainnet Order Success

Why Stellar?

For MSME operators in the Philippines and SEA, traditional payment rails create three hard problems:

Problem	Stellar's Answer
Settlement speed	Transactions confirmed in under 5 seconds, 24/7/365 — no bank windows, no batch delays
Cost	Fractions of a US penny per transaction — viable for ₱50–₱500 laundry orders
Auditability	Every payment is on-chain and immutable — eliminates screenshot disputes between staff and customers
Cross-border readiness	Built-in anchor ecosystem enables PHP ↔ USDC and remittance flows without rewiring the payment layer
No chargebacks	Finality is real — confirmed means confirmed, no reversal risk for merchants

For an MSME commerce platform, Stellar is the only rail that is simultaneously fast enough for counter operations, cheap enough for micro-transactions, and auditable enough for dispute resolution.

Business Outcomes

• Faster customer checkout: mobile-first payment flow reduces friction at the counter.
• Better trust: status transitions, ledger references, and receipt history make payment outcomes clear.
• Safer operations: tenant-scoped order resolution and auth-gated routes reduce ambiguity in demo and pilot use.
• Better demo readiness: the app is designed to show an end-to-end customer payment journey, not just isolated screens.

Roadmap

Phase	Timeline	Focus
Phase 1	Now	Single-branch demo, Soroban on-chain payment verification
Phase 2	Q3 2026	Multi-branch dashboard sync, USDC anchor integration
Phase 3	Q4 2026	Soroban escrow for franchise multi-party settlement
Phase 4	2027	Full SEA rollout: Indonesia, Malaysia, Vietnam

The Soroban contract layer is designed to evolve — from payment audit log today, to multi-party escrow and franchise royalty splits as the product moves to mainnet.

What This Repository Demonstrates

Area	What it demonstrates
Customer checkout	Guided order-to-payment experience with scan, pay, confirmation, and receipt history
Tenant isolation	Customer data and order flow scoped to the demo tenant demo-tenant-ph
Identity-backed access	Firebase customer sign-in gate before sensitive payment actions
Payment proof	Confirmation polling, transaction references, timeline state, and receipt persistence
Operational resilience	Demo/live fallback order loading, runtime hardening, service worker safeguards
Deployment discipline	Firebase App Hosting rollout model with smoke-test automation and production verification

Architecture Flow

flowchart LR
	A[Customer Sign-In] --> B[Tenant-Scoped Orders]
	B --> C[Checkout Intent Creation]
	C --> D[Stellar Payment Request]
	D --> E[Payment Status Polling]
	E --> F[Confirmed Receipt History]
	E --> G[Support and Audit Visibility]

Loading

Read Path By Audience

• Recruiter or judge, 2-3 minutes:

  • Start with this README
  • Then read docs/demo-script.md
  • Then read docs/case-study.md
  • Then read docs/showcase.md
  • Then use docs/judge-pitch-script.md

• Engineering manager, 5-8 minutes:

  • Start with docs/hiring-manager.md
  • Then read docs/architecture.md
  • Then review docs/project-index-map.md
  • Then read docs/all-features.md
  • Then read docs/resume.md

• Architect, CTO, or technical reviewer, 10-15 minutes:

  • Start with docs/architecture.md
  • Then read docs/interview-walkthrough.md
  • Then review docs/stellar-hackathon-execution-plan.md
  • Then read docs/customer-oauth-flow.md
  • Then review docs/nextjs-migration.md

Product Walkthrough

60-Second Demo Path

1. Open the customer app.
2. Sign in and show tenant-scoped orders.
3. Open an unpaid order and show the PHP amount.
4. Verify the merchant QR and trigger PAY NOW.
5. Show the payment transition from pending to confirmed.
6. Open History and show the saved receipt.

Judge-Facing Proof Points

• Tenant-scoped customer flow tied to demo-tenant-ph
• Identity-backed customer session before payment actions
• PHP pricing and customer-facing payment messaging
• Payment confirmation timeline and receipt persistence
• Hosted deployment on Firebase App Hosting

Repository Structure

Primary App Routes

• src/app/page.tsx - customer dashboard
• src/app/orders/page.tsx - orders list and action lane
• src/app/pay/[orderId]/page.tsx - checkout and payment proof flow
• src/app/history/page.tsx - payment receipts and history
• src/app/profile/page.tsx - customer profile and recent transaction context

Supporting Modules

• src/components/QRScanner.tsx - merchant QR verification flow
• src/components/AddToHomeScreenBanner.tsx - install prompt UX
• src/lib/customerAuth.tsx - customer auth provider
• src/lib/clientDemoOrders.ts - tenant-scoped order resolution and fallback
• src/lib/receiptStore.ts - receipt persistence
• server/utils/stellar.ts - Stellar request, confirmation, and Soroban contract helpers
• contracts/payment-registry/src/lib.rs - Soroban PaymentRegistry smart contract

Documentation Map

• docs/showcase.md - one-page project showcase
• docs/demo-script.md - 60-second and 3-minute demo walkthrough
• docs/case-study.md - engineering case study narrative
• docs/hiring-manager.md - hiring manager one-pager
• docs/architecture.md - system architecture overview
• docs/interview-walkthrough.md - interview-ready walkthrough guide
• docs/project-index-map.md - route and module ownership map
• docs/all-features.md - active feature inventory
• docs/resume.md - state cursor, verification notes, and session ledger
• docs/stellar-hackathon-execution-plan.md - execution plan and win condition
• docs/judge-pitch-script.md - judge-facing walkthrough script
• docs/hackathon-questionnaires.md - copy/paste submission answers for hackathon forms
• docs/customer-oauth-flow.md - auth flow notes
• docs/win-sprint-readiness.md - delivery readiness notes

Security and Governance Direction

• Customer routes are auth-gated before sensitive actions
• Payment flow remains tenant-scoped to demo customer context
• Receipt history provides transaction proof visibility after confirmation
• Deployment verification and smoke checks are treated as part of delivery quality

This repository is intended to be a professional public showcase. It should help reviewers understand engineering judgment, payment-flow reliability concerns, and customer experience design without requiring a full internal system walkthrough.

Current Status

• App Hosting deployment is active
• Core customer flows are operational
• Runtime and asset stability hardening has been applied
• Payment UX and mobile tap reliability have been actively refined
• Local build verification is passing

Known Limits

• Local-to-production parity is not yet perfect because auth and data behavior differ by environment
• Demo flow is intentionally scoped to demo-tenant-ph
• Some flows still prioritize demo reliability over full production generalization
