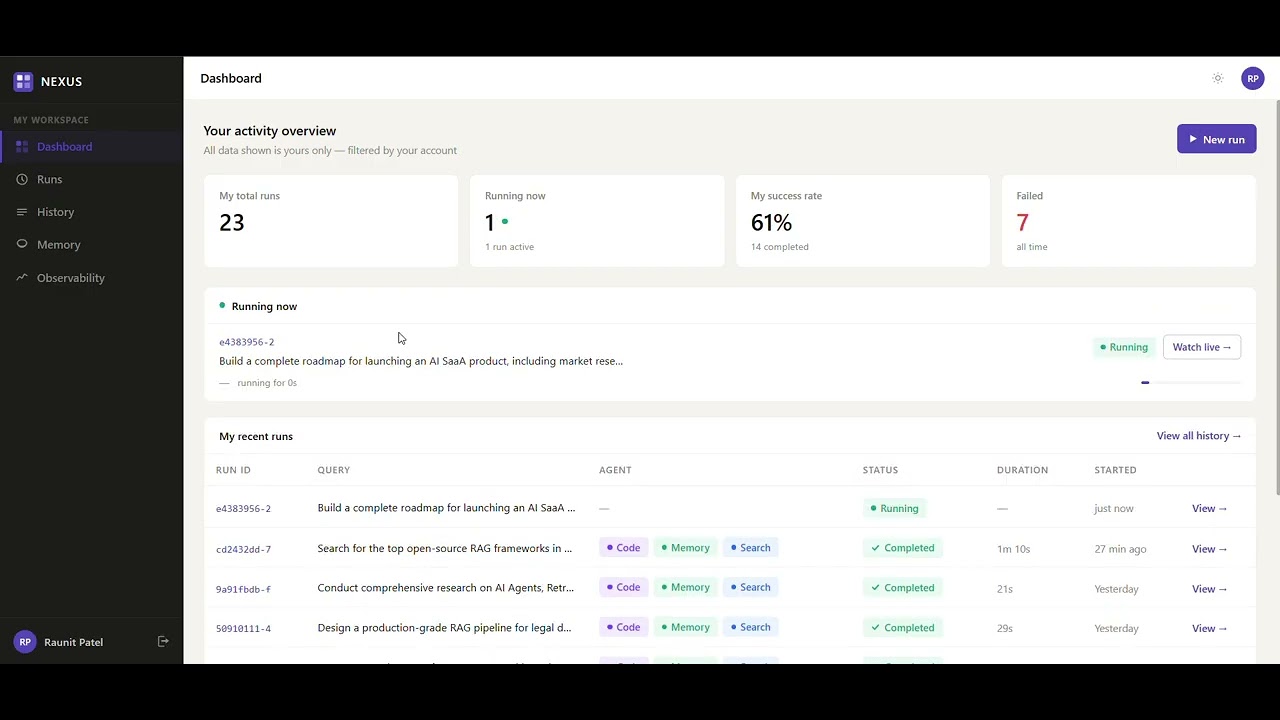

NEXUS lets users submit a natural-language query and watch in real time as specialized AI agents — Search, Code, Memory, and Tool — collaborate to answer it. A LangGraph-powered Orchestrator decomposes the query, dispatches tasks, and synthesizes a final answer while streaming every thought to the browser via SSE.
graph TB
subgraph Browser
FE[Next.js 14<br/>App Router]
end
subgraph NGINX["NGINX :8080"]
NX[Reverse Proxy]
end
subgraph Gateway["API Gateway :8000"]
GW_AUTH[Auth Middleware<br/>JWT + Redis session]
GW_RL[Rate Limit<br/>60 req/min]
GW_RUNS["/api/v1/runs"]
GW_SSE["/api/v1/sse"]
GW_MEM["/api/v1/memory"]
GW_METRICS["/api/v1/metrics"]
end
subgraph Orchestrator["Orchestrator :8001"]
GRAPH[LangGraph<br/>StateGraph]
subgraph Nodes
DQ[decompose_query]
VP[validate_plan]
DT[dispatch_next_task]
AR[await_task_result]
RR[record_result]
SO[synthesize_output]
FR[finalize_run]
HE[handle_error]
end
SSE_EMIT[sse_emitter.py<br/>Redis pub/sub]
end
subgraph AgentServices["Agent Services"]
SA[Search Agent :8002<br/>Tavily/Mock]
CA[Code Agent :8003<br/>Python sandbox]
MA[Memory Agent :8004<br/>sentence-transformers]
TA[Tool Agent :8005<br/>calc/weather/wiki]
end
subgraph Infra
PG[(PostgreSQL 15<br/>+pgvector)]
RD[(Redis 7<br/>sessions · rate-limit · SSE)]
KF[[Kafka<br/>nexus.events]]
JG[Jaeger<br/>Traces]
PR[Prometheus<br/>Metrics]
end
FE -->|HTTP/SSE| NX
NX -->|/api/*| GW_AUTH
GW_AUTH --> GW_RL --> GW_RUNS
GW_RUNS -->|POST /orchestrate| GRAPH
GW_SSE -->|httpx stream| SSE_EMIT
GRAPH --> DQ --> VP --> DT
DT -->|HTTP POST /run| SA
DT -->|HTTP POST /run| CA
DT -->|HTTP POST /run| MA
DT -->|HTTP POST /run| TA
DT --> AR --> RR --> SO --> FR
FR -->|UPDATE runs| PG
DQ & VP & DT & RR & SO & FR -->|emit_event| RD
SSE_EMIT -->|subscribe| RD
GW_AUTH -->|session check| RD
GW_RUNS -->|INSERT/SELECT| PG
MA -->|INSERT vector| PG
Nodes -->|Kafka events| KF
Gateway -->|OTLP spans| JG
Orchestrator -->|OTLP spans| JG
Gateway -->|/metrics| PR
Orchestrator -->|/metrics| PR
For a detailed prose description of each component, see docs/architecture.md.
The learning branch keeps the full distributed application topology:
- API Gateway (
services/gateway/) — authentication, rate limiting, routing, SSE proxy - Orchestrator (
services/orchestrator/) — LangGraph state machine and run lifecycle coordination - Search Agent (
services/search_agent/) — web/search research - Code Agent (
services/code_agent/) — Python generation and sandbox execution - Memory Agent (
services/memory_agent/) — embeddings and pgvector retrieval - Tool Agent (
services/tool_agent/) — calculator, weather, and Wikipedia tools
The Orchestrator calls each agent over HTTP from nodes/dispatch_next_task.py, which keeps service boundaries visible for learning, testing, tracing, and failure-mode exploration.
| Layer | Technology |
|---|---|
| Frontend | Next.js 14 App Router, TypeScript, TailwindCSS, SWR, Recharts |
| API Gateway | FastAPI 0.111, Python 3.11, asyncpg, SQLAlchemy 2.0 async |
| Orchestration | LangGraph 0.1, Anthropic Claude claude-sonnet-4-20250514 |
| Search Agent | Tavily API (mock fallback), Redis LLM cache |
| Code Agent | asyncio subprocess sandbox, Claude tool use |
| Memory Agent | sentence-transformers all-MiniLM-L6-v2, pgvector cosine ANN |
| Tool Agent | Claude function calling → calculator / open-meteo / Wikipedia |
| Database | PostgreSQL 15 + pgvector extension |
| Cache / Sessions | Redis 7 |
| Streaming | Server-Sent Events, Redis pub/sub |
| Message Queue | Apache Kafka (Confluent), aiokafka |
| Observability | OpenTelemetry + Jaeger, structlog JSON, Prometheus |
| Infrastructure | Docker Compose v2, NGINX reverse proxy |
| Deployment | Railway (backend), Vercel (frontend) |
Prerequisites: Docker Desktop 4.25+, Python 3.11 (pyenv), Node 20 (nvm), PowerShell 7 (Windows)
git clone https://github.com/<your-handle>/nexus.git
cd nexus
Copy-Item .env.example .env
# Edit .env: set POSTGRES_PASSWORD, REDIS_PASSWORD, ANTHROPIC_API_KEY (or GEMINI_API_KEY), JWT_SECRET_KEY
notepad .env.\scripts\start-infra.ps1Starts PostgreSQL, Redis, Kafka, Zookeeper, NGINX, Jaeger, and Prometheus. Waits for all health checks to pass and creates Kafka topics.
Copy-Item db\.env.example db\.env
# Edit db\.env: set DATABASE_URL_LOCAL=postgresql+asyncpg://nexus:<password>@localhost:5434/nexus_db
notepad db\.env
.\scripts\seed-db.ps1Inserts 10 users, 4 agent definitions, 50 runs, and 200 tasks.
.\scripts\start-all-services.ps1Builds and starts the Gateway (port 8000), Orchestrator (port 8001), Search Agent (port 8002), Code Agent (port 8003), Memory Agent (port 8004), and Tool Agent (port 8005).
cd frontend
Copy-Item .env.local.example .env.local
npm install
npm run devOpen http://localhost:3000. Register an account, submit a query, watch the thought trace.
| ADR | Decision |
|---|---|
| ADR-001 | LangGraph over CrewAI for agent orchestration |
| ADR-002 | pgvector over Pinecone for vector storage |
| ADR-003 | SSE over WebSockets for real-time streaming |
| ADR-004 | Kafka topic design (3 topics, partition strategy) |
| ADR-005 | Railway/Vercel deployment notes for the learning topology |
nexus/
├── services/
│ ├── gateway/ # API Gateway (FastAPI)
│ ├── orchestrator/ # LangGraph Orchestrator (FastAPI)
│ ├── search_agent/ # Search Agent service
│ ├── code_agent/ # Code Agent service
│ ├── memory_agent/ # Memory Agent service
│ ├── tool_agent/ # Tool Agent service
│ └── shared/ # Shared Python modules (logging, metrics, kafka)
├── frontend/ # Next.js 14 App Router
├── db/ # PostgreSQL schema, migrations, seed script
├── infra/ # NGINX, Kafka, Prometheus configs
├── docs/
│ ├── architecture.md
│ └── decisions/ # ADR-001 through ADR-005
└── scripts/ # PowerShell automation (Windows)
.\scripts\test-all.ps1Runs: infrastructure integration tests, DB schema tests (pytest-asyncio), gateway unit tests, orchestrator node unit tests.
MIT — see LICENSE.
