Open security scanner and self-hosted control plane for AI/MCP infrastructure.

Headless agent primitives and human cockpit surfaces over the same evidence model.

Docs · First Run · Self-host · GitHub Action · Docker · Changelog

agent-bom scans local and fleet AI infrastructure, builds an AI BOM across agents, MCP servers, tools, packages, credential environment names, cloud, runtime, and skills, then turns that inventory into findings, compliance evidence, and graph-backed exposure paths.

The same evidence is available through CLI/CI, REST API, MCP tools, and a self-hosted dashboard. Runtime proxy/gateway controls are optional and scoped to environments where enforcement is worth the operational cost.

package
  -> vulnerability finding
  -> MCP server
  -> tools + credential refs
  -> agent

Blast radius is the core idea. A vulnerable package is not just a CVE row; it is linked to the MCP server that loads it, the tools exposed by that server, the credential environment names in reach, and the agents that can call it.

First Run

pip install agent-bom
agent-bom quickstart --dry-run --offline   # print the onboarding plan
agent-bom quickstart --run --offline        # write sample, scan, seed gateway policy, populate the cockpit
agent-bom agents --demo --offline

The demo uses real OSV/GHSA advisories against intentionally vulnerable sample packages and produces graph-ready inventory without touching your source tree. For a real local scan:

agent-bom agents -p . -f html -o agent-bom-report.html

Want an inspectable sample stack first?

agent-bom samples first-run
agent-bom agents --inventory agent-bom-first-run/inventory.json -p agent-bom-first-run --enrich

See docs/FIRST_RUN.md for the guided path from CLI output to the dashboard.

To reproduce the dashboard screenshots from a clean local control-plane store:

make build-ui
uv run agent-bom serve --persist /tmp/agent-bom-demo.db --allow-insecure-no-auth
uv run agent-bom agents --demo --offline --no-auto-update-db -f json -o /tmp/agent-bom-demo.json
curl -sS -H 'content-type: application/json' --data-binary @/tmp/agent-bom-demo.json \
  http://127.0.0.1:8422/v1/results/push

Product Proof

The dashboard screenshots below are captured from the packaged UI with bundled demo scan data and seeded control-plane records, not static mockups. The data is synthetic where needed, but the routes are the real scan, graph, fleet, identity, audit, and gateway surfaces. The README keeps the first screen focused; expand the gallery when you want to inspect the control-plane surfaces.

Evidence cockpit and agent mesh

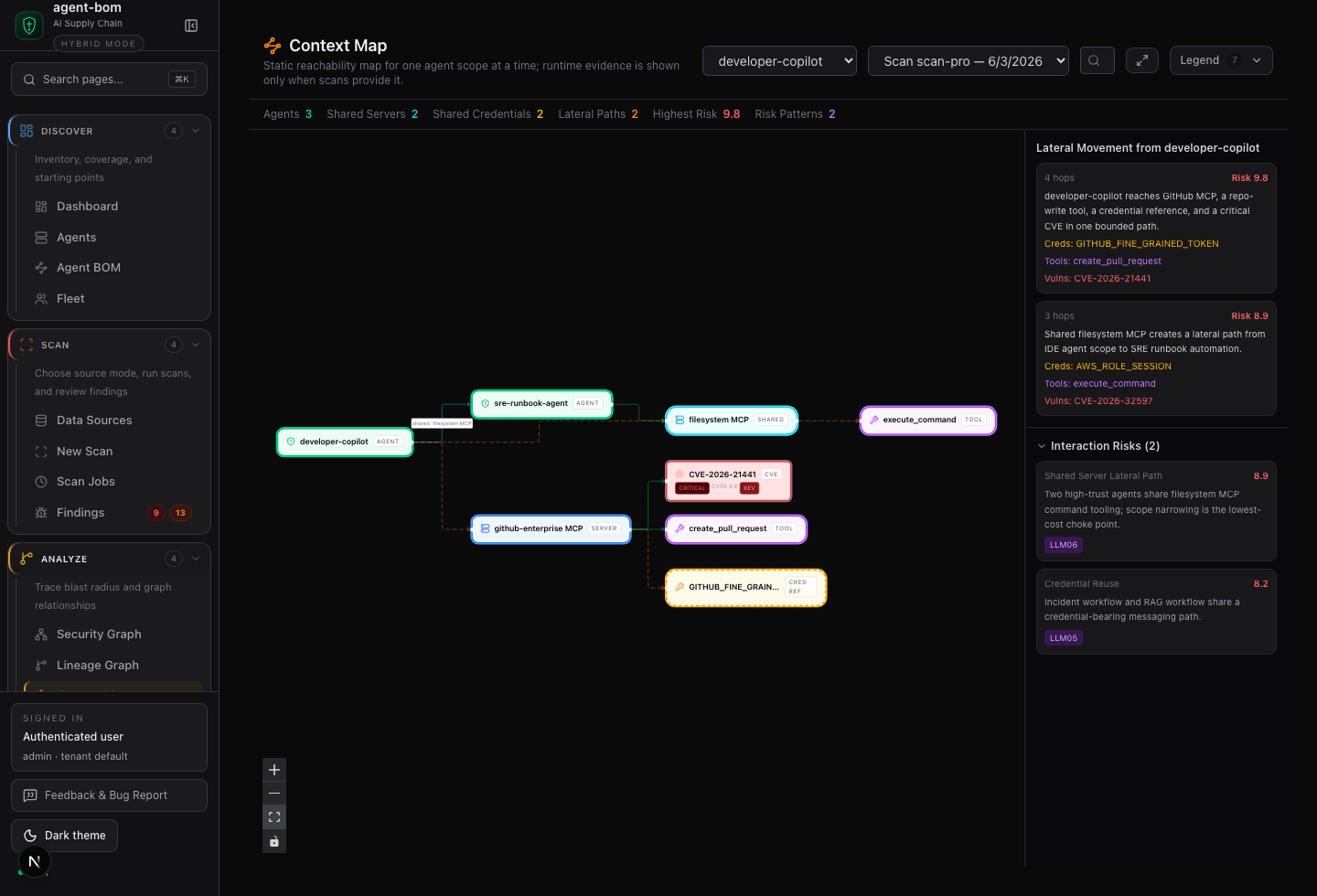

Graph views beyond the agent mesh

The graph proof set is intentionally split across modes: fix-first exposure paths, root-centered lineage, lateral context, and package risk distribution. That keeps each view readable instead of forcing every relationship into one sprawling canvas.

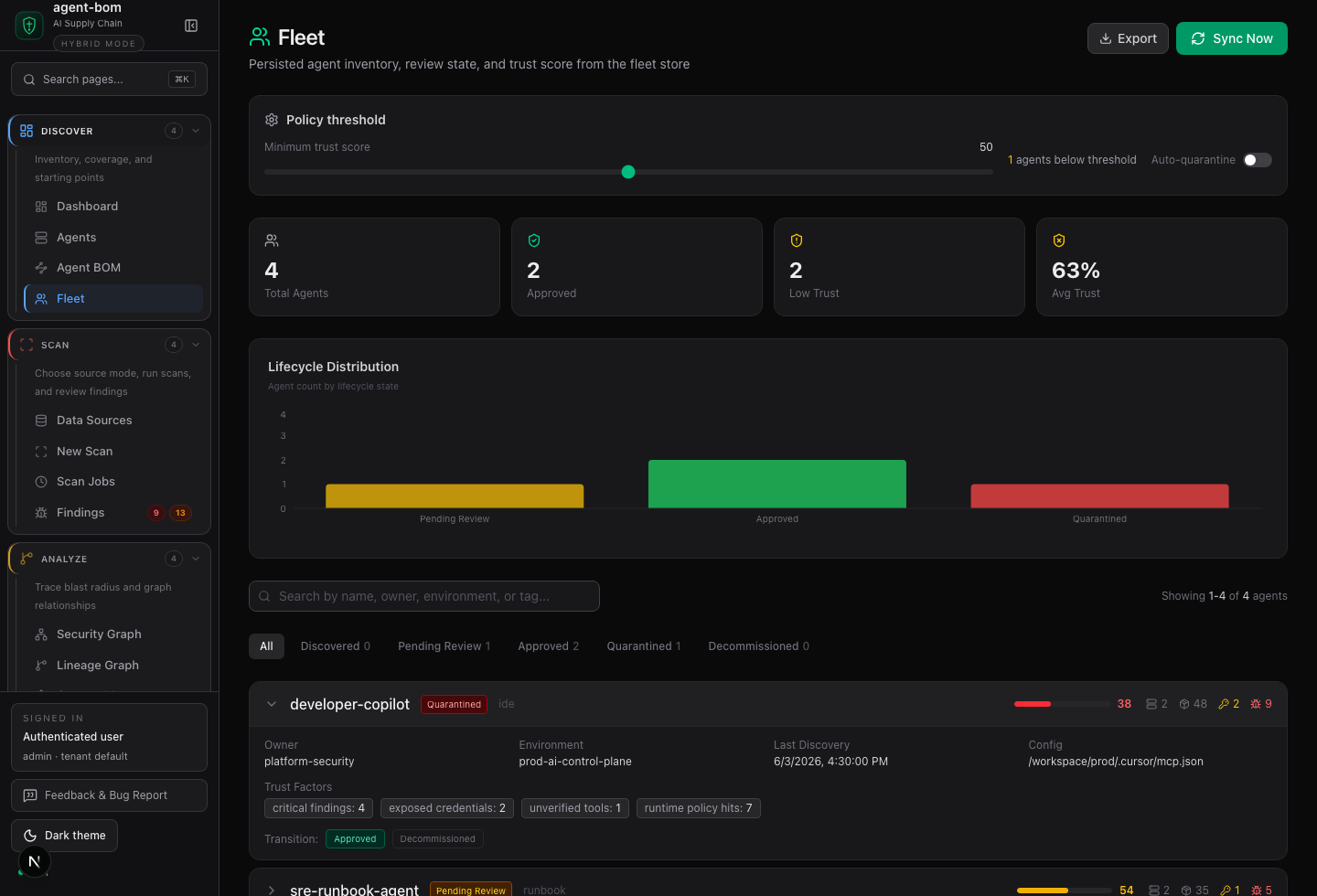

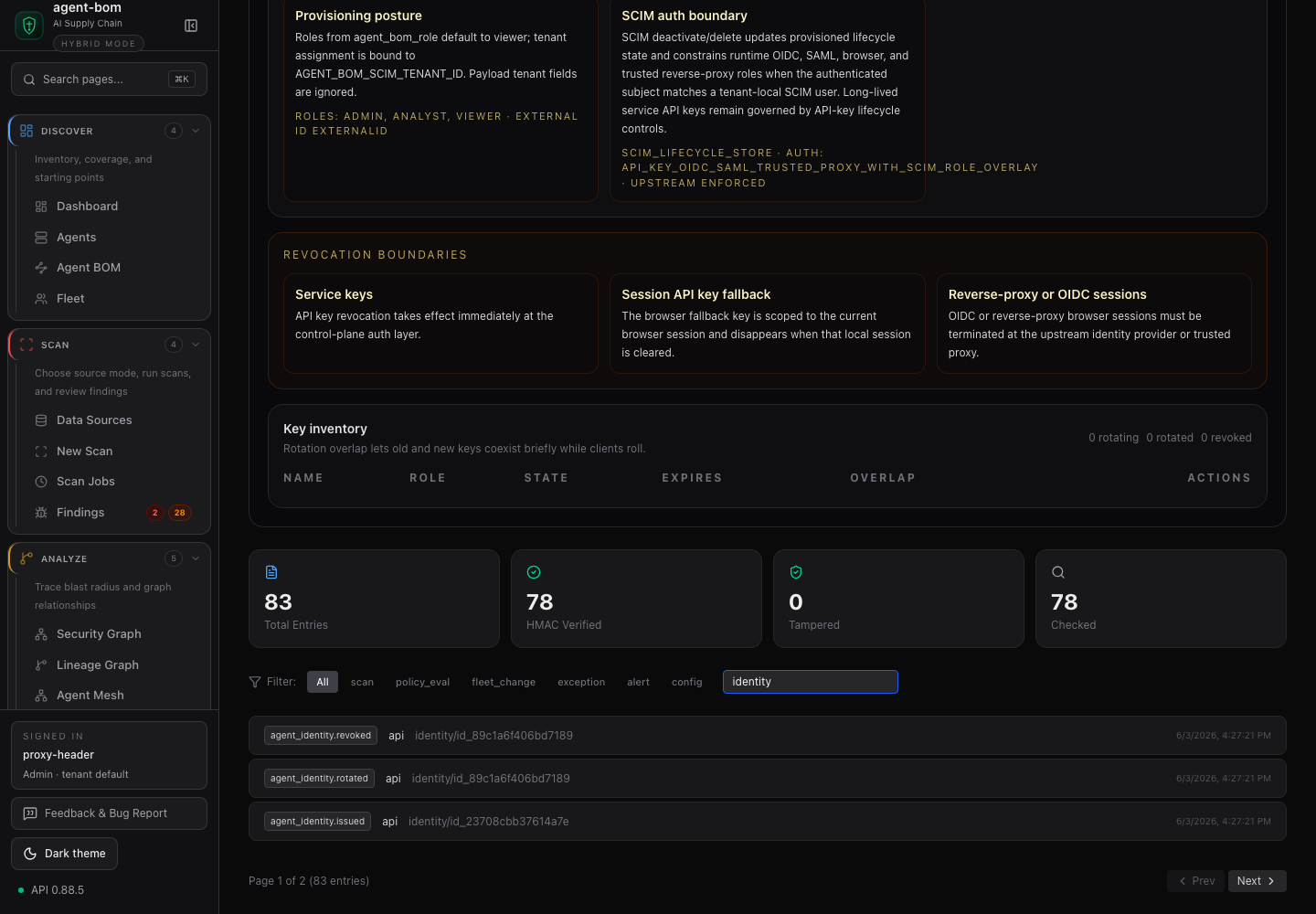

Environment state and identity lifecycle

Fleet and identity views use the same control-plane APIs that operators use for customer-owned deployments. The sample below seeds environment, owner, lifecycle state, and agent identity events so the screenshots show how local scan evidence connects to reviewable governance records.

Dependency and remediation views

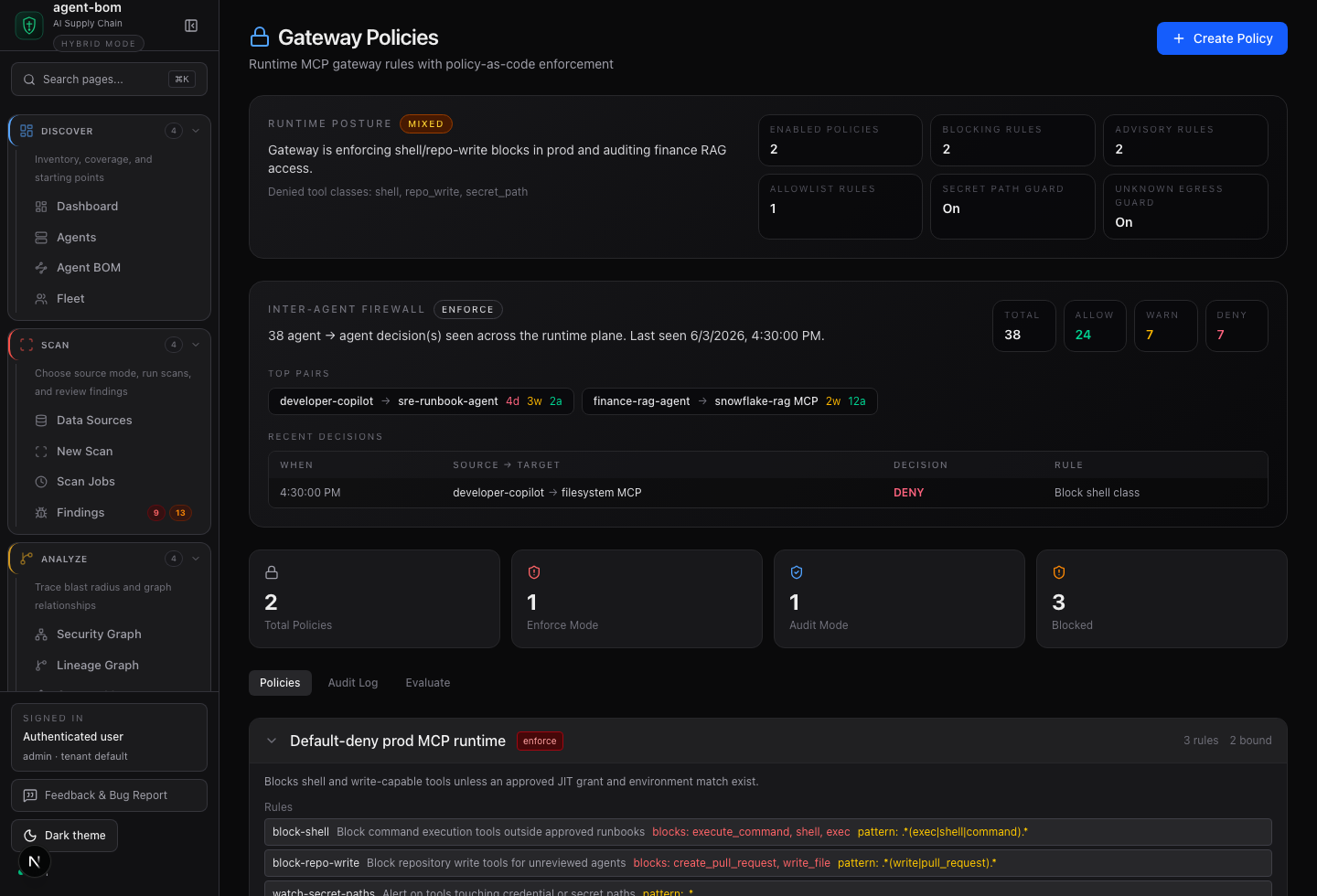

Runtime policy and audit posture

Screenshot capture rules and the full manifest live in docs/CAPTURE.md and docs/images/product-screenshots.json.

Start Here

Goal	Command	Artifact
Local agent and MCP inventory	agent-bom agents	findings, AI BOM, graph-ready JSON
Guided local onboarding	agent-bom quickstart --dry-run --offline	scan, sample-data, and local API/UI next steps
One-command onboarding	agent-bom quickstart --run --offline	writes sample, runs a graph-persisting scan, seeds a baseline gateway policy
Repo and lockfile scan	agent-bom agents -p .	package findings, SARIF/SBOM/HTML when requested
Pre-install guard	agent-bom check flask@2.0.0 --ecosystem pypi	deterministic allow/warn/block result
Container image scan	agent-bom image nginx:latest	image findings and remediation
IaC scan	agent-bom iac Dockerfile k8s/ infra/main.tf	IaC findings and policy context
Cloud posture check	agent-bom cis-benchmark --provider aws	runtime CIS posture evidence
CI gate	uses: msaad00/agent-bom@v0.88.6	SARIF, PR summary, optional code-scanning upload
MCP tools	pip install 'agent-bom[mcp-server]' && agent-bom mcp server	strict-args security tools for MCP clients
Local API/UI	pip install 'agent-bom[ui]' && agent-bom serve	API plus bundled dashboard
First-run extras	pip install 'agent-bom[all]'	supported onboarding extras; MLflow remains separately installed
Self-hosted pilot	docker compose -f docker-compose.pilot.yml up -d	API and dashboard in your environment

The base wheel is the scanner and CLI path. Optional runtime surfaces fail fast with install hints when their extras are missing.

MCP registry publishing is tracked through the committed Smithery manifest and other registry metadata; install and liveness checks stay in the linked integration docs instead of this front door.

Shipped Surfaces

Surface	Primary user	Current boundary
CLI / CI	developers and release gates	local scans, SARIF/SBOM/HTML/JSON, deterministic exit codes
REST API	control-plane integrations	scans, bulk findings, dataset versions, evaluation runs, graph evidence, audit, runtime summaries
MCP tools	agents and assistants	strict arguments, read-mostly security queries, exposure paths, deploy decisions, audited Shield actions
Dashboard	security teams and operators	inventory, findings, graph cockpit, compliance, evidence, runtime posture
Runtime proxy/gateway	runtime operators	scoped MCP traffic inspection, policy decisions, redacted audit evidence
Python client	services, notebooks, and automation	typed helper for stable REST endpoints in the packaged wheel
TypeScript client	services and agent runtimes	typed helper for stable REST endpoints

MCP server mode advertises 63 MCP tools, 6 resources, and 6 workflow prompts. Most tools are read-only. The three Shield write actions fail closed unless the caller supplies operator_role=admin, operator_scopes=shield:write, and an audit reason.

CLI scan commands run local scan pipelines today. They share lower scanner and discovery libraries with the API, but they are not API wrappers yet.

Runtime enforcement is explicit. Proxy mode either wraps a target MCP server for audit and policy decisions, or runs that server through Docker/Podman isolation when a sandbox image is supplied:

agent-bom proxy --no-isolate --policy policy.json --detect-credentials --block-undeclared -- npx @mcp/server-github
agent-bom proxy --sandbox-image ghcr.io/acme/mcp-runtime@sha256:<digest> \
  --sandbox-image-pin-policy enforce --block-undeclared -- npx @mcp/server-postgres

Deploy In Your Boundary

agent-bom is designed for customer-controlled deployment: local CLI, Docker, GitHub Action, Helm, EKS, Postgres, and optional runtime proxy/gateway.

curl -fsSL https://raw.githubusercontent.com/msaad00/agent-bom/main/deploy/docker-compose.pilot.yml -o docker-compose.pilot.yml
docker compose -f docker-compose.pilot.yml up -d
# Dashboard -> http://localhost:3000

Production self-hosting starts with the deployment chooser:

• Deployment overview
• Helm chart
• EKS reference installer
• Docker Hub image

There is no managed cloud offering in this repository today. Product lane boundaries are documented in docs/PRODUCT_BOUNDARIES.md.

Trust Model

• Read-only discovery by default for cloud and local inventory.
• No mandatory telemetry.
• Credential values are redacted; credential environment names are preserved as evidence so exposure paths stay explainable.
• Findings can export as JSON, SARIF, CycloneDX, SPDX, Markdown, HTML, and compliance evidence bundles.
• API and runtime paths are designed for tenant scope, auth boundaries, and audit evidence.
• OpenAPI artifacts are committed for SDK and client contract checks.

Security and release references:

• Threat model
• Pentest readiness
• Python API and control-plane client
• Go control-plane client
• Product metrics
• Release verification
• GitHub Action

Product Views

The docs site carries the deployment-oriented walkthroughs behind those screenshots:

• Dashboard and graph capture protocol
• Documentation site
• Deployment overview

Contributing

Contributions are welcome. Start with:

• CONTRIBUTING.md
• .agents/AGENTS.md
• Open issues

License: Apache-2.0.
