Upgrade drag-out to a native drag session with real multi-file payloads - #97

Open
alvst wants to merge 1 commit into
momenbasel:mainfrom
alvst:alvie/pr-drag-clips-out
Open

Upgrade drag-out to a native drag session with real multi-file payloads#97
alvst wants to merge 1 commit into
momenbasel:mainfrom
alvst:alvie/pr-drag-clips-out

Conversation

@alvst

@alvst alvst commented Aug 23, 2026

Copy link
Copy Markdown
Contributor

Follow-up to #73, which added drag-out via SwiftUI's .onDrag. That API hands over a single payload and gives the bar no visibility into where the drag actually is, which caps what drag-out can do. This swaps in a native NSDraggingSession and fixes the capture-side gap underneath it.

What changed

  • ClipDragSource replaces .onDrag for every clip type. Tracking the drag's position on screen is what lets the bar stay open while a drag is still hovering over it — dragging onto a Pinboard tab, for instance — and only get out of the way once the drag has genuinely left the bar's window for whatever is underneath.
  • ClipDragProvider builds the pasteboard payload per clip type: one file URL per item for multi-file .file clips, so they drag out as that many items, matching Finder's own multi-selection hand-off. Everything else (text, rich text, links, colors, images) is a single NSPasteboardItem built directly rather than through NSItemProvider, which isn't NSPasteboardWriting-conformant outside SwiftUI's private .onDrag bridging.
  • Capture now records every file in a multi-file copy, not just the first. Some sources put each copied file in its own pasteboard item; others only fill the legacy NSFilenamesPboardType array and leave a single URL item behind. The monitor reads both and keeps whichever list is longer.

Screenshots

Before:
00-baseline screenshots bar.png

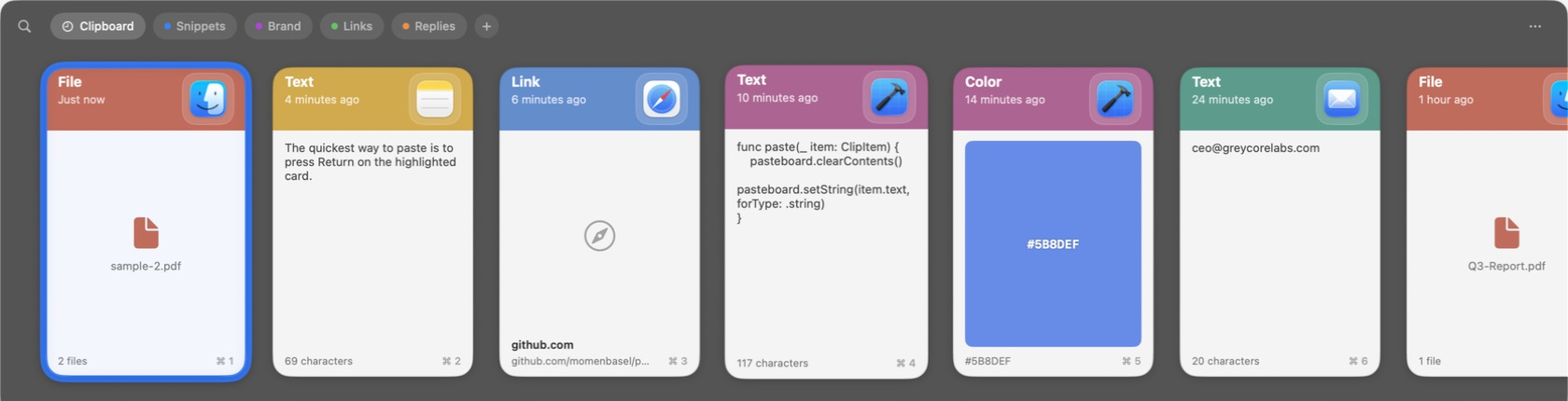

After:
16-drag-clips-out screenshots after.png

The capture half has no visual delta — it changes what a multi-file clip records, not how it draws. Its effect is only observable as the drag above producing several files instead of one.

Notes for review

  • The capture change is what makes the rest testable, not scope creep: a clip that only ever recorded one file could never drag out as several, so the multi-item hand-off had nothing to exercise it. Copying three files in Finder and dragging the clip out now produces three files.
  • Verified intact after the switch away from .onDrag: multi-select taps still reproduce, right-click/context menu still works, and VoiceOver actions are unaffected (accessibility actions don't route through the overlay's hitTest).
  • No dependencies; merges in any order.

This feature should be bundled into v2.

Part of #80.

Adds a native NSDraggingSession-based drag source (ClipDragSource) used
for every clip type, replacing SwiftUI's .onDrag - a single-payload API
with no visibility into where the drag actually is on screen. Tracking
that position is what lets the bar stay open while a drag is still
hovering over it (e.g. onto a Pinboard tab) and only drop once the drag
has genuinely left the bar's window for whatever's underneath.

ClipDragProvider builds the pasteboard payload per clip type: one file
URL per item for multi-file .file clips (dragging out as that many
items, matching Finder's own multi-selection hand-off), or a single
NSPasteboardItem for everything else (text, rich text, links, colors,
images) built directly rather than through NSItemProvider, since
NSItemProvider isn't NSPasteboardWriting-conformant outside of
SwiftUI's private .onDrag bridging.

Capture now records every file in a multi-file copy, not just the first.
Some sources put each copied file in its own pasteboard item while others
only fill the legacy NSFilenamesPboardType array and leave a single URL
item behind, so the monitor reads both and keeps whichever list is
longer. Without that half, a clip that only ever recorded one file could
never drag out as several, and the multi-item hand-off above would have
nothing to exercise it.
