PolyTrade

Multi-Platform Algorithmic Trading System for Prediction Markets

PolyTrade is a full-stack algorithmic trading platform that prices, monitors, and market-makes on Polymarket crypto binary options using live implied volatility from Deribit and spot prices from Binance. A separate research layer ingests historical trade data into SQLite + DuckDB for calibration analysis, mispricing detection, and market scoring.

Project Goal

PolyTrade is an algorithmic trading system for prediction markets. It targets Polymarket crypto binary options via a Black-Scholes fair-value approach, and is architected to extend cleanly to Kalshi, PredictIt, and any future platform.

Platform	Market Types	Status
Polymarket	Crypto binary options, event markets	Implemented
Kalshi	Political, economic, event markets	Planned
PredictIt	Political markets	Planned

Capability	Description
Market Discovery	Scans and categorises tradeable markets across platforms
Fair Value Pricing	Black-Scholes for crypto options, statistical scoring for event markets
Market Making	Quotes bid/ask spread with gamma/inventory adjustments
Risk Management	Live Greeks monitoring, portfolio limits, per-market kill switch
Safety Monitoring	Staleness checks, gap detection, orderbook depth gating
Order Execution	Places, tracks, and cancels orders via platform CLOB API
Research Engine	DuckDB + SQLite analysis layer for mispricing detection and backtesting
Data Persistence	Two-layer database: live trading DB (SQLite v2) + research DB (SQLite)

System Architecture

+==============================================================================+
|                           POLYTRADE SYSTEM                                   |
+==============================================================================+
|                                                                              |
|  EXTERNAL DATA SOURCES          TRADING PLATFORMS           MARKET DATA      |
|  +------------------------+     +------------------+        +-------------+ |
|  |  Binance WebSocket     |     |  Polymarket CLOB |        |  Parquet /  | |
|  |  (Spot prices)         |     |  API + CLOB WS   |        |  DuckDB     | |
|  |  BTC / ETH tick        |     |  (orders, fills) |        |  research   | |
|  +----------+-------------+     +---------+--------+        |  data sets  | |
|             |                             |                  +------+------+ |
|  +----------+-----------+                |                         |        |
|  |  Deribit WebSocket   |                |                         |        |
|  |  (Implied vol, IV)   |                |                         |        |
|  +----------+-----------+                |                         |        |
|             |                            |                         |        |
|  -----------+----------------------------+-------------------------+------   |
|                        ABSTRACTION LAYER                                     |
|  +------------------+  +------------------+  +----------------------------+ |
|  |  DataSource      |  |  TradingPlatform |  |  PricingStrategy          | |
|  |  Interface       |  |  Interface       |  |  Interface                | |
|  +--------+---------+  +--------+---------+  +-------------+-------------+ |
|           |                     |                           |               |
|  ---------+---------------------+---------------------------+-----------    |
|                           CORE SERVICES                                      |
|  +-----------+  +------------------+  +--------------------------------+    |
|  | ServiceReg|  | TradingService   |  | MarketPricingWirer             |    |
|  | per-crypto|  | circuit breaker  |  | wires markets to BS pricing    |    |
|  | SafetyMon |  | retry, valid.    |  | + Greeks live                  |    |
|  +-----------+  +------------------+  +--------------------------------+    |
|                                                                              |
|  +------------------------------------------------------------------------+ |
|  |                        MARKET MAKER (2 s tick)                         | |
|  |  +-----------+  +------------+  +---------------+  +---------------+  | |
|  |  | Strategy  |  | RiskManager|  | SafetyMonitor |  | InventoryTrk  |  | |
|  |  | (QP spread|  | (Greeks    |  | (staleness,   |  | (skew adj.)   |  | |
|  |  |  formula) |  |  limits)   |  |  gap detect)  |  |               |  | |
|  |  +-----------+  +------------+  +---------------+  +---------------+  | |
|  +------------------------------------------------------------------------+ |
|                                                                              |
|  +------------------------------------------------------------------------+ |
|  |                        DATABASE LAYER                                   | |
|  |  Trading DB (SQLite v2, WAL)          Research DB (SQLite + DuckDB)    | |
|  |  platforms / markets / outcomes /     markets / trades / analysis /    | |
|  |  positions / trades / data_points /   mispricing_signals / scores      | |
|  |  pricing_snapshots / portfolio_risk   Parquet via DuckDB views         | |
|  |  / events (event sourcing audit)                                        | |
|  +------------------------------------------------------------------------+ |
|                                                                              |
|  +------------------------------+    +----------------------------------+    |
|  |  REST + WebSocket API        |    |  React UI (Vite, port 5173)     |    |
|  |  Express server (port 3002)  |----|  Dashboard / Research / Orders  |    |
|  |  Zod input validation        |    |  Greeks / Safety / SQL explorer |    |
|  +------------------------------+    +----------------------------------+    |
+==============================================================================+

Data Flow: Live Pricing

Binance WS (tick) --> BinancePriceListener --> ServiceRegistry.updateSpot()
Deribit WS (iv)  --> DeribitListener       --> ServiceRegistry.updateIV()
                                                       |
                                              SafetyMonitor.isSafeToQuote()
                                                       |
                                        MarketPricingWirer.onDataUpdate()
                                                       |
                                        BlackScholesStrategy.calculate()
                                                       |
                                        PricingSnapshot --> MarketMaker.tick()
                                                       |
                                      Strategy.generateQuote()  (QP spread)
                                                       |
                                      ClobClient.placeOrder() --> Polymarket

Data Flow: Research

Parquet files (polymarket_markets, polymarket_trades, kalshi_*)
       |
       v
DuckDB in-memory views  <--  ParquetQueryService (SQL query engine)
       |
LiveDataIngester --------->  ResearchDatabase (Research.db SQLite)
       |                      markets / trades / analysis_cache /
       |                      mispricing_signals / research_positions
       v
AnalysisEngine
  +-- calculateWinRateByPrice()    -> win rate calibration (longshot bias)
  +-- detectMispricingSignals()    -> fair value vs market price delta
  +-- scoreLiquidMarkets()         -> liquidity + spread scoring
  +-- generateResearchReport()     -> combined scoring output

       |
       v
     UI: MispricingScanner / WinRateChart / MarketScoresPanel / SqlQueryPanel

UI Walkthrough

The React dashboard (Vite, port 5173) is organized into two top-level tabs: Trading Dashboard and Research. The Trading Dashboard further subdivides into Trading, Markets, and Discovery sub-views.

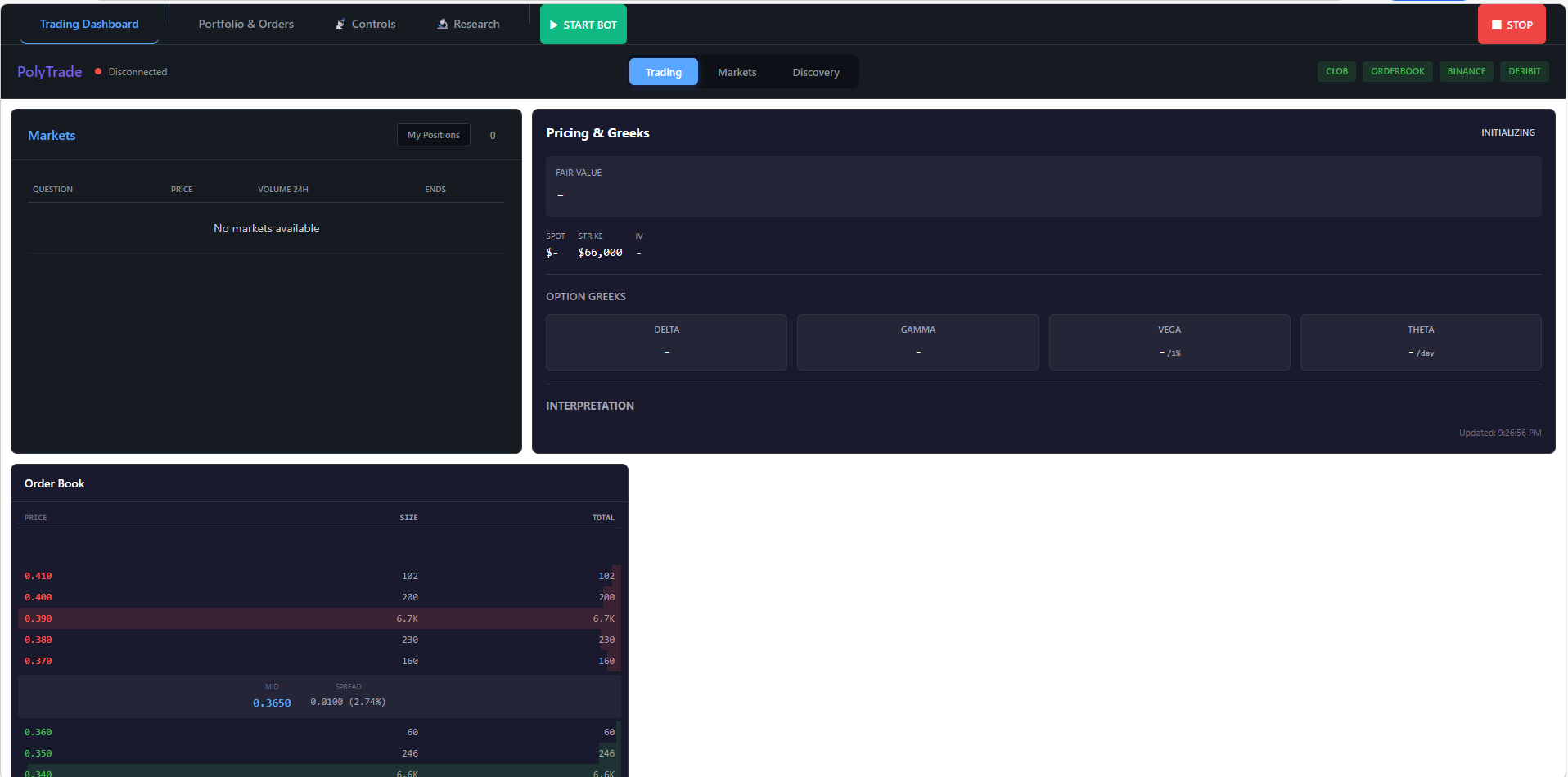

1. Trading Dashboard

The primary operational view. Split into three panels:

Left — Markets Panel

Displays all markets currently wired for live pricing. Each row shows:

Column	Description
Question	Market title (e.g., "Will BTC close above $68,000?")
Price	Current mid-market price from the Polymarket CLOB
Volume 24h	24-hour trading volume in USD
Ends	UTC expiry timestamp

The My Positions button filters the list to only markets where you hold an open position. When no markets are wired, the panel shows No markets available.

Right — Pricing & Greeks Panel

Shows the Black-Scholes derived fair value and option Greeks for the selected market:

Field	Description
Fair Value	`N(d2)` — the risk-neutral probability that the market resolves YES
Spot	Live BTC or ETH price from Binance WebSocket
Strike	Binary option strike price from market metadata
IV	Deribit mark implied volatility (annualised %)
Delta	∂V/∂S — sensitivity to a $1 move in spot
Gamma	∂²V/∂S² — rate of change of delta
Vega	∂V/∂σ — sensitivity per 1% IV move
Theta	∂V/∂t — daily time decay in contract value

The panel shows INITIALIZING while the backend is connecting to Deribit/Binance. Once both feeds are live, fair values update in real time.

The Interpretation bar at the bottom renders a human-readable summary (e.g., "OTM call, mild negative edge vs. market").

Bottom — Order Book Panel

Live bid/ask ladder fetched from the Polymarket CLOB. Red rows are asks (offers to sell), blue/white rows are bids. The MID and SPREAD (shown as a percentage) are computed from best bid and best ask.

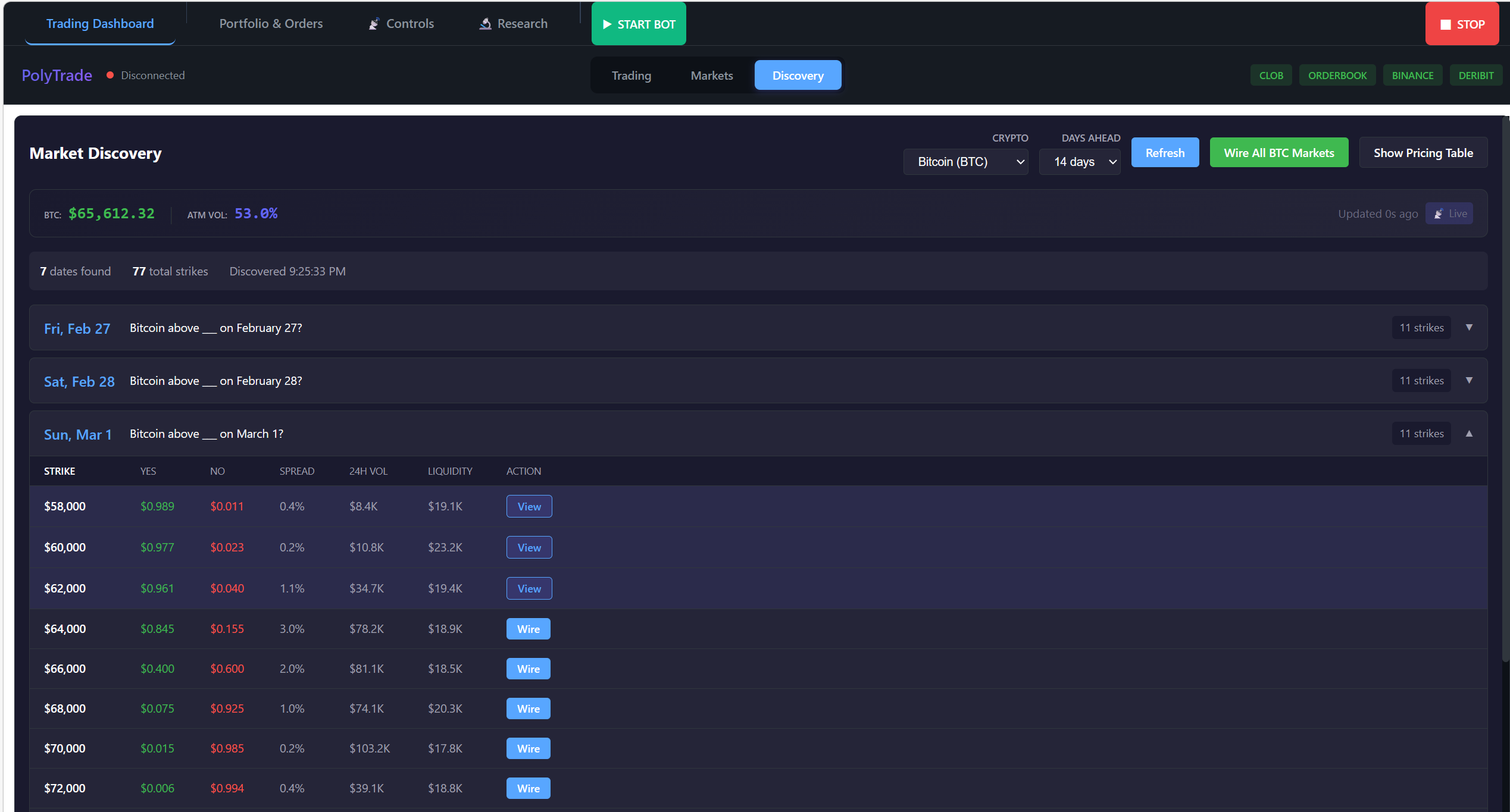

2. Market Discovery

The Discovery sub-view scans for available Polymarket markets matching the selected crypto asset and date range.

Controls Bar

Control	Description
Crypto	Select `Bitcoin (BTC)` or `Ethereum (ETH)`
Days Ahead	How far forward to scan (7 / 14 / 30 days)
Refresh	Re-queries Polymarket Gamma API for new markets
Wire All BTC Markets	Wires every discovered market for live pricing in one click
Show Pricing Table / Show Discovery	Toggle between the strike grid and the live pricing table

The live spot price and ATM implied vol are shown in the header bar (e.g., BTC: $65,612.32 | ATM VOL: 53.0%) with a freshness indicator.

Strike Grid

Markets are grouped by expiry date. Expanding a date reveals one row per strike:

Column	Description
Strike	Dollar strike (e.g., $66,000)
YES	Current YES bid (green) — probability market resolves YES
NO	Current NO ask (red) — complement: `1 − YES`
Spread	Bid-ask spread as a percentage of mid
24H Vol	24-hour volume in USD
Liquidity	Best-level depth (total size × price)
Action	View (deep OTM) or Wire (near ATM, wirable for MM)

Markets deep out-of-the-money (near $66,000 when spot is $65,600) display a Wire button because fair value divergence is meaningful there. Extremely deep OTM/ITM markets show View instead — the spread exceeds any realistic edge.

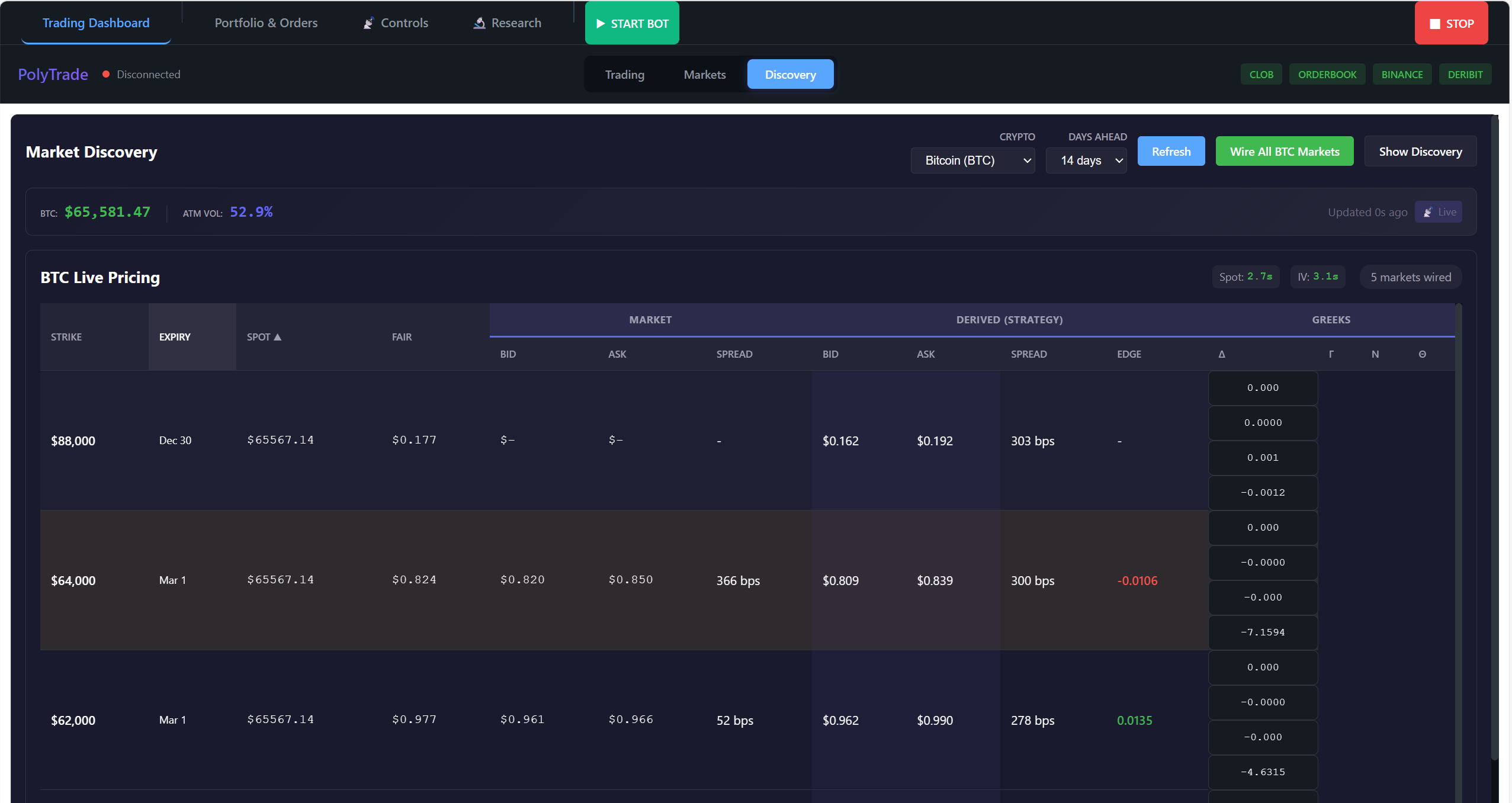

3. Pricing Table

The BTC Live Pricing table (accessed via "Show Pricing Table") compares market prices vs. derived (Black-Scholes) prices side-by-side for every wired market.

Column Group	Description
Strike / Expiry / Spot	Market parameters. Spot updates live from Binance.
Fair	Black-Scholes `N(d2)` fair value
Market	Live CLOB bid, ask, and spread in basis points
Derived (Strategy)	MM's quoted bid/ask, spread, and computed Edge (fair − market mid). Green = positive edge, red = negative.
Greeks (Δ, Γ, N, Θ)	Per-contract delta, gamma, vega, theta

The top-right shows Spot staleness and IV staleness in seconds — these turn red when feeds go stale, which would trigger the SafetyMonitor to halt quoting.

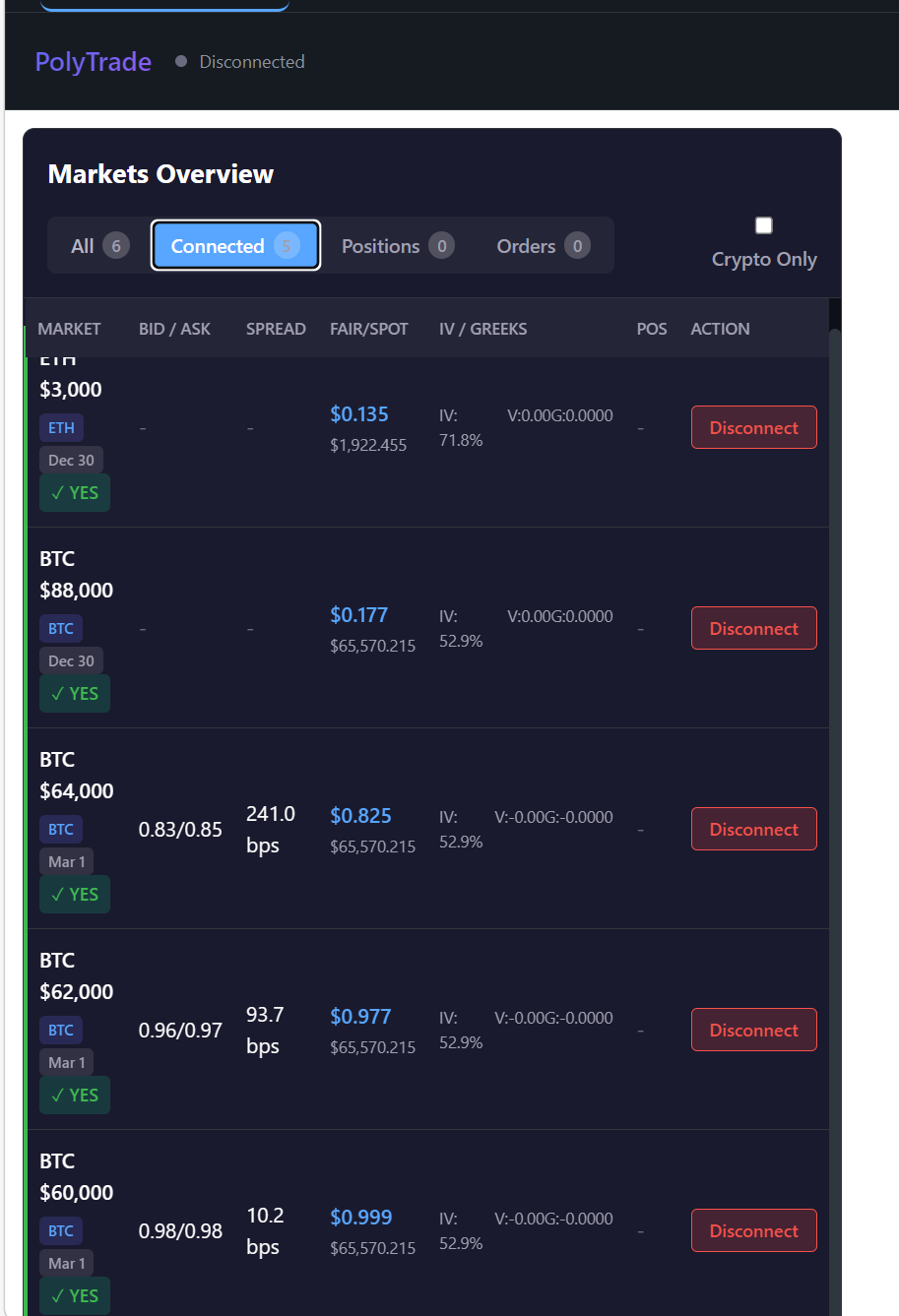

4. Markets Overview

The Markets sub-view gives a compact status panel for all known markets, with four filter tabs:

Tab	Shows
All	Every market in the local market registry
Connected	Markets with live CLOB WebSocket subscriptions
Positions	Markets where you hold an open position
Orders	Markets with at least one open order

The Crypto Only checkbox hides event markets and shows only BTC/ETH binary options.

Each market card shows:

Asset + Strike + Direction badge (e.g., BTC · $64,000 · YES)
Expiry badge (e.g., Mar 1)
Bid / Ask from CLOB (or — if no live quote)
Spread in basis points
Fair / Spot — Black-Scholes fair value and current spot price
IV — Deribit implied vol driving the pricing
Greeks summary — V:0.00 G:0.0000 (vega / gamma)
Disconnect button — removes the market from live pricing

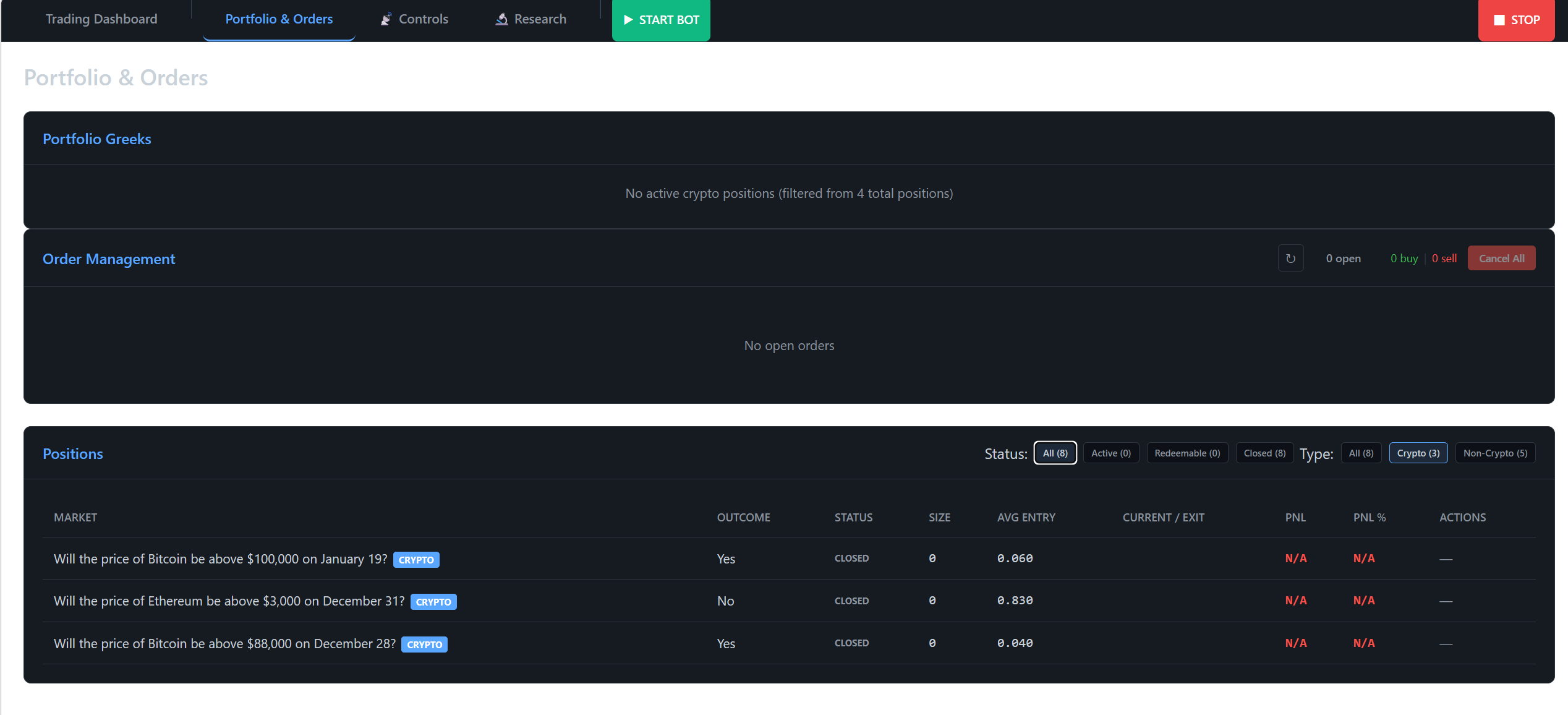

5. Portfolio & Orders

The Portfolio & Orders top-level tab is the position management hub.

Portfolio Greeks

Aggregates option Greeks across all active crypto positions:

Metric	Description
Net Delta	Directional BTC/ETH exposure
Net Gamma	Convexity — accelerates delta on large spot moves
Net Vega	IV sensitivity
Net Theta	Daily time decay cost

Shows No active crypto positions (filtered from N total positions) when all positions are closed. This tells you positions exist in the DB but none currently qualify for Greek aggregation.

Order Management

Live order book for your account on Polymarket. Shows counts of open buy and open sell resting orders. Cancel All cancels every open order in one click.

Individual order rows show: market question, side, size, limit price, time-in-force, and a cancel button.

Positions Table

Full position history with Status and Type filters:

Column	Description
Market	Market question with category badge (`CRYPTO`, `POLITICS`, etc.)
Outcome	YES or NO
Status	ACTIVE (open) / CLOSED (resolved) / REDEEMABLE (won, claimable)
Size	Current position size
Avg Entry	Average fill price
Current / Exit	Current market price (if active) or exit price (if resolved)
PnL	Realised profit/loss in USD
PnL %	Return on capital

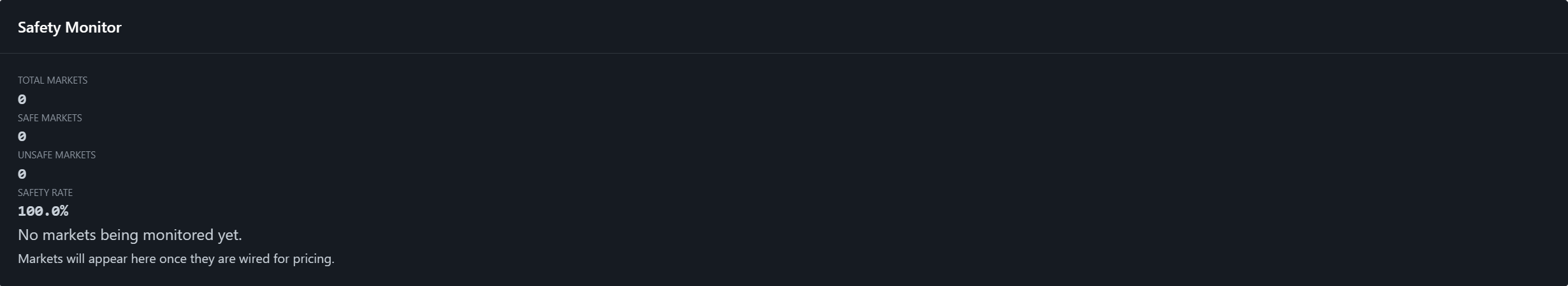

6. Safety Monitor

The Safety Monitor panel (in the Controls tab) provides a real-time health dashboard for all wired markets.

Metric	Description
Total Markets	Markets currently under safety supervision
Safe Markets	Markets where all checks pass — quotes are being generated
Unsafe Markets	Markets blocked from quoting due to a failed check
Safety Rate	`Safe / Total × 100%`

The system performs the following checks before generating any quote:

Check	Threshold	Effect on Failure
Spot price staleness	> 5,000 ms	Halts all markets for that crypto
IV staleness	> 30,000 ms	Halts all markets for that crypto
Spot price gap (per tick)	> 2%	Halts all markets for that crypto
Orderbook staleness	> 10,000 ms	Skips this market only
Orderbook depth	Configurable	Skips this market only

No markets being monitored yet. Markets will appear here once they are wired for pricing. is the initial state before any markets are wired via the Discovery tab.

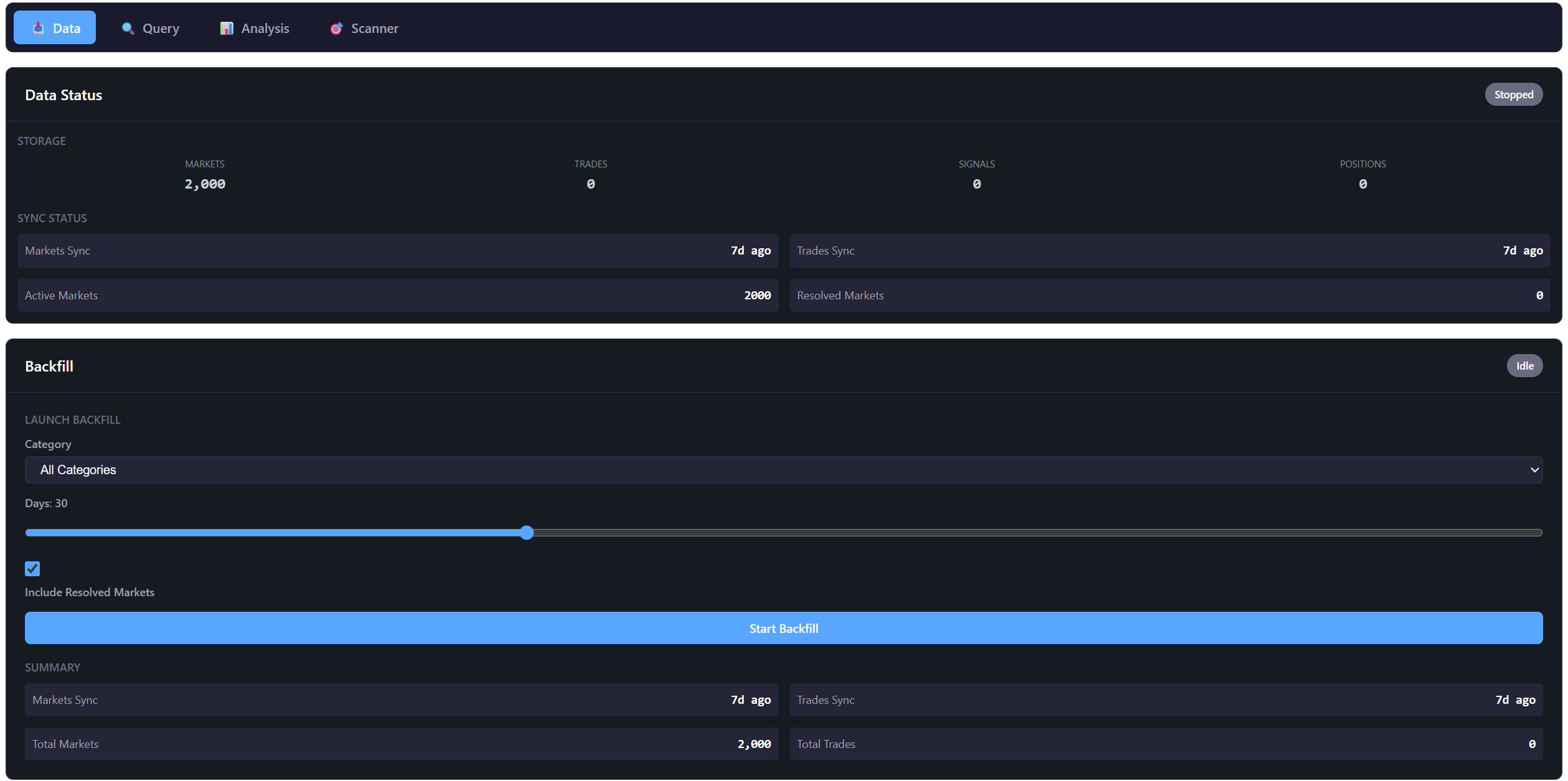

7. Research — Data

The Research top-level tab is the data pipeline and analysis hub. It has four sub-tabs: Data, Query, Analysis, and Scanner.

Data Status Panel (top)

Metric	Description
Markets	Records in `research_markets` SQLite table
Trades	Records in `research_trades` (can be millions)
Signals	Active mispricing signals detected by `AnalysisEngine`
Positions	Open research positions in the paper-trading tracker

Sync Status shows when each sync last ran and counts of Active / Resolved markets. The Stopped badge turns green when the background ingester is active.

Backfill Panel (bottom)

Controls for pulling historical data into the research DB:

Control	Description
Category	Filter markets to sync: All, Crypto, Politics, Sports, Finance, etc.
Days	Lookback window slider (1–90 days). Default 30d.
Include Resolved Markets	Toggle to pull closed/resolved markets (required for calibration)
Start Backfill	Fires `POST /api/research/ingest`

How backfill works internally:

Gamma API queried for markets matching the category
For each market, Data API paginated (500 trades/page, newest-first)
Trades inserted with INSERT OR IGNORE via UNIQUE INDEX (condition_id, asset, timestamp, price)
After ingestion, AnalysisEngine runs calibration and scoring automatically

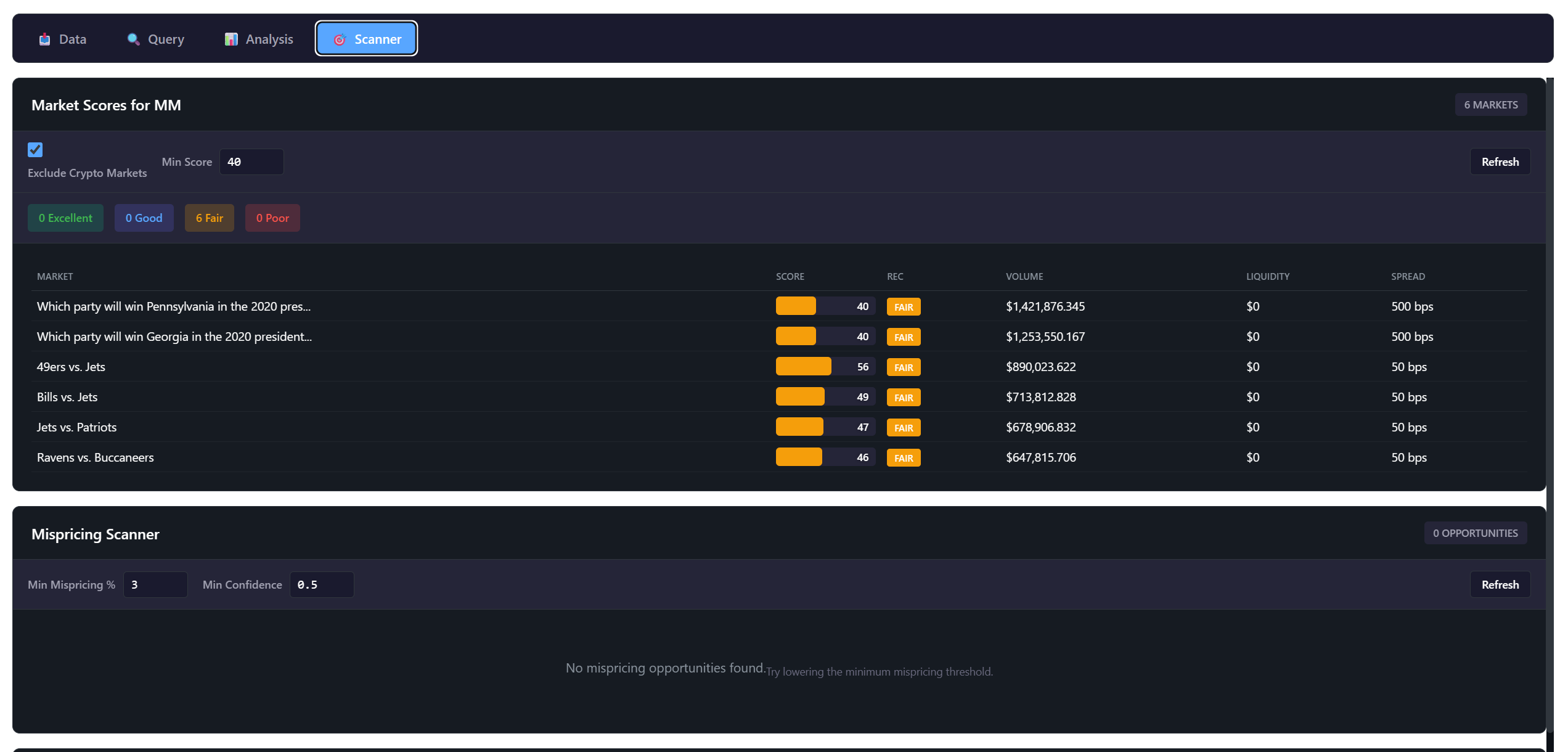

8. Research — Scanner

The Scanner sub-tab surfaces actionable opportunities from the research database.

Market Scores for MM

Ranks all markets by composite market-making suitability score (0–100):

Score Range	Recommendation	Meaning
80–100	EXCELLENT	Ideal for market making
60–79	GOOD	Strong candidate
40–59	FAIR	Worth monitoring
< 40	POOR	Insufficient liquidity/volume

Controls:

Exclude Crypto Markets — hide BTC/ETH options (already priced via Black-Scholes)
Min Score — filter threshold (default 40)

Each row shows: market question, score bar, recommendation badge, volume, liquidity, and spread.

The score is computed from:

Liquidity — tight relative spread (lower spread → higher score)
Volume — log-rank vs. all tracked markets over 7 days
Spread stability — spread variance over time

Mispricing Scanner

Finds active markets where the current price deviates materially from estimated fair value:

Control	Description
Min Mispricing %	Minimum estimated edge (default 3%)
Min Confidence	Minimum signal confidence 0–1 (default 0.5)

Each detected signal shows: direction (BUY YES / BUY NO), market question, market price vs. fair value, mispricing %, confidence score, and a reasoning string.

No mispricing opportunities found. Try lowering the minimum mispricing threshold. appears when no active markets exceed the threshold — common during low-volume periods or when the research DB needs a fresh backfill.

Codebase Structure

PolyTrade/
+-- server.ts                      # Express + WS API server
|                                  # Initialises all services, routes, WS push
+-- src/
|   +-- index.ts                   # Public library exports
|   |
|   +-- platforms/                 # Trading platform abstraction layer
|   |   +-- TradingPlatform.ts     # Core interface: connect, discoverMarkets,
|   |   |                          #   placeOrder, getPositions, getBalance
|   |   +-- polymarket/
|   |       +-- PolymarketPlatform.ts  # Polymarket implementation
|   |
|   +-- markets/
|   |   +-- MarketDefinition.ts    # Type-agnostic market (binary_price /
|   |                              #   binary_event / categorical / continuous)
|   |
|   +-- pricing/
|   |   +-- PricingStrategy.ts     # Strategy interface
|   |   +-- BinaryGreeksCalculator.ts  # Greeks: delta, gamma, vega, theta
|   |   +-- strategies/
|   |       +-- BlackScholesStrategy.ts    # N(d2) = risk-neutral prob
|   |       +-- StatisticalStrategy.ts     # Poll aggregation, base rates
|   |
|   +-- data/
|   |   +-- DataSource.ts          # Stream interface: start/stop/subscribe
|   |   +-- sources/
|   |       +-- BinanceDataSource.ts    # Spot price adapter
|   |       +-- DeribitDataSource.ts    # IV adapter
|   |
|   +-- db/
|   |   +-- Database.ts            # v1 DB (original BTC/ETH binary only)
|   |   +-- DatabaseV2.ts          # v2 DB (multi-platform, multi-type)
|   |   +-- schema_v2.sql          # Full schema
|   |   +-- migrate_v1_to_v2.ts    # v1 -> v2 migration script
|   |   +-- rollback_v2_to_v1.ts   # Rollback safety
|   |   +-- validate_migration.ts  # Post-migration data integrity checks
|   |
|   +-- services/
|   |   +-- TradingService.ts      # Facade: circuit breaker + validation
|   |   +-- MarketPricingWirer.ts  # Wires markets -> pricing -> Greeks live
|   |   +-- MarketSubscriptionManager.ts   # WS subscription lifecycle
|   |   +-- PortfolioGreeksAggregator.ts   # Aggregates Greeks across markets
|   |   +-- DiscoveryOrchestrator.ts       # Orchestrates market discovery
|   |   |
|   |   +-- binance/
|   |   |   +-- BinancePriceListener.ts    # WS + REST spot feed
|   |   |   +-- BinanceWsClient.ts         # Low-level WS client
|   |   |   +-- BinanceRequestor.ts        # REST API client
|   |   |
|   |   +-- deribit/
|   |   |   +-- DeribitListener.ts         # WS IV feed (mark_iv)
|   |   |   +-- DeribitRequestor.ts        # REST: tickers, instruments
|   |   |
|   |   +-- polymarket/
|   |   |   +-- ClobClient.ts              # Signed order submission (CLOB)
|   |   |   +-- DataApi.ts                 # REST: positions, orders
|   |   |   +-- MarketDiscoveryService.ts  # Find active crypto markets
|   |   |   +-- MarketPricingService.ts    # Per-market pricing snapshots
|   |   |   +-- OrderBook.ts               # Orderbook fetch + cache
|   |   |   +-- OrderManager.ts            # Place / cancel / track orders
|   |   |   +-- PositionTracker.ts         # Portfolio position tracker
|   |   |   +-- streaming/
|   |   |       +-- HybridStreamManager.ts # WS + REST fallback manager
|   |   |       +-- ConnectionPool.ts      # Pool of WS connections
|   |   |       +-- TickBuffer.ts          # Tick deduplication + ordering
|   |   |
|   |   +-- market-maker/
|   |       +-- MarketMaker.ts             # Main 2 s trading loop
|   |       +-- Strategy.ts               # QP spread (gamma + inventory)
|   |       +-- RiskManager.ts            # Greeks limit checks
|   |       +-- SafetyMonitor.ts          # Staleness + gap detection
|   |       +-- InventoryTracker.ts       # Net inventory per market
|   |
|   +-- research/
|   |   +-- AnalysisEngine.ts       # Win rate calibration, mispricing, scoring
|   |   +-- LiveDataIngester.ts     # Pulls live Polymarket data into Research.db
|   |   +-- ParquetQueryService.ts  # DuckDB SQL engine over Parquet datasets
|   |   +-- ResearchDatabase.ts     # Research.db schema + query methods
|   |
|   +-- lib/
|       +-- CircuitBreaker.ts       # CLOSED / OPEN / HALF_OPEN state machine
|       +-- ServiceRegistry.ts      # Per-crypto service health + safety
|       +-- auth/                   # HMAC signature for CLOB API
|       +-- config/                 # Zod-validated env schema + loader
|       +-- metrics/
|       |   +-- PerformanceMetrics.ts  # p95/p99 latency, success rates per feed
|       +-- rate-limit/             # Token bucket rate limiter
|       +-- retry/                  # Exponential backoff RetryHandler
|
+-- ui/                            # React dashboard (Vite, port 5173)
|   +-- src/
|       +-- components/
|           +-- TradingDashboard.tsx        # Live Greeks + pricing
|           +-- LivePricingTable.tsx        # All market fair values
|           +-- MarketMakerControls.tsx     # Start/stop MM, paper mode
|           +-- OrdersPanel.tsx             # Open orders
|           +-- PositionsPanel.tsx          # Current positions
|           +-- PortfolioGreeksPanel.tsx    # Aggregate Greeks
|           +-- SafetyMonitorPanel.tsx      # Per-market safety status
|           +-- RiskLimitsPanel.tsx         # Risk limit gauges
|           +-- StreamingStatusPanel.tsx    # WS / REST feed health
|           +-- SystemStatusPanel.tsx       # Service initialisation state
|           +-- research/
|               +-- ResearchPage.tsx        # Research hub
|               +-- MispricingScanner.tsx   # Detected mispricing signals
|               +-- WinRateChart.tsx        # Calibration (longshot bias)
|               +-- MarketScoresPanel.tsx   # Market scoring table
|               +-- SqlQueryPanel.tsx       # Live DuckDB SQL explorer
|               +-- BackfillPanel.tsx       # Data ingestion controls
|               +-- DataStatusPanel.tsx     # Research DB stats
|
+-- scripts/                        # PowerShell operational scripts
|   +-- start.ps1 / stop.ps1 / status.ps1
|   +-- run-tests.ps1 / seed-db.mjs
|
+-- prediction-market-data/         # Research data pipeline (Python)
|   +-- main.py                     # Entry: download + index Parquet data
|   +-- src/
|   |   +-- indexers/               # Polymarket + Kalshi data fetchers
|   |   +-- analysis/               # Python analysis modules
|   +-- data/
|       +-- polymarket/             # Parquet: markets, trades, positions
|       +-- kalshi/                 # Parquet: markets, trades
|
+-- test/          # Integration + unit tests
+-- docs/          # Architecture docs + screenshots
+-- package.json

Database Architecture

The system uses two separate databases with distinct responsibilities.

1. PolyTrade.db — Live Trading Database (SQLite v2, WAL Mode)

Operational database. Created automatically on first run and migrated from v1 if needed.

Core tables:

platforms
  id (PK)  display_name  api_config (JSON)  enabled

markets
  id (UUID)  platform_id (FK)  platform_market_id
  market_type  CHECK IN ('binary_price','binary_event','categorical','continuous')
  question  expires_at  closes_at  resolved_at
  resolved  resolution_outcome  active
  metadata (JSON)
    binary_price:  { "underlying":"BTC", "strike":66000, "direction":"above" }

market_outcomes
  id  market_id (FK)  outcome_name  platform_token_id
  current_price  last_trade_price

Trading tables:

positions
  id  platform_id  market_id (FK)  outcome_id (FK)
  quantity  average_price  opened_at  updated_at

trades  (immutable append-only)
  id  platform_id  market_id (FK)  outcome_id (FK)
  platform_order_id  side (BUY/SELL)  quantity  price
  trade_type (MAKER/TAKER/HEDGE)  fees  realized_pnl  executed_at

Data + pricing tables:

data_points  (time-series ring)
  id  source_id (FK)  symbol ('BTCUSDT','BTC_IV',...)
  value  metadata (JSON)  timestamp (unix ms)

pricing_snapshots  (audit trail)
  id  market_id (FK)  fair_price  confidence
  strategy_used ('black_scholes','statistical','ml','composite')
  inputs (JSON)  delta  gamma  vega  theta  timestamp

portfolio_risk  (time-series)
  id  platform_id  num_positions  num_markets
  total_delta  total_gamma  total_vega  total_theta  timestamp

Event sourcing (complete audit trail):

events
  id  event_type  aggregate_type  aggregate_id
  payload (JSON)  correlation_id  timestamp (unix ms)  sequence_number

  event_type examples:
    MARKET_DISCOVERED  TRADE_EXECUTED  PRICE_UPDATED
    RISK_LIMIT_BREACHED  ORDER_PLACED  ORDER_CANCELLED

CQRS read views:

View	Purpose
`v_active_markets`	Non-expired, non-resolved markets with counts
`v_portfolio_summary`	Aggregate positions per platform
`v_recent_trades`	Trades joined with market + outcome context

2. Research.db — Analysis & Research Database (SQLite + DuckDB)

Separate from the live trading DB. Never on the hot path.

research_markets       # Market metadata + resolution outcomes
research_trades        # Individual fills (deduped by UNIQUE INDEX)
analysis_cache         # Memoised analysis results with TTL
mispricing_signals     # Detected fair value vs. market price gaps
research_positions     # Paper trading position tracker
win_rate_cache         # Pre-computed calibration buckets
market_scores          # Composite per-market MM scores

DuckDB Parquet views (registered automatically on first query):

polymarket_markets — market definitions, volumes, prices, resolutions
polymarket_trades — CTF exchange fills (maker/taker, price, size)
polymarket_positions — wallet-level position snapshots
kalshi_markets — Kalshi event market data

Research System

Purpose

The research system answers: "Is any market mispriced, and by how much?"

Runs entirely separately from the live trading loop — zero impact on order execution latency.

Analysis Methods

1. Win Rate Calibration (Longshot Bias Detection)

Groups all resolved markets by price at close into 1-cent buckets:

expectedWinRate = price / 100
actualWinRate   = fraction resolved YES at that price
overconfidence  = actualWinRate − expectedWinRate

Negative overconfidence at prices 1–10 cents is longshot bias — the market overprices unlikely events, creating a structural edge for selling low-probability outcomes.

2. Mispricing Signal Detection

|market_price - fair_value| / fair_value  >  threshold (e.g. 5%)

Signals stored with status: PENDING → ACTED → EXPIRED.

3. Market Scoring

Composite score (0–100) across: liquidity, relative spread, and 7-day rolling volume.

4. DuckDB SQL Explorer

Live SQL REPL backed by DuckDB:

-- Markets where final price was wrong by > 30%
SELECT question, outcome_prices, resolution, volume
FROM polymarket_markets
WHERE closed = TRUE AND resolution IS NOT NULL
  AND ABS(CAST(JSON_EXTRACT(outcome_prices, '$[0]') AS DOUBLE)
          - CASE WHEN resolution = 'YES' THEN 1.0 ELSE 0.0 END) > 0.3
  AND volume > 10000
ORDER BY volume DESC;

Write operations are blocked at the service level.

Trading API

Express server on port 3002.

REST Endpoints

Method	Path	Description
GET	`/api/health`	Service health + init status
GET	`/api/markets`	Active markets with current prices
GET	`/api/markets/discover`	Trigger discovery scan
GET	`/api/pricing`	Fair value snapshots for all markets
GET	`/api/pricing/:tokenId`	Fair value for one market
GET	`/api/positions`	Open positions
GET	`/api/orders`	Open orders
POST	`/api/orders`	Place order (Zod-validated)
DELETE	`/api/orders/:orderId`	Cancel order
POST	`/api/market-maker/start`	Start market making loop
POST	`/api/market-maker/stop`	Stop market making loop
GET	`/api/greeks`	Portfolio Greeks
GET	`/api/greeks/:crypto`	Per-crypto Greeks
GET	`/api/risk`	Risk status + limit checks
GET	`/api/safety`	Per-market safety status
GET	`/api/streams`	Feed health (Binance/Deribit)
GET	`/api/metrics`	p95/p99 latency, success rates
POST	`/api/research/ingest`	Trigger live market ingestion
GET	`/api/research/win-rates`	Win rate calibration data
GET	`/api/research/mispricing`	Active mispricing signals
GET	`/api/research/scores`	Market composite scores
POST	`/api/research/query`	Run read-only DuckDB SQL

WebSocket Feed (`ws://localhost:3002`)

Real-time push every 2 s:

{
  "type": "state_update",
  "data": {
    "pricing": { "<tokenId>": { "fairPrice": 0.42, "delta": 0.42, "gamma": 0.08 } },
    "greeks": { "ETH": { "delta": 12.4, "gamma": 0.3, "vega": 8.1 } },
    "safety": { "<tokenId>": { "safe": true, "reasons": [] } },
    "streams": { "binance_ETH": "OK", "deribit_ETH": "OK" }
  }
}

Market Making Engine

The Trading Loop

MarketMaker runs on a 2-second timer:

Risk check — RiskManager.checkRisk(greeks) against configured limits
Per-market safety — SafetyMonitor.isSafeToQuote() for each underlying
Quote generation — Strategy.generateQuote() runs the QP spread formula
Order management — Stale quotes cancelled and replaced via CLOB API

Spread Formula (QP)

spread = baseSpread × r_ATM × r_T × r_gamma

r_ATM   = 1 + 0.5 × exp(−m² / 0.1)     where m = |ln(K/S)|
r_T     = 1 + 0.3 × T
r_gamma = 1 + k_gamma × |portfolio_gamma|

adjustedSpread = clamp(spread, minSpread, maxSpread)

Inventory skew:

adjusted_mid = fair_price − k_inv × q_net

Risk Limits

Limit	Default	Description
`maxDelta`	50	Max aggregate delta
`maxGamma`	5	Max aggregate gamma
`maxVega`	100	Max aggregate vega
`maxNotional`	50,000	Max total notional ($)
`minSpread`	0.5%	Minimum bid-ask spread
`maxSpread`	10%	Maximum bid-ask spread

Safety & Reliability

Check	Threshold	Effect
Spot staleness	> 5,000 ms	Halt all markets for that crypto
IV staleness	> 30,000 ms	Halt all markets for that crypto
Spot tick gap	> 2%	Halt all markets for that crypto
Orderbook staleness	> 10,000 ms	Skip this market only

Additional reliability features:

Circuit Breaker — CLOSED → OPEN → HALF_OPEN on external API failures
RetryHandler — exponential backoff with jitter on REST calls
HybridStreamManager — automatic REST fallback when WebSocket drops
TickBuffer — deduplicates and re-orders ticks on reconnect
PerformanceMetrics — p50/p95/p99 latency per service
WAL mode — concurrent reads during writes, crash-safe SQLite

Finding Mispriced Markets

1. Black-Scholes Divergence (Crypto Markets)

fair_price = N(d2)

d1 = [ln(S/K) + (r + σ²/2) × T] / (σ × √T)
d2 = d1 − σ × √T

S = Binance spot (live WS)
K = Strike from market metadata
σ = Deribit mark IV (live WS)
T = Time to expiry (seconds / 31,557,600)

If |polymarket_mid − N(d2)| > bid_ask_spread, there is a tradeable edge.

2. Calibration-Based Edge

Compute historical win rate for each 1-cent price bucket
Identify systematic biases (e.g., 5¢ markets win only 3% → overpriced by 2%)
Edge = actualWinRate − marketPrice

3. Market Score Ranking

scoreLiquidMarkets() ranks by composite score across liquidity, volume, and spread stability.

4. DuckDB SQL Explorer

Direct SQL access to historical Parquet data for ad-hoc analysis.

Quick Start

Prerequisites

Node.js 18+
npm
Python 3.10+ (optional, for research data pipeline)

Install

cd PolyTrade
npm install
cd ui && npm install && cd ..

Configure

Copy .env.example to .env:

# Required for live trading
POLYMARKETS_PRIVATE_KEY=your_ethereum_private_key
POLYMARKET_FUNDER_ADDRESS=your_wallet_address

# Optional
API_PORT=3002
LOG_LEVEL=info
ENABLE_BINANCE=true
ENABLE_DERIBIT=true
DB_PATH=./PolyTrade.db
RESEARCH_DB_PATH=./Research.db

Security: Never commit your .env file. Only .env.example (with placeholder values) should be tracked by git.

Run

.\start.ps1              # Start backend + UI
.\start.ps1 -Services backend   # Backend only (port 3002)
.\start.ps1 -Services ui        # UI only (port 5173)
.\start.ps1 stop         # Stop everything

Or manually:

npm run server           # Backend
cd ui && npm run dev     # UI (separate terminal)

Research Pipeline

cd prediction-market-data
pip install -e .
python main.py           # Download polymarket + kalshi Parquet snapshots

Configuration

Environment Variables

Variable	Required	Default	Description
`POLYMARKETS_PRIVATE_KEY`	Yes	—	Ethereum private key (CLOB auth)
`POLYMARKET_FUNDER_ADDRESS`	Yes	—	Wallet address
`API_PORT`	No	`3002`	Backend HTTP port
`LOG_LEVEL`	No	`info`	`debug`/`info`/`warn`/`error`
`DB_PATH`	No	`PolyTrade.db`	Live trading DB path
`RESEARCH_DB_PATH`	No	`Research.db`	Research DB path
`ENABLE_BINANCE`	No	`true`	Enable Binance spot feed
`ENABLE_DERIBIT`	No	`true`	Enable Deribit IV feed

Risk & Safety Limits

Limit	Default	Description
`maxSpotStalenessMs`	5,000 ms	Spot price max age before halting
`maxIvStalenessMs`	30,000 ms	IV max age before halting
`maxSpotGapPercent`	2%	Max single-tick spot move
`maxDelta`	50	Portfolio delta limit
`maxGamma`	5	Portfolio gamma limit
`maxVega`	100	Portfolio vega limit
`maxNotional`	50,000	Max total notional ($)

Resources

Disclaimer

This software is for educational and personal use only.

This is NOT financial advice
Prediction market trading carries significant risk
Always test with paperMode: true before using real funds
Check platform terms of service for algorithmic trading restrictions

License

MIT License

Name		Name	Last commit message	Last commit date
Latest commit History 10 Commits
PolyTrade		PolyTrade
docs/screenshots		docs/screenshots
.gitignore		.gitignore
README.md		README.md

Folders and files

Latest commit

History

Repository files navigation

PolyTrade

Table of Contents

Project Goal

System Architecture

Data Flow: Live Pricing

Data Flow: Research

UI Walkthrough

1. Trading Dashboard

Left — Markets Panel

Right — Pricing & Greeks Panel

Bottom — Order Book Panel

2. Market Discovery

Controls Bar

Strike Grid

3. Pricing Table

4. Markets Overview

5. Portfolio & Orders

Portfolio Greeks

Order Management

Positions Table

6. Safety Monitor

7. Research — Data

Data Status Panel (top)

Backfill Panel (bottom)

8. Research — Scanner

Market Scores for MM

Mispricing Scanner

Codebase Structure

Database Architecture

1. PolyTrade.db — Live Trading Database (SQLite v2, WAL Mode)

2. Research.db — Analysis & Research Database (SQLite + DuckDB)

Research System

Purpose

Analysis Methods

1. Win Rate Calibration (Longshot Bias Detection)

2. Mispricing Signal Detection

3. Market Scoring

4. DuckDB SQL Explorer

Trading API

REST Endpoints

WebSocket Feed (ws://localhost:3002)

Market Making Engine

The Trading Loop

Spread Formula (QP)

Risk Limits

Safety & Reliability

Finding Mispriced Markets

1. Black-Scholes Divergence (Crypto Markets)

2. Calibration-Based Edge

3. Market Score Ranking

4. DuckDB SQL Explorer

Quick Start

Prerequisites

Install

Configure

Run

Research Pipeline

Configuration

Environment Variables

Risk & Safety Limits

Resources

Disclaimer

License

About

Resources

Uh oh!

Stars

Watchers

Forks

Releases

Packages 0

Uh oh!

Contributors

Uh oh!

Languages

WebSocket Feed (`ws://localhost:3002`)

Packages
