A session can rename itself through the live Collins tool socket - #209

Merged
ghackett merged 3 commits into
mainfrom
session-mcp-pr3-socket-service
Aug 8, 2026
Merged

A session can rename itself through the live Collins tool socket#209
ghackett merged 3 commits into
mainfrom
session-mcp-pr3-socket-service

Conversation

@ghackett

@ghackett ghackett commented Aug 8, 2026

Copy link
Copy Markdown
Member

PR 3 of the session MCP tools plan (after #201's ancestry walk and #204's shim + protocol layer): the app-side socket service goes live, launched commands carry --mcp-config, and the first tool — set_session_title — works end to end through a real claude CLI.

What's here

  • collins/mcpserver.py (new): SessionToolService, a Gio.SocketService on the per-instance Unix socket. Fully async on the GLib main loop — no threads; per connection the cycle is strictly read → reply → read, so a peer that floods requests without reading replies stalls only itself. Takes injected list_tools() / dispatch(pid, tool, args) callables, so the whole connection machinery is CI-testable without GTK. Untrusted-peer rules: a first frame that isn't a well-formed hello, or any framing violation, disconnects rather than guesses.
    • One hazard found live: Gio silently truncates a socket path past sun_path's 107 bytes, producing a listener no shim can ever dial (the shim degrades cleanly, so the feature would just silently not work). start() now refuses over-long paths loudly; real paths under $XDG_RUNTIME_DIR sit far below the limit.
  • collins/providers.py: module-level MCP_CONFIG_PATH (set by app.py only once the whole chain is up) plus a supports_mcp_config capability flag mirroring supports_fork. New/resume/fork/continue commands and the chat argv all carry the flag; the attach branch carries nothing by construction (claude attach accepts no flags and joins a process that already has its servers) — tested.
  • collins/app.py: service bring-up in do_startup (one failure path: log, leave MCP_CONFIG_PATH unset, commands go out exactly as before — the tools are conveniences, never load-bearing), the codebase's first do_shutdown to tear it down, and the dispatcher: /proc ancestry walk from the shim's hello pid to the tab whose shell spawned its claude, argument re-validation app-side (the socket is reachable by any local process), and the set_session_title handler.
  • collins/window.py: MainWindow.rename_session_tab() — the rename dialog's save path without the dialog. The rename lands in the manual-name slot, so it permanently stops auto-titling for that session, exactly as a hand rename does.
  • collins/terminal.py: TerminalTab.owns_pid_ancestors() over _candidate_pids() (both the pty's foreground pgrp leader and the spawned child, per the daemon-wrapper note there).
  • Tests: 24 for the service (raw socket clients against a live GLib loop, hostile-peer cases, lifecycle) including two true end-to-end tests driving the real mcp_shim subprocess against the real service — the seam neither module's own tests crossed — plus 7 new provider tests for the flag.

Verified live (headless, CLI 2.1.226)

  • A real claude -p --mcp-config … session listed the tool, called it through --allowedTools, and echoed the service's "Session renamed." reply; dispatch received the shim's pid.
  • A throwaway app instance (fresh COLLINS_APP_ID, isolated data): service up, runtime dir keyed by app id, typed resume command carries the flag, a client fed into the tab's own terminal renamed the session through the socket (screenshots below), and a client not descended from any tab got the clean identity error — the expected shape for daemon-hosted bg jobs until the identity fallback lands.
  • PR 2's deferred question answered: the CLI merges an stdio server's env block into the inherited environment (probe saw both the config var and a parent-env marker). Either behavior works for the shim, but now it's recorded.

Screenshots

Before: the tab's typed command carries --mcp-config. After: a client run from the tab's own shell called set_session_title — tab title and sidebar row both renamed, ok reply visible in the terminal.

Before After
tab open with --mcp-config in the typed resume command tab and sidebar renamed by the MCP tool

Per the spec, v1 pre-allows nothing — every first use goes through the CLI's own permission prompt. Next up: PR 4 (open_in_editor + show_image), PR 5 (notify_user).

🤖 Generated with Claude Code

https://claude.ai/code/session_019ScBAgKFEdAAeQmcYGoGCA

ghackett and others added 2 commits August 8, 2026 13:32
PR 3 of the session MCP tools plan: the app-side socket service goes
live and the first tool works end to end. mcpserver.py owns a
Gio.SocketService on the per-instance Unix socket, fully async on the
main loop (read -> reply -> read per connection, so a peer that stops
reading stalls only itself), with injected list_tools/dispatch so CI
tests the whole connection machinery without GTK. The service refuses
socket paths past sun_path's 107 bytes: Gio silently truncates them,
which produced a listener no shim could ever dial (observed live).

providers.py gains MCP_CONFIG_PATH plus a supports_mcp_config
capability flag, and appends --mcp-config to new/resume/continue/chat
commands - never to `claude attach`, which takes no flags and joins a
process that already has its servers. app.py brings the service up in
do_startup (any failure logs and leaves commands untouched), adds the
codebase's first do_shutdown to tear it down, and dispatches calls by
walking /proc ancestry from the shim's hello pid to the tab whose
shell spawned its claude (TerminalTab.owns_pid_ancestors); processes
not under any tab get a clean identity error. set_session_title lands
in the manual-name slot via MainWindow.rename_session_tab, exactly as
a hand rename does.

Verified against claude CLI 2.1.226 headlessly: the tool listed,
called, and replied through a real -p session; a throwaway app
instance renamed a real tab through the socket, and the CLI merges an
stdio server's env block into the inherited environment (the question
PR 2 deferred).

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_019ScBAgKFEdAAeQmcYGoGCA
Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_019ScBAgKFEdAAeQmcYGoGCA
@ghackett

ghackett commented Aug 8, 2026

Copy link
Copy Markdown
Member Author

@claude review

@claude

claude Bot commented Aug 8, 2026

Copy link
Copy Markdown

Claude finished @ghackett's task in 4m 55s —— View job


Review complete

  • Gather context (diff, changed files, related modules)
  • Review collins/mcpserver.py (new socket service)
  • Review collins/providers.py (mcp-config flag)
  • Review collins/app.py (bring-up/shutdown/dispatcher)
  • Review collins/window.py / collins/terminal.py
  • Review tests
  • Post final review

Solid, well-tested PR — the framing, lifecycle, and capability-flag plumbing are careful and the 24+7 new tests cover the protocol edges (bad hellos, oversize lines, concurrent connections, stop-mid-request, and the two real shim↔service end-to-end tests) well. One security gap worth fixing before more tools land on top of this identity mechanism, plus a couple of minor notes.

1. The shim's identity (pid) is self-reported and never verified against the real peer

collins/mcpserver.py:143-155 (_greet) takes pid straight from the client's hello frame — it only checks the type/range (isinstance(pid, int), not a bool, > 0), never that this is the pid of the process actually holding the other end of the socket. mcp_shim.py:132 sends os.getpid() in good faith, but nothing stops any other local process from opening the same socket and lying in that field.

That pid is then load-bearing for authorization: app.py's _mcp_tab_for_pid (app.py:855-871) walks /proc ancestry from it to decide which open Collins tab a call is allowed to act on, and _mcp_dispatch trusts that result completely. The module's own docstring already acknowledges "any local process of the user's can still connect" — but the mitigation described (disconnect on bad framing / a malformed hello) doesn't cover a well-formed hello with a spoofed pid. Concretely: any local process belonging to the same user can declare an arbitrary (real) pid belonging to another tab's claude process and be treated as if it were that tab's shim — bypassing the ownership check entirely, for set_session_title today and for open_in_editor / show_image / notify_user once PR4/PR5 land, which raises the stakes considerably.

Unix domain sockets give you a kernel-verified alternative for exactly this: Gio.SocketConnection.get_socket().get_credentials() returns the real peer pid/uid via SO_PEERCRED (Linux) rather than trusting the payload. Worth authenticating against that instead of (or in addition to) message["pid"].

Fix this →

2. No automated coverage for the dispatcher glue in app.py / window.py

_mcp_tab_for_pid, _mcp_dispatch (app.py:830-880), and MainWindow.rename_session_tab (window.py:3518-3529) have no unit tests — only the PR description's manual/live verification. The service and provider layers are thoroughly covered because they're GTK-free by design; this glue is GTK-bound so it's a harder ask, but the validation → ownership-resolution → error-message branching in _mcp_dispatch is exactly the kind of logic that's easy to regress silently (e.g. the unresolved-session_id and not-launched-from-a-tab error paths). Not a blocker, just a gap worth closing, possibly by factoring the pid→tab resolution into something fakeable without a real Gtk.Application.

Everything else checked out

  • providers.py's _mcp_config_flag() gating (capability flag + MCP_CONFIG_PATH is not None) and the attach-branch exemption are correct and directly tested (test_attach_carries_no_mcp_config confirms ClaudeProvider.resume_command's attach path rebuilds its own command rather than reusing the super() result that already carries the flag).
  • The sun_path 107-byte truncation guard in mcpserver.py:77-78 is a good catch — silent truncation would have been a nasty "feature quietly doesn't work" bug.
  • stop() correctly drops live connections, not just the listener (regression-tested per the PR3/PR204 note in test_stop_closes_established_connections).
  • do_shutdown ordering and the "best-effort, never load-bearing" failure handling in _start_mcp_service look right — a failed bring-up leaves MCP_CONFIG_PATH unset and launched commands unaffected.

Branch: session-mcp-pr3-socket-service

@ghackett
ghackett marked this pull request as ready for review August 8, 2026 17:40
Review follow-ups. The shim's declared pid is load-bearing for
authorization (the dispatcher walks /proc ancestry from it to pick the
tab a call may act on), and any local process of the user's can open
the socket - so _greet now checks the hello pid against the peer's
real pid via Gio.Socket.get_credentials() and drops liars. Credentials
being unreadable also fails the hello: this path is Linux-only already
(the dispatcher reads /proc), so an unanswerable kernel means broken,
not trustworthy.

The dispatcher's branching moves into GTK-free
mcptools.run_tool_call() (validate first and unconditionally, identity
second so a bad call fails identically whoever makes it, then the
handler), with CI tests pinning the order and error strings; app.py
keeps only the widget-touching halves. Re-verified live: the headless
app-instance probe still renames a real tab through the socket, and a
non-tab client still gets the clean identity error.

Co-Authored-By: Claude Fable 5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_019ScBAgKFEdAAeQmcYGoGCA
@ghackett

ghackett commented Aug 8, 2026

Copy link
Copy Markdown
Member Author

Both review findings addressed in 5e7c015:

1. Spoofable hello pid → kernel-verified via SO_PEERCRED. _greet now checks the declared pid against connection.get_socket().get_credentials().get_unix_pid() and drops any mismatch. Unreadable credentials also fail the hello — this path is Linux-only already (the dispatcher walks /proc), so an unanswerable kernel means broken, not trustworthy. New tests: a client claiming pid 1 is disconnected, an honest os.getpid() hello is served, and the real-shim end-to-end tests exercise the check for free (the shim's hello carries its own pid).

2. Dispatcher glue coverage. The validate → identity → handler branching moved into GTK-free mcptools.run_tool_call(), so CI now pins the order (validation runs before identity resolution, so a bad call fails identically whoever makes it — no leaking whether a tab owns the caller through the error shape) and the shared error strings. app.py keeps only the widget-touching halves: the pid→tab walk and the set_session_title handler. Six new tests in test_mcptools.py.

Re-verified live after the changes: the headless throwaway-app probe still renames a real tab through the socket, and a non-tab client still gets the clean identity error. Full suite: 1240 passing.

🤖 Generated with Claude Code

https://claude.ai/code/session_019ScBAgKFEdAAeQmcYGoGCA

@ghackett
ghackett merged commit 03ac6cb into main Aug 8, 2026
2 checks passed
@ghackett
ghackett deleted the session-mcp-pr3-socket-service branch August 8, 2026 17:50
ghackett added a commit that referenced this pull request Aug 8, 2026
PR 4 of the [session-mcp-tools
spec](#201): the
`open_in_editor` and `show_image` handlers land behind the socket
service #209 wired up. An agent can now put the file it's talking about
on the user's screen — "I've put the failing test on screen" instead of
hoping they click a path — and pop a screenshot, plot, or render into
the in-app lightbox without launching an external viewer.

## What changed

- **`mcptools.TOOLS`** grows the two schemas: `open_in_editor(path,
line?)` (line is 1-based, minimum 1) and `show_image(path)`. The
existing table-driven validator covers them — wrong types, `line: 0`,
and stray arguments are all rejected app-side, since the socket is
reachable by any local process.
- **`app.py`** adds the two handlers plus `_mcp_resolve_file`: a
relative path resolves against the running agent's cwd first (it may
have cd'd into a worktree), then the tab's project root — the same order
clickable file references use (`terminal._reference_roots`).
- `open_in_editor` requires the file inside the session's project
(`can_open_in_editor`), converts the 1-based line to the editor's
cursor, and opens via the calling tab's own editor.
- `show_image` follows the clicked-image-reference recipe: any readable
image shows, inside the project or not; the lightbox's "Open in Editor"
button only appears when the tab could actually open it.
- **`window.py`** promotes `_open_in_tab_editor` to public
`open_in_tab_editor`: a session-attributed call must land in the calling
session's own tab — the window-level `_open_in_editor` picks a tab by
project membership and may switch tabs, which is the wrong door for an
agent-driven open.

## Screenshots

A staged session called its own tools through the real socket.

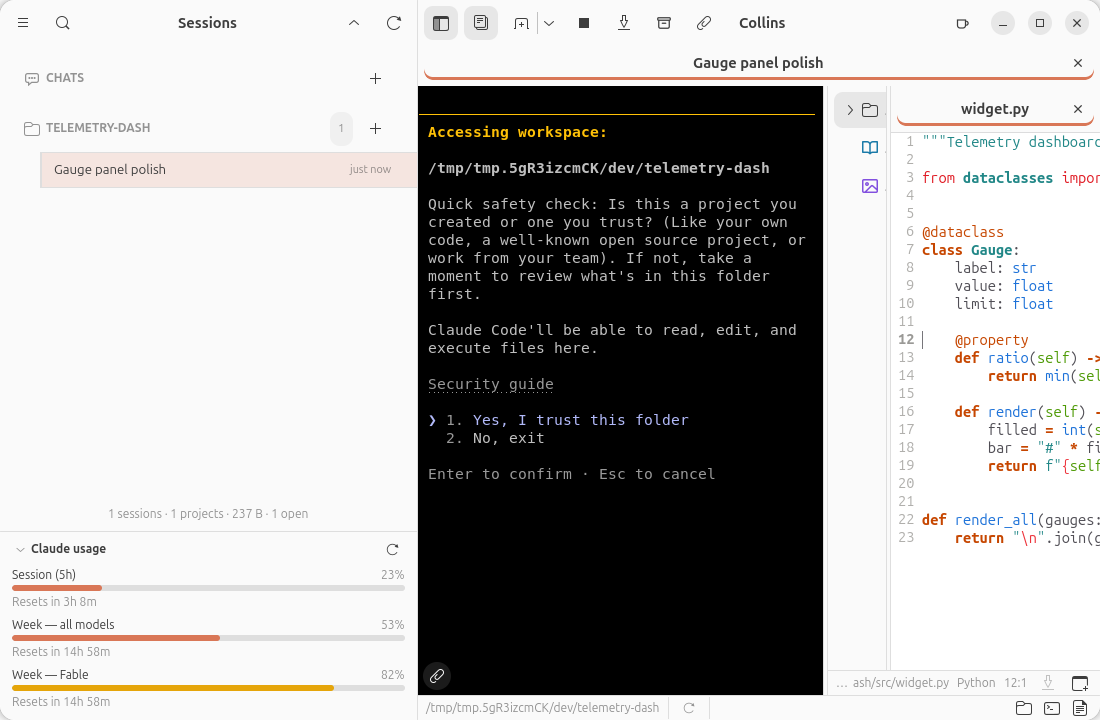

`open_in_editor("src/widget.py", line=12)` — cursor at 12:1 in the
status bar:

![open_in_editor result: widget.py open at line 12 in the session's
editor
pane](https://raw.githubusercontent.com/episode6/screenshots/main/collins/session-mcp-pr4/pr4-editor-20260808.png)

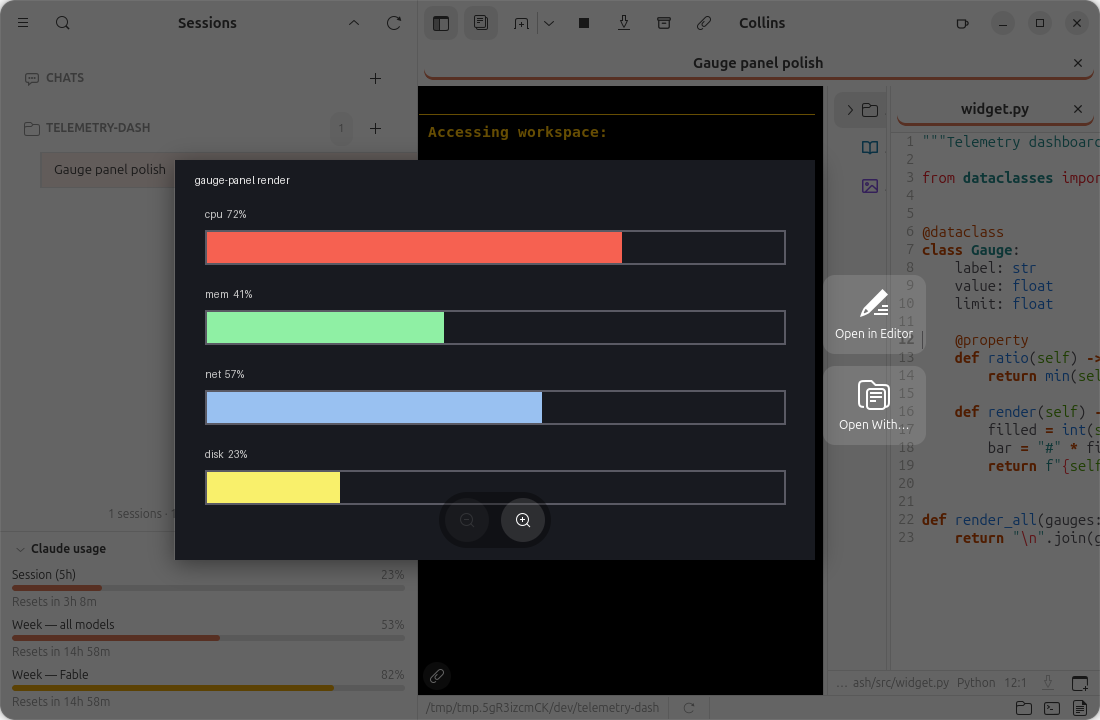

`show_image` on a staged render — lightbox over the window, with its
Open in Editor button since the image lives inside the project:

![show_image result: the render floating in the in-app
lightbox](https://raw.githubusercontent.com/episode6/screenshots/main/collins/session-mcp-pr4/pr4-lightbox-20260808.png)

## Verification

- 75 GTK-free tests pass locally (`test_mcptools` + `test_mcp_shim` +
`test_mcpserver`), including new schema/validation coverage for both
tools and the tool-list assertions updated to track the table.
- E2E, headless, against a throwaway app instance driving the **real
socket path** (hello + call frames; identity faked to the open tab,
since the probe isn't a descendant of the tab's shell — the ancestry
walk itself was e2e-verified in #209 and is unchanged here):
- `open_in_editor` with a relative path + line → editor opened at 12:1 ✔
(screenshot)
- `show_image` with an absolute path → lightbox presented ✔ (screenshot)
  - `/etc/hostname` → "That file is outside this session's project" ✔
  - missing file → "No such file: src/nope.py" ✔
  - non-image to `show_image` → "Not an image Collins can display" ✔
  - `line: 0` → "'line' must be at least 1" ✔
  - missing `path` → "Missing required argument: path" ✔

Per the spec, v1 pre-allows nothing — both tools go through the CLI's
normal permission prompts. Next up is PR 5, `notify_user`.

🤖 Generated with [Claude Code](https://claude.com/claude-code)

https://claude.ai/code/session_016dyuyFPinBYmRVsRUHYRTQ

Co-authored-by: Claude Opus 5 (1M context) <noreply@anthropic.com>
