PPTX: honor manual chart title layout

[developer0hye]

Summary

• parse title-specific edge-mode c:manualLayout coordinates into ChartTitleLayout
• place PowerPoint chart titles at their authored chart-relative anchors while preserving the existing title band
• add parser and renderer regression coverage plus 300 DPI GT/before/after evidence for pages 8 and 11

Related issue

Fixes #1423

Testing

• cargo fmt --all -- --check
• cargo clippy --workspace --all-targets -- -D warnings
• cargo test --workspace
• cargo check --target wasm32-unknown-unknown -p office2pdf
• cargo check --target wasm32-unknown-unknown -p office2pdf --features wasm
• cargo check --target wasm32-unknown-unknown -p office2pdf --features wasm-cjk-font
• wasm-pack build crates/office2pdf --target web --features wasm
• wasm-pack build crates/office2pdf --target web --features wasm-cjk-font
• wasm-pack test --node --features wasm from crates/office2pdf: 10 passed
• wasm-pack test --node --features wasm-cjk-font from crates/office2pdf: 11 passed
• converted the 15-page PR fix(docx): honor in-cell picture row floors #1407 PPTX and rendered pages 8 and 11 at 300 DPI
• final page 8 and 11 renders are pixel-identical to the committed after evidence source renders: AE 0
• compare_layout.py --audit --json records zero painted-visibility mismatches on both compared pages
• mandatory documentation freshness review: PASS

Visual impact

• No rendered PDF change
• Rendered PDF change or visual evidence added
• Reason: PowerPoint chart titles with edge-mode manual layouts now use the authored position.

Visual audit

• Issue: PPTX chart titles ignore title-specific manual layout and remain centered #1423
• Fixture: PR fix(docx): honor in-cell picture row floors #1407 source PPTX, pages 8 and 11
• Page(s): 8, 11
• Renderer and DPI: pdftoppm, 300 DPI
• Evidence mode: fix
• Layout audit report: assets/bugfixes/issue-1423/layout-audit.json
• Layout audit page count: Pass
• Layout audit text flow: compare_layout ignores outlined Type 3 text metadata and reports visible GT titles as extra output #1415, PPTX combo chart maps a secondary-axis series onto the primary percent axis #1374, PPTX multi-entry right legends use a fixed 14pt row pitch #1434, PPTX column-chart right legends center 9.2pt too low #1435
• Layout audit large shifts: PPTX multi-entry right legends use a fixed 14pt row pitch #1434, PPTX column-chart right legends center 9.2pt too low #1435, PPTX column-chart right legends are right-fitted 11pt too far left #1436
• New follow-up issues found in this audit: PPTX multi-entry right legends use a fixed 14pt row pitch #1434, PPTX column-chart right legends center 9.2pt too low #1435, PPTX column-chart right legends are right-fitted 11pt too far left #1436, PPTX column charts use an uncalibrated automatic vertical plot rectangle #1437, PPTX column-chart right legend keys are 0.56pt too large #1439
• Model vision findings: Both chart titles move from centered to the native left anchors. Page 8 still has compressed legend row pitch, a low and left-shifted legend block, oversized legend keys, and a vertically undersized plot (PPTX multi-entry right legends use a fixed 14pt row pitch #1434-PPTX column charts use an uncalibrated automatic vertical plot rectangle #1437, PPTX column-chart right legend keys are 0.56pt too large #1439). Title weight/color remains different (PPTX chart titles drop rich-text weight and color #1424). Page 11 still lacks the native secondary axis (PPTX combo chart maps a secondary-axis series onto the primary percent axis #1374). Trace-only table and Type3 text findings remain tracked in compare_layout ignores outlined Type 3 text metadata and reports visible GT titles as extra output #1415. Hairlines and emphasis were inspected on 300 DPI crops; the slide-title rule matches, while remaining chart grid geometry and title emphasis are covered by the cited issues.

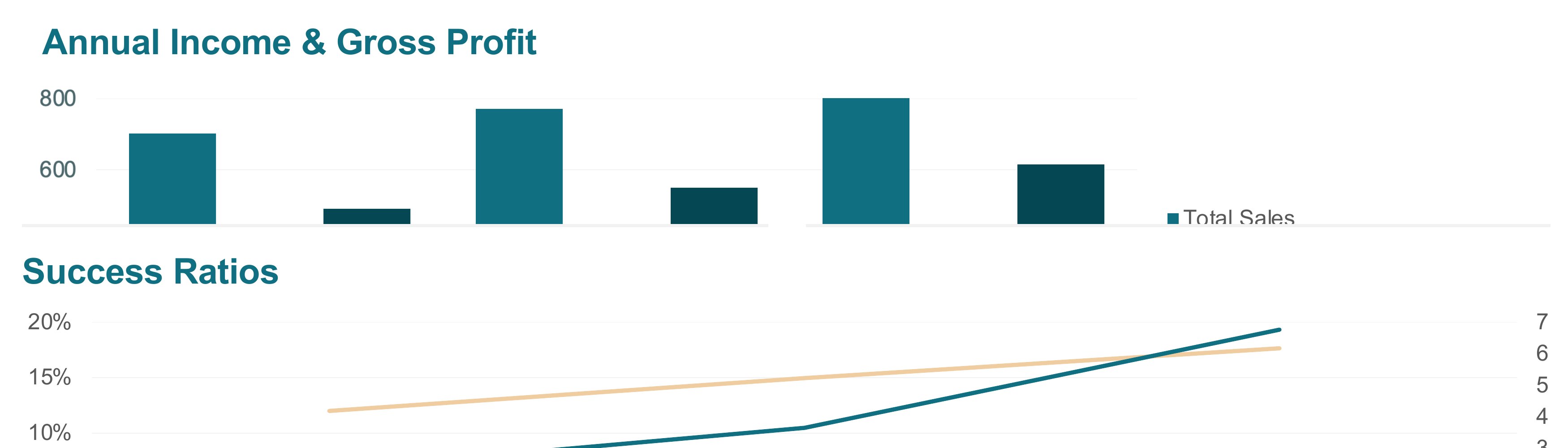

• GT: assets/bugfixes/issue-1423/gt.jpg

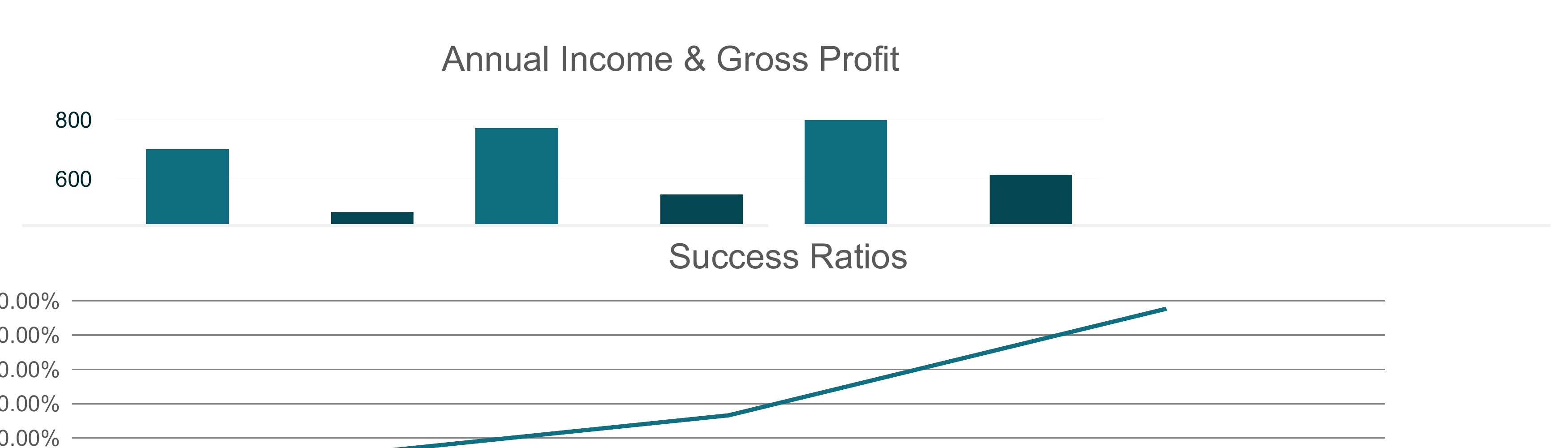

• Before: assets/bugfixes/issue-1423/before.jpg

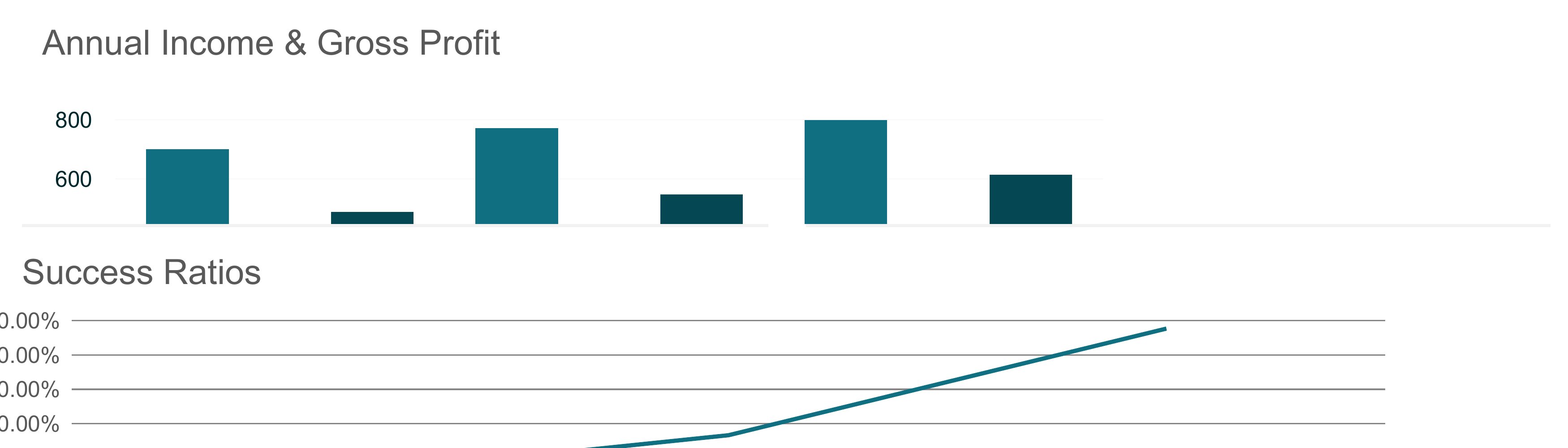

• After: assets/bugfixes/issue-1423/after.jpg
• Compare: assets/bugfixes/issue-1423/compare.jpg
