macOS runs the main window with `titleBarStyle: "Overlay"`, so `AppTopChrome` covers the top edge and the window looks like one surface. Windows had nothing equivalent. It drew the system caption bar directly above our sidebar-colored chrome, and the seam showed. No Tauri setting tints that bar, so the only way to close the gap is to stop Windows drawing it. Turn decorations off once the webview is ready and let the web chrome own the whole top edge. `set_shadow(true)` puts back the drop shadow and rounded corners a window loses when it goes undecorated. Windows has no traffic lights, so the app draws minimize, maximize/restore and close itself. They follow the Fluent 46x32 metrics, sit flush against the edge, and the chrome drops its right padding while they are showing. They are sized in px rather than rem for the same reason the macOS traffic lights are: Ctrl +/- text zoom should not resize them. Dragging already worked, since the chrome carries `data-tauri-drag-region`. The buttons opt out of it so their clicks land. Still missing: hovering maximize does not open the Windows 11 snap-layout flyout. That needs WM_NCHITTEST to answer HTMAXBUTTON, which the webview cannot reach. Win+arrow and dragging to a screen edge still snap. Signed-off-by: Alireza Bashiri <al3rez@gmail.com>
al3rez
force-pushed
the
windows-frameless-titlebar
branch
from
July 23, 2026 12:01
4ac3108 to
9f39d6f
Compare
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Why
macOS runs the main window with
titleBarStyle: "Overlay", soAppTopChromecovers the top edge and the whole window reads as one surface. Windows had nothing equivalent. It drew the system caption bar directly above our sidebar-colored chrome, and the seam showed. No Tauri setting tints that bar, so the only way to close the gap is to stop Windows drawing it.What this does
Decorations go off once the webview is ready, and the web chrome takes the full top edge.
set_shadow(true)puts back the drop shadow and rounded corners a window loses when it goes undecorated.Windows has no traffic lights, so the app draws minimize, maximize/restore and close itself. They follow the Fluent 46x32 metrics and sit flush against the edge, and the chrome drops its right padding while they're showing. They're sized in px rather than rem for the same reason the macOS traffic lights are: Ctrl +/- text zoom shouldn't resize them.
Dragging already worked, since the chrome carries
data-tauri-drag-region. The buttons opt out of it so their clicks land.Result

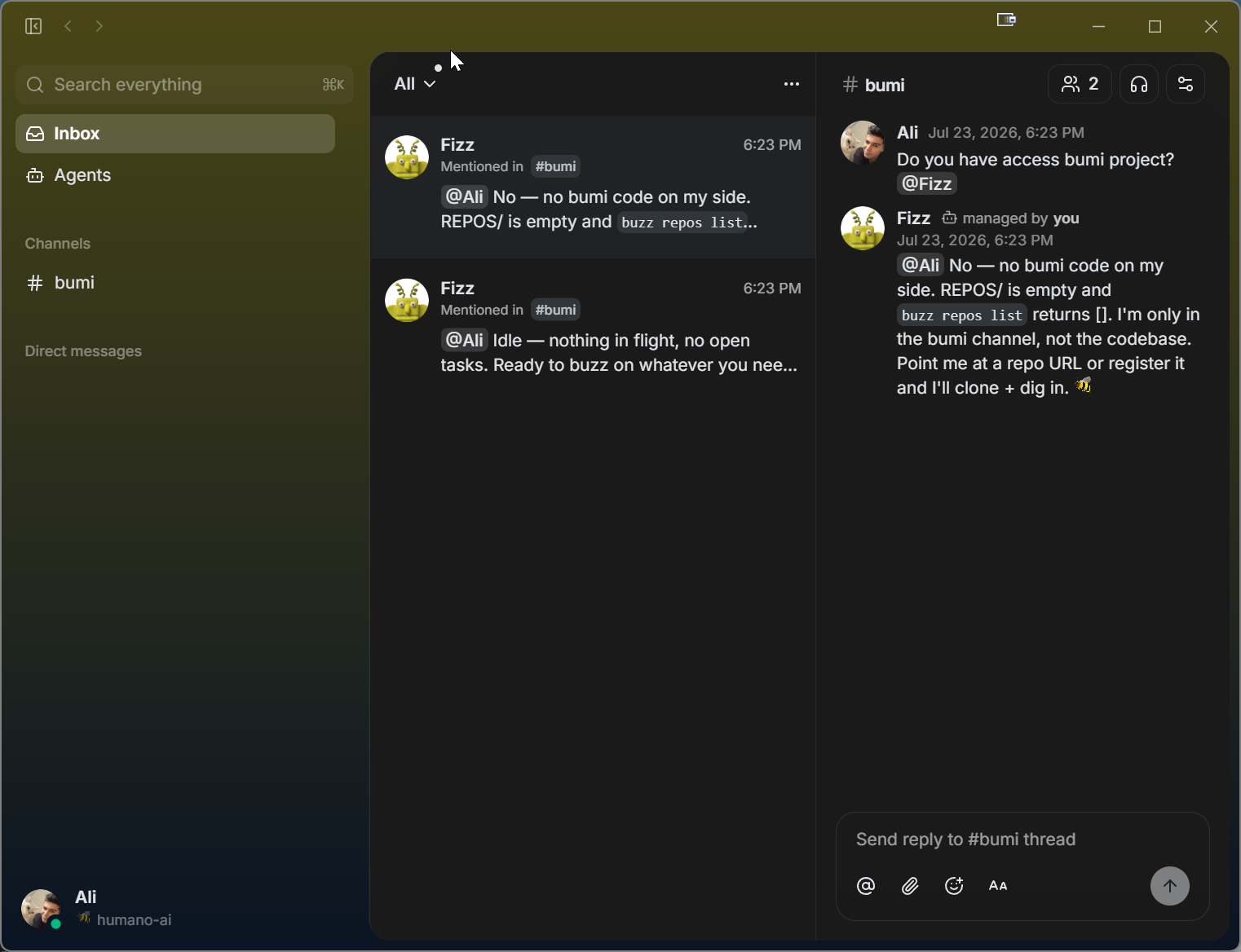

The sidebar color runs straight from the window edge through the chrome, with the caption buttons drawn into that same surface.
Testing
Windows 11 (26100), WebView2. Confirmed in the DOM that the controls land at x:874 y:0, 138x40, visible, and that a hit test on their center returns svg -> button -> controls -> chrome(z-45) with nothing sitting on top of them.
pnpm typecheck,biome checkandcargo checkon the Tauri crate all pass.What doesn't work yet
Hovering the maximize button doesn't open the Windows 11 snap-layout flyout. That needs WM_NCHITTEST to answer HTMAXBUTTON, which isn't reachable from the webview and would take a native window-proc hook. Win+arrow and dragging to a screen edge still snap.
One bit worth a second opinion:
isWindowsPlatform()checksnavigator.platform(WebView2 reportsWin32) and falls back to the user agent. Belt and braces, but if that check ever comes back false on an undecorated window you get a window with no close button, so I didn't want it resting on a single deprecated API.
