Semi-automated virtual stent implantation with mixed-dimensional modelling
Full documentation, including the API reference and workflow diagrams, is hosted at stentfit.readthedocs.io.
stentFIT turns a stent surface mesh (.stl) into a 1D beam-element model that is ready for beam-to-solid contact simulation. It samples the stent surface, detects its rings, extracts a 2D skeleton from each ring, wraps that skeleton back onto the 3D mid-surface, fits a B-spline to each strut curve, and meshes the result into Simo–Reissner beams with BeamMe.
Extracting the 1D wireframe is semi-automated, so you can check the intermediate steps and edit them by hand if you need to. Ring detection and 2D skeletonisation are the two steps where this matters most. There is also a smoke test that checks the quality of the 1D stent model inside a generated pipe-like 3D vessel.
You need Python 3.13, which is pinned to match BeamMe's supported range, and Git on your PATH. BeamMe calls git to write commit metadata into the generated 4C input files, so it fails at runtime without it. Both steps below install Git with conda.
Option A: just use the package
The steps are the same on macOS, Linux, and Windows (PowerShell). On Windows, use python and pip, not the py launcher:
conda create -n stentfit-env python=3.13
conda activate stentfit-env
conda install -c conda-forge git
pip install stentfitpip installs the core dependencies for you, such as beamme (stent beam meshing and artery solid meshing), gmsh (artery solid meshing) and fourcipp. To actually run the generated simulation input files you also need a compiled 4C executable, which is not included in this package.
Option B: clone the repo and start developing
git clone https://github.com/VuralAktas/stentFIT.git
cd stentFIT
conda env create -f environment.yml # Python 3.13 + pip + git
conda activate env_stentfit
poetry install # installs stentfit + all dependency groupsThis way git comes in automatically through environment.yml. You also get the example notebooks and the locked dependency versions (poetry.lock) that match the rest of the project.
from stentfit import Stent, Artery, Simulation
# 1. STL -> 1D spline wireframe
stent = Stent(stl_file="stent01.stl", stent_name="stent01", output_dir="outputs/stent01")
stent.skeletonize()
# 2. A test artery sized to that stent
artery = Artery(stent, artery_type="curved")
# 3. Warp, tie, check, and write the 4C input
sim = Simulation(stent, artery, sim_input_dir="outputs/simulation")
sim.setup()Just note that this example is a simplified version of the full workflow. Each call runs a fixed sequence of steps, and you can also call every step on its own. See Workflows for the breakdown.
1. Stent skeletonisation (examples/stent_skeleton.ipynb)
- Sample a point cloud from the stent STL and align it to its centreline axis.

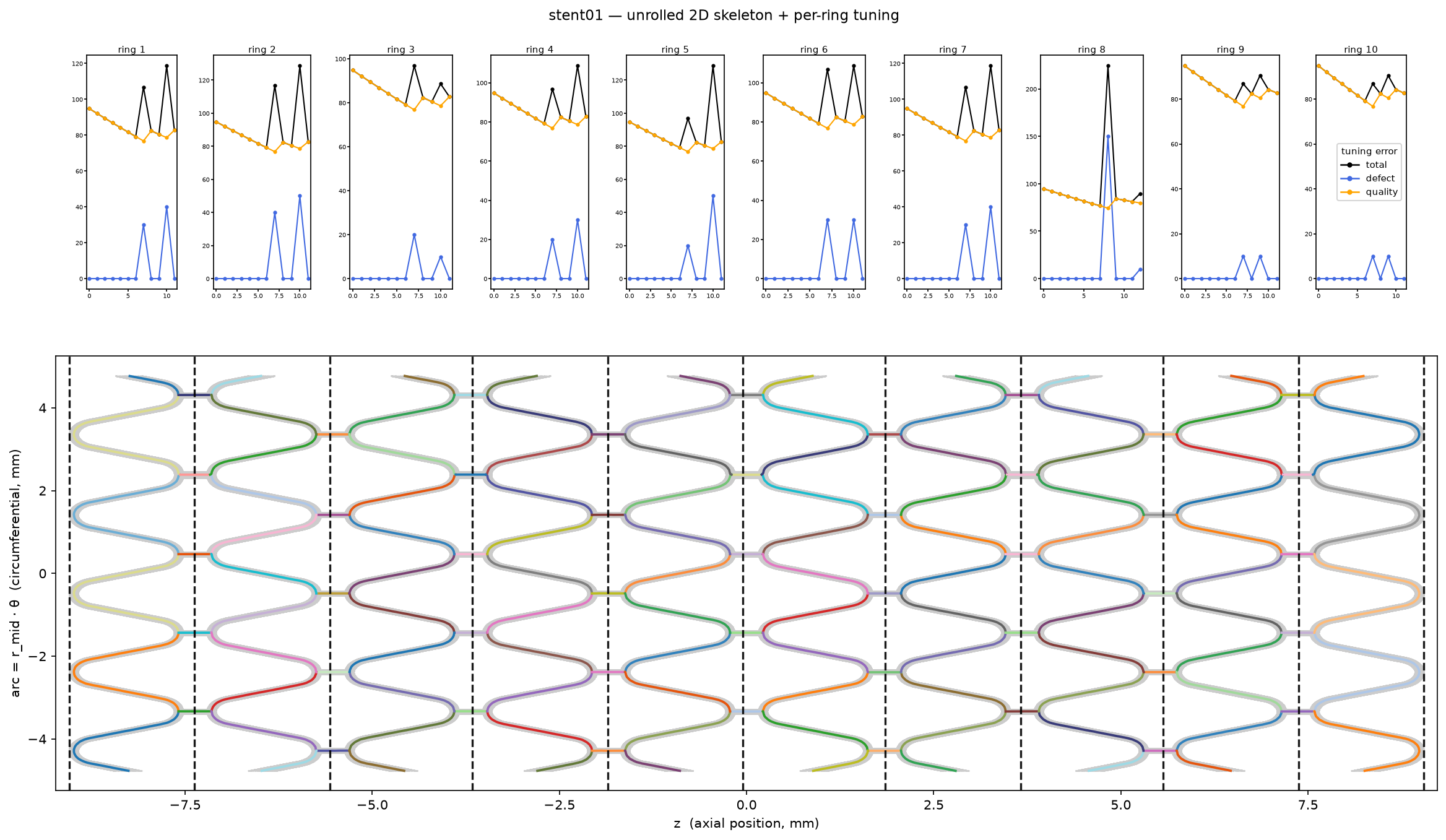

- Detect rings and skeletonise each ring in 2D (optional auto-tuning + manual edits).
- Wrap the 2D skeleton onto the local mid-surface, clean up the graph, and fit a B-spline per strut.
- Mesh the fitted splines into a 1D Simo–Reissner beam mesh with BeamMe.
Every stage writes its own files into the output directory, so you can check the sampled cloud, the detected rings and each ring's 2D skeleton as you go. The final results are skeleton_points.csv, skeleton_splines.json and stent_features.json, together with interactive HTML views.
2. Test artery generation & simulation setup (examples/test_sim_generation.ipynb)
A synthetic/parametric smoke test exercises the full mixed-dimensional chain end-to-end:
- Generate a parametric test artery (straight / curved / S-bend) sized to the stent, and mesh its wall as a 3D solid with GMSH.
- Warp the stent beam mesh onto the artery centreline.

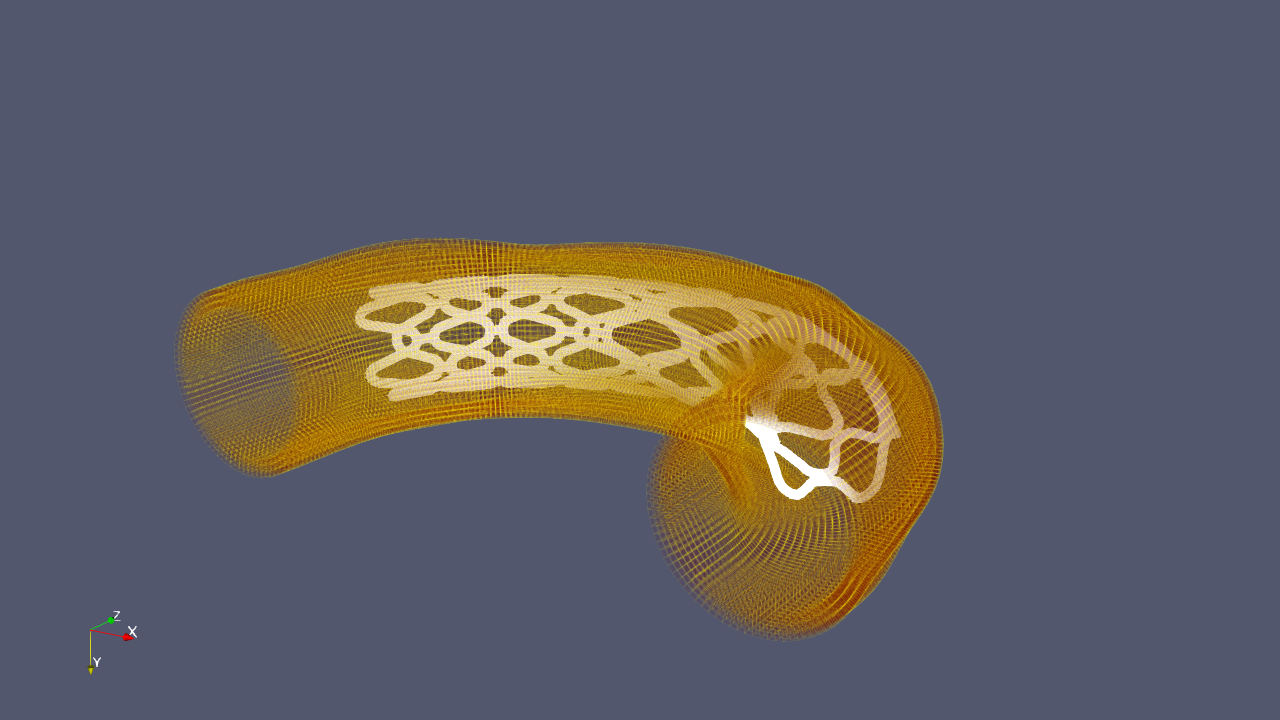

- Check beam-to-solid coupling compatibility (stiffness ratio, element-size ratios) and visualize the stent inside the artery via Paraview.
- Tie the beam mesh to the artery lumen and write a schema-validated 4C simulation input file with a quasi-static radial expansion load.
This confirms that the stent-to-artery mapping and the 4C input generation work end to end. It uses placeholder materials and tied meshtying instead of real contact. The full deployment physics, meaning contact, an HGO-C artery material and elasto-plastic beam bending, is planned but not implemented yet.
Run pytest from the repository root. It checks that the pipeline produces the same results as a reference run and that the results are consistent with the stent design.
The tests are grouped by the question they answer.
1. Did the answer change? (tests/test_reference.py)
The files in tests/reference/stent01/ come from an earlier run that was checked by hand. These tests run the pipeline again and compare. They do not check that the results are correct, only that they are the same as before. If a test in this group fails, either the new results are better than the reference and the reference should be updated, or the code has a bug since it doesn't match the reference anymore.
2. Does the answer make sense? (tests/test_consistency.py)
These check things that must be true for any correct skeleton of any stent:
- The skeleton is a proper graph. Connections go both ways, no point links to itself, and the stored degree matches the real number of neighbours.
randthetaagree withxandy, and no point lies outside the stent wall.- The measured numbers agree with their own definitions, such as
strut_thickness == r_outer - r_inner. - Every fitted curve is a valid B-spline, meaning
knots == control points + degree + 1.
These use no reference file. Deleting tests/reference/ would not change a single one of them.
3. Is it the right stent? (tests/test_design.py)
The stent01 design has 10 rings and 135 struts. Those two numbers live in tests/reference/stent01/design.json and come from inspecting the design, not from the pipeline. They are the only expected values in the suite that do not depend on the code being right.
Note: There are only tests for the skeletonisation process, not for the simulation. The first reason is that the skeletonisation is the part that this package actually contributes, so it is the part worth testing. If the wireframe is wrong, the beam mesh is wrong and the simulation is meaningless, no matter how correct the rest of the chain is. The simulation setup mostly assembles GMSH, BeamMe and 4C, and those projects test their own code. The second reason is that the simulation part still uses placeholder materials and tied meshtying instead of real contact. Testing it properly means running the real 4C solver and checking the physics, not just checking that an input file was written. That belongs with the deployment physics, which is planned but not implemented.
stentfit was created by Vural Aktas. It is licensed under the terms of the GNU General Public License v3.0 or later (GPL-3.0-or-later). See LICENSE for the full text.
Releases up to and including v0.1.2 were published under the MIT license and remain available under those terms.
Author: Vural Aktas, RWTH Aachen University — ORCID 0009-0000-3181-7695
If stentFIT contributes to work you publish, please cite it. GitHub's Cite this repository button (repo sidebar) generates APA and BibTeX entries from CITATION.cff, or use:
@software{aktas_stentfit,
author = {Aktas, Vural},
title = {{stentFIT}: Semi-Automated Virtual Stent Implantation with
Mixed-Dimensional Modelling},
year = {2026},
version = {0.1.3},
url = {https://github.com/VuralAktas/stentFIT}
}Interested in contributing? Reach out at vural.aktas@rwth-aachen.de.
The beam meshing and the 4C input files are built with BeamMe, a beam finite element input generator by the BeamMe authors. The artery wall is meshed with GMSH, and the generated input files are meant to be solved with 4C.
