Ball Larus Path Profiling with Branch Predictor Optimization

[SamyakSinghania]

Pull Request Template for Feature Additions.

Brief description feature

The path profiling is being done as discussed in the Ball Larus Path Profiling paper.

This involves:

1. Saving the original IR
2. Identifying paths in the CFG
3. Computing edge weights
4. Instrumenting the IR
5. Running the instrumented program
6. Reporting the results

The static branch predictor is build by indexing the predictor table with the (path id, program counter)
On running any program, the control flow graph is generated in the file control_flow_graph.png using which we can track down the paths shown in the file path_profile_data.txt

We have added two new flags in our project:

1. -bl – for generating Ball-Larus path profiling data.
2. -bl_op – for generating Ball-Larus path profiling data with branch predictor optimization.

Example

Running Ball-Larus Path Profiling Only

To generate only the Ball-Larus path profiling data, use the command:

./chiron.py -bl ./path_profiling_tests/testcase2.tl

---

Running Ball-Larus Path Profiling with Branch Predictor Optimization

To generate profiling data along with branch prediction optimization:

./chiron.py -bl_op ./BallLarus/inputs.txt ./example/example1.tl

The directory path_profiling_tests contains testcases including if-else, loops, nested loops, and other control flow constructs. These tests can be used for the -bl flag.
The inputs.txt file contains the input parameters for the program, and these parameters can be generated using the generate_inputs.py script.

The directory path_profiling_op_tests contains testcases for the -bl_op flag.

On running:

./chiron.py -bl ./path_profiling_tests/testcase0.tl

The following output is generated:

**File: **path_profile_data.txt

['START', '4', '5', '8', '10', 'END']: 1

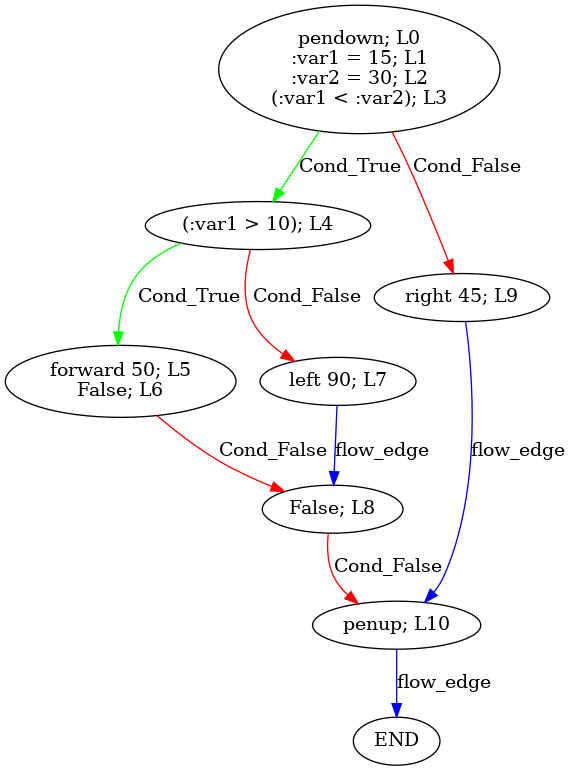

Explanation: From the code and the cfg, we can clearly verify that the path profile generated for the execution is indeed correct.
Since, :var1 = 15 and :var2 = 30, the path START->4->5->8->10->END is taken. The path profile data is generated based on the execution of the program.

On running:

./chiron.py -bl_op ./BallLarus/inputs.txt ./path_profiling_op_tests/testcase6.tl

The following output is generated:

**File: **predictor_accuracy.txt

Total Count: 7
Correct Count: 6
Accuracy: 0.8571428571428571
-----------------------
Total Count: 7
Correct Count: 6
Accuracy: 0.8571428571428571
-----------------------

**File: **path_profile_data.txt

['START', '2', '7', '11', '13', 'END']:  5
['START', '5', '7', '11', '13', 'END']:  1
['START', '5', '7', '8', '13', 'END']:  1
['START', '2', '7', '8', '13', 'END']:  3

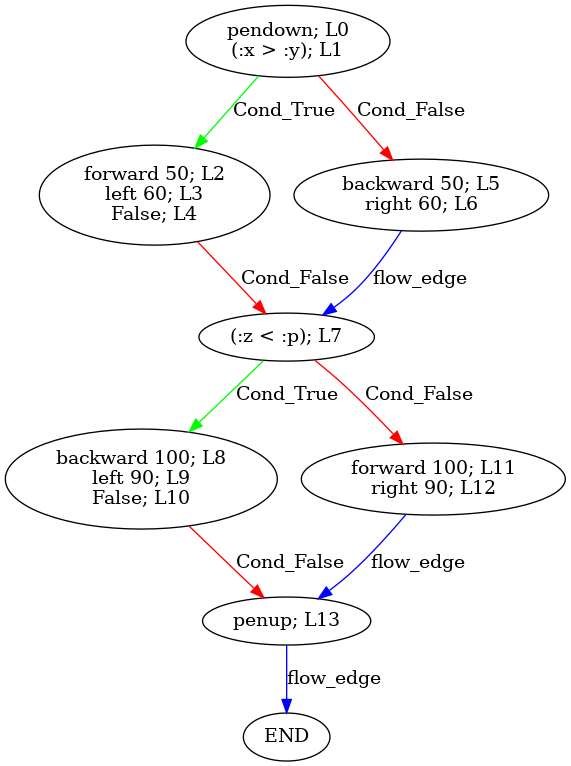

Explanation: The values of x,y,z,p were randomly generated based on which a specific path will be taken in the double diamond CFG. These inputs are present in the file ./BallLarus/inputs.txt. Based on the path profile and execution of branch instructions of the training inputs, a static branch predictor was learned which gives the predictions for the branch instructions of the test inputs. The accuracy of the predictor is also shown in the file predictor_accuracy.txt. The accuracy is calculated based on the number of correct predictions made by the predictor.

On running:

./chiron.py -bl ./path_profiling_tests/testcase1.tl

The following output is generated:

**File: **path_profile_data.txt

['START', '2', '3']: 1
['2', '3']: 2
['2', '7', 'END']: 1

On running:

./chiron.py -bl ./path_profiling_tests/testcase2.tl

The following output is generated:

**File: **path_profile_data.txt

['START', '2', '3', '4', '5']: 1
['4', '5']: 9
['4', '9']: 3
['2', '3', '4', '5']: 2
['2', '12', 'END']: 1

On running:

./chiron.py -bl_op ./BallLarus/inputs.txt ./path_profiling_op_tests/testcase1.tl

The following output is generated:

**File: **predictor_accuracy.txt

Total Count: 88
Correct Count: 81
Accuracy: 0.9204545454545454
------------------------
Total Count: 107
Correct Count: 100
Accuracy: 0.9345794392523364
------------------------

**File: **path_profile_data.txt

['START', '2', '3', '4', '8', '9']: 8
['8', '9']: 72
['8', '13', '23', '24', '28', '29']: 20
['28', '29']: 125
['28', '33']: 25
['2', '3', '4', '8', '9']: 16
['2', '38', 'END']: 10
['START', '2', '3', '14', '18', '19']: 2
['18', '19']: 24
['18', '23', '24', '28', '29']: 5
['2', '3', '14', '18', '19']: 4
['18', '23', '33']: 1
['8', '13', '23', '33']: 4

On running:

./chiron.py -bl_op ./BallLarus/inputs.txt ./path_profiling_op_tests/testcase2.tl

The following output is generated:

**File: **predictor_accuracy.txt

Total Count: 37
Correct Count: 34
Accuracy: 0.918918918918919
------------------------
Total Count: 37
Correct Count: 34
Accuracy: 0.918918918918919
------------------------

**File: **path_profile_data.txt

['START', '2', '3', '4', '5', '6']: 8
['5', '6']: 28
['5', '10', '17']: 14
['2', '3', '4', '5', '6']: 6
['2', '21', 'END']: 10
['START', '2', '3', '11', '12', '13']: 2
['12', '13']: 18
['12', '17']: 6
['2', '3', '11', '12', '13']: 4

On running:

./chiron.py -bl_op ./BallLarus/inputs.txt ./path_profiling_op_tests/testcase3.tl

The following output is generated:

**File: **predictor_accuracy.txt

Total Count: 20
Correct Count: 18
Accuracy: 0.9
------------------------
Total Count: 20
Correct Count: 18
Accuracy: 0.9
------------------------

**File: **path_profile_data.txt

['START', '2', '6', '7']: 6
['6', '7']: 18
['6', '11', '21', 'END']: 6
['START', '12', '16', '17']: 4
['16', '17']: 16
['16', '21', 'END']: 4

Why is the feature interesting?

Give use cases for the feature.

Path profiling can be used to perform optimizations like inlining and loop unrolling along frequently executed paths (hot paths). It can also support building a branch predictor or enable speculative optimizations along likely execution paths.

Other Details

The source code lies in the directory BallLarus. The main implementation of the algorithm is in the file:

/ChironCore/BallLarus/ballLarus.py

This directory also includes a dedicated interpreter for Ball-Larus, derived from the pre-existing interpreter for better modularity.

The file generate_inputs.py in ChironCore/BallLarus/ can be used to generate multiple input flags for usage of -bl_op flag.

The following files are generated upon running the profiling:

1. hash_dump.txt
   Contains the path indexes along with their frequencies.

2. path_profile_data.txt
   Contains the actual path profile data along with their frequencies.

3. predictions_pc.txt
   Contains the program counter (PC) values and corresponding branch predictor predictions.

4. predictor_accuracy.txt
   Contains the final accuracy of the branch predictor based on the profiling data.

[lahiri-phdworks]

@SamyakSinghania Please provide a detailed explanation for atleast one of the testcase, what do these files contain and how profiling is being done?

[SamyakSinghania]

@SamyakSinghania Please provide a detailed explanation for atleast one of the testcase, what do these files contain and how profiling is being done?

@lahiri-phdworks Sir I have added detailed explanation for the outputs of the first 2 testcases along with images. I have also added detailed description of which files are generated and the kind of information it contains.
