GDS Lens

GDSII and OASIS chip layouts, parsed and rendered in the browser. A drop-in custom element compiled to pure JS+WASM with a WebGL2 renderer.

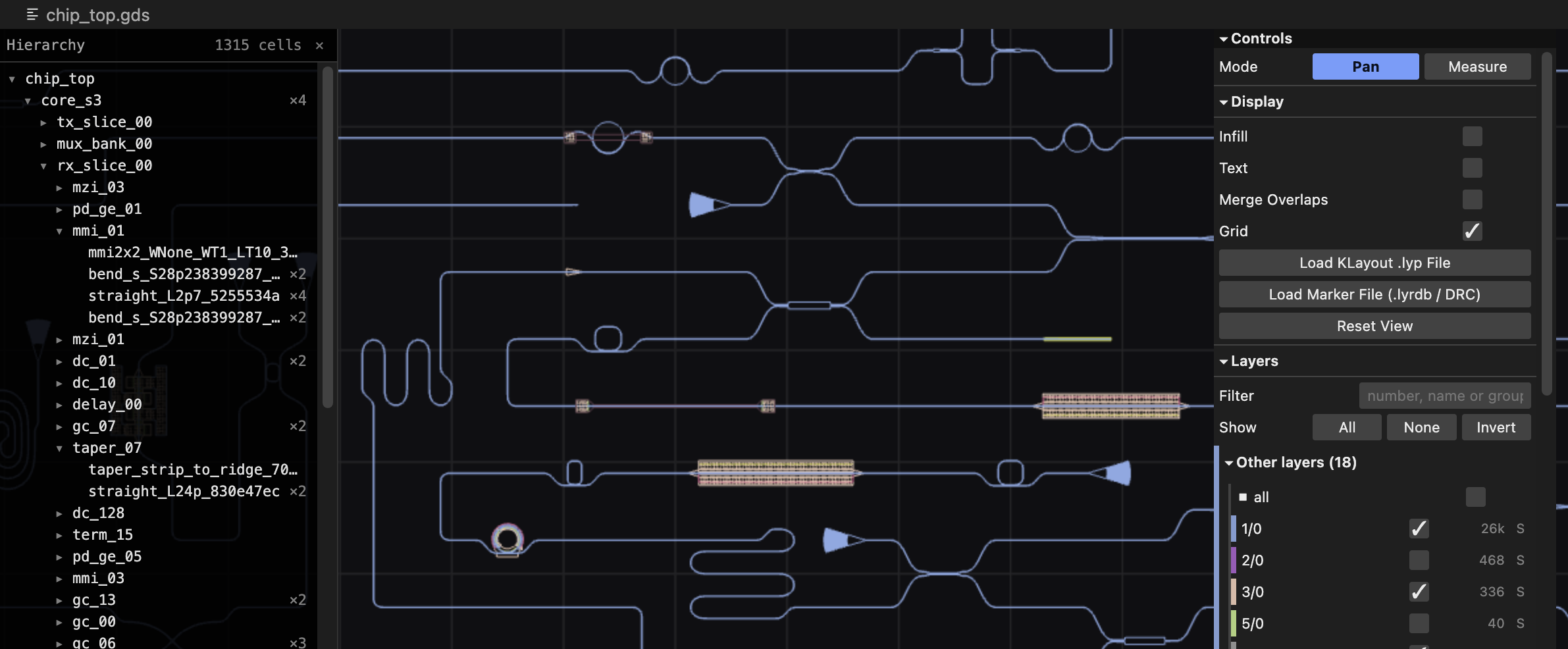

Open a layout in your browser to see it work: drop a .gds or .oas onto the page, or look at the demo layout it starts with. Nothing is uploaded, and there is nothing to install. The page is built from the published package, so it is also the quickest way to check what a given release does.

Quick start

npm install gds-lens

import "gds-lens";   // registers <gds-lens>

<gds-lens src="chip.gds" style="width: 100%; height: 600px"></gds-lens>

That's the whole thing. Pan with the mouse, zoom with the wheel; on a touch screen, drag to pan and pinch to zoom. The import pulls in one self-contained module — the parser, the renderer, the WebAssembly binary, and the control panel — so there is nothing to copy and nothing else to serve.

Or drive it from JavaScript:

import "gds-lens";

const viewer = document.createElement("gds-lens");
viewer.style.cssText = "width: 100%; height: 600px";
document.body.append(viewer);

await viewer.load("chip.gds");        // a URL, or bytes you already have
await viewer.goToPoint(120.5, -40);   // center on a coordinate, in microns

If you would rather serve a payload than bundle one — for a smaller download and a streaming WebAssembly compile — see Embedding GDS Lens.

What it does

• Parses GDSII and OASIS. Format and gzip are both detected from the leading bytes rather than the filename. The reader is gdstk itself, which is what other implementations validate against.
• Renders with WebGL2. Layer-batched vertex buffers, GPU instancing for repeated cells, and a stroke font all live in C++ compiled alongside the parser.
• Reads layer properties. A .lyp file supplies colors, fill styles, and layer names.
• Browses DRC and LVS markers. The viewer reads .lyrdb report databases and ASCII DRC results.
• Navigates hierarchy. You can search cells and labels, and measure distances.

Installation

The package ships prebuilt: no Emscripten toolchain is required to consume it. Installing straight from a git URL does not work, because dist/ is built in CI rather than committed.

---

Reference

The following sections describe the element's own API. The rest lives beside it:

Page	What is in it
React integration	A wrapper component, the JSX type declaration, server rendering, remounts.
Embed the viewer	The ViewerHost interface, the three builds, the subpath exports, and the limits of the WebAssembly module.

The <gds-lens> element

The element is display: block with no intrinsic height, so give it one. It takes one attribute and exposes a handful of methods.

Attributes

The element takes one attribute:

Attribute	Description
src	URL of a layout to fetch and display. Setting it later reloads.

Properties and methods

The element exposes the following members:

Member	Returns	Description
ready	Promise<ViewerSurface>	Resolves once the engine has mounted. Every method in the following table awaits this, so you rarely need it directly.
load(source, options?)	Promise<void>	source is a URL string, a Uint8Array, or an ArrayBuffer. options.reload keeps the current camera and layer visibility instead of framing the design. Resolves once the layout is on screen; rejects on a failed fetch, a file the parser refuses, or — with an error named AbortError — when a later load superseded this one.
showLoading(label?)	Promise<void>	Shows the loading overlay, for the wait before a load() of bytes the page is fetching itself. load(url) does this on its own.
goToPoint(x, y)	Promise<boolean>	Centers on a coordinate in microns and flashes a crosshair. Resolves true if the point is inside the layout.
setLyp(name, text)	Promise<void>	Applies a .lyp layer-properties file. Pass "" to clear.
setMarkers(name, text)	Promise<void>	Applies a marker database. The viewer detects the format from the content.
showError(message)	Promise<void>	Replaces the view with an error message.
destroy()	Promise<void>	Releases the viewer's WebAssembly instance and WebGL context for good. Rarely needed — see Removal parks the viewer.

Every load() cancels the one before it, so two quick changes to src show the second layout even when the first is the slower download.

Events

The element dispatches two events on itself, whichever way a load was started — the src attribute, load(), or a host pushing bytes through its surface. Neither bubbles.

Event	detail	When
gds-load	{ layerCount, cellCount }	A layout finished loading and is on screen.
gds-error	{ message }	A load failed, or showError() was called. message is the text the viewer shows.

viewer.addEventListener("gds-load", (event) => {
    console.log(`${event.detail.layerCount} layers, ${event.detail.cellCount} cells`);
});
viewer.addEventListener("gds-error", (event) => {
    reportProblem(event.detail.message);
});

The names carry a prefix because load and error already have meanings — and types — on every HTML element.

Keyboard shortcuts

The keys act on the viewer that was last pointed at, so on a page with several they go to the one under the mouse.

Key	Action
[ / ]	Previous / next marker in the selected marker's category.
m	Toggle measure mode. Click two points to place a ruler.
Esc	Abandon a ruler being placed; with none in progress, clear the finished ones and return to pan mode. Also closes the coordinate menu.
h	Show or hide the cell hierarchy.
/	Focus the cell filter box.

Several viewers on one page

Each <gds-lens> drives its own viewer, with its own shadow tree, its own WebAssembly instance, and its own WebGL2 context. Put as many on a page as you like; they share nothing, so a .lyp or a marker database applied to one leaves the others alone.

Each one costs a WebGL2 context, though, and browsers cap live contexts per page at roughly 8 to 16 — past that the browser starts dropping the oldest. A page showing a dozen layouts at once wants one viewer swapping layouts rather than a dozen elements.

examples/multi-view.html is a working page of six: three loading a layout from src, three waiting for a button, one of them created and released on demand to keep a context free.

Removal parks the viewer

An element leaving the DOM parks its viewer rather than tearing it down, and the next <gds-lens> to mount without one of its own adopts it. That is what makes a framework remount free: the element is new, the viewer is not, and the parsed design, the camera and the GL context all survive.

An element mounted alongside a live one finds nothing parked and builds its own, which is why the preceding section is true.

Nothing frees a parked viewer on its own. A page that creates viewers it will never show again, and is hitting the context limit, can call destroy(); an ordinary unmount should let it park. See Remounts and StrictMode for what this means in a framework.

Limits

The parser and renderer run in a 32-bit WebAssembly address space, so a layout has to fit — file plus geometry — inside it. See Limits for the numbers and Compressed layouts for what that means for gzipped files.

Build from source

Building from source requires the Emscripten SDK (emcc/emcmake on PATH) and Python 3.10 or later for its driver scripts. macOS's system python3 is 3.9 and fails with a TypeError on list[str] | None; with uv:

uv python install 3.13
export EMSDK_PYTHON="$(uv python find 3.13)"

Then build the payloads and run the tests:

git submodule update --init --recursive
npm install
npm run build:wasm     # all three -> src/wasm/build/{web,inline,esm}/
npm run build          # -> dist/{web,inline-wasm,esm}/
npm test

npm run build:wasm:web, :inline, and :esm build one variant each; npm run build then produces whichever outputs it finds the wasm for, and says which it skipped. The three differ only in link flags, but CMake caches those, so each gets its own build tree.

npm test includes browser tests that need Chromium (npx playwright install chromium); they skip if it is missing. The end-to-end load test runs once per built payload.

Before publishing, npm run check:dist and npm run check:package verify that the payloads are present and no newer than their sources, and that the tarball carries nothing it should not. prepublishOnly runs both.

License

MIT, see LICENCE.md.

The payload carries third-party code in two places. Statically linked into the WebAssembly: gdstk (BSL-1.0), Clipper (BSL-1.0), Qhull (Qhull license), earcut.hpp (ISC), and zlib (zlib license) — and gds-lens-engine.js is itself Emscripten's output (MIT/NCSA). Bundled into the JavaScript beside it: lil-gui (MIT).

Every notice is reproduced in THIRD-PARTY-LICENSES.md. Qhull's license in particular requires its notice to accompany any distribution that includes it, and its original source can be obtained from the Qhull website.
