cs157a-project

CLI for User Views

All Listings

SELECT DISTINCT Listings.listingID, Listings.price, Listings.location,
        Listings.vin, Makes.make, Cars.model, Cars.year, Cars.mileage,
        Users.userName
        FROM Listings
        INNER JOIN Users ON Users.userID = Listings.sellerID
        INNER JOIN Cars ON Cars.vin = Listings.vin
        INNER JOIN Models ON Models.model = Cars.model
        INNER JOIN Models a ON a.year = Cars.year
        INNER JOIN Makes ON Makes.model = Models.model;

Individual Listing for ListingID 1

SELECT Listings.listingID, Listings.price, Listings.location,
        Cars.vin, Makes.make, Cars.model, Cars.year, Cars.mileage,
        Users.userName
        FROM Listings
        JOIN Cars ON Cars.vin = Listings.vin
        JOIN Users ON Users.userID = Listings.sellerID
        JOIN Models ON Models.model = Cars.model
        JOIN Models a ON a.year = Cars.year
        JOIN Makes ON Makes.model = Models.model
        WHERE Listings.listingID = 1;

User 1's (Electrex's) ​Transactions

SELECT Transactions.transactionID, Transactions.listingID, Transactions.buyerID, Transactions.transactionDate,
       ​Listings.sellerID, Listings.price
       ​FROM Transactions
       ​JOIN Listings ON Listings.listingID = Transactions.listingID
       ​WHERE Listings.sellerID = 1 OR Transactions.buyerID = 1;

User 1's (Electrex's) Listings

SSELECT Listings.listingID, Listings.price, Listings.location,
      ​​Cars.vin, Makes.make, Cars.model, Cars.year, Cars.mileage,
      ​​Users.userName
      ​​FROM Listings
      ​​JOIN Cars ON Cars.vin = Listings.vin
      ​​JOIN Users ON Users.userID = Listings.sellerID
      ​​JOIN Models ON Models.model = Cars.model
      ​​JOIN Models a ON a.year = Cars.year
      ​​JOIN Makes ON Makes.model = Models.model
      ​​WHERE Listings.sellerID = 1;

Docker Deployment

Option 1: Pull and run the pre-made docker image files (recommended)

1. Make sure you have docker installed
2. Setup the docker network, pull and run the images for the server and client in their isolated containers:

$ docker network create project
$ docker run -p 3001:3001 -d --network=project --name=node-server electrex/node-server:3.0
$ docker run -p 3000:3000 -d --network=project --name=react-client electrex/react-client:3.0

4. Once the project's containers are up and running, visit localhost:3000 in browser to access the application's UI

Option 2: Build and run the docker images yourself

1. Make sure you have docker installed
2. Pull the latest branch of the project's github repository:

$ git pull https://github.com/MerrillPE/cs157a-project.git

3. Open a new terminal window in the cloned repository's root directory and run the following:

$ docker-compose build
$ docker-compose up

4. Once the project's containers are up and running, visit localhost:3000 in browser to access the application's UI

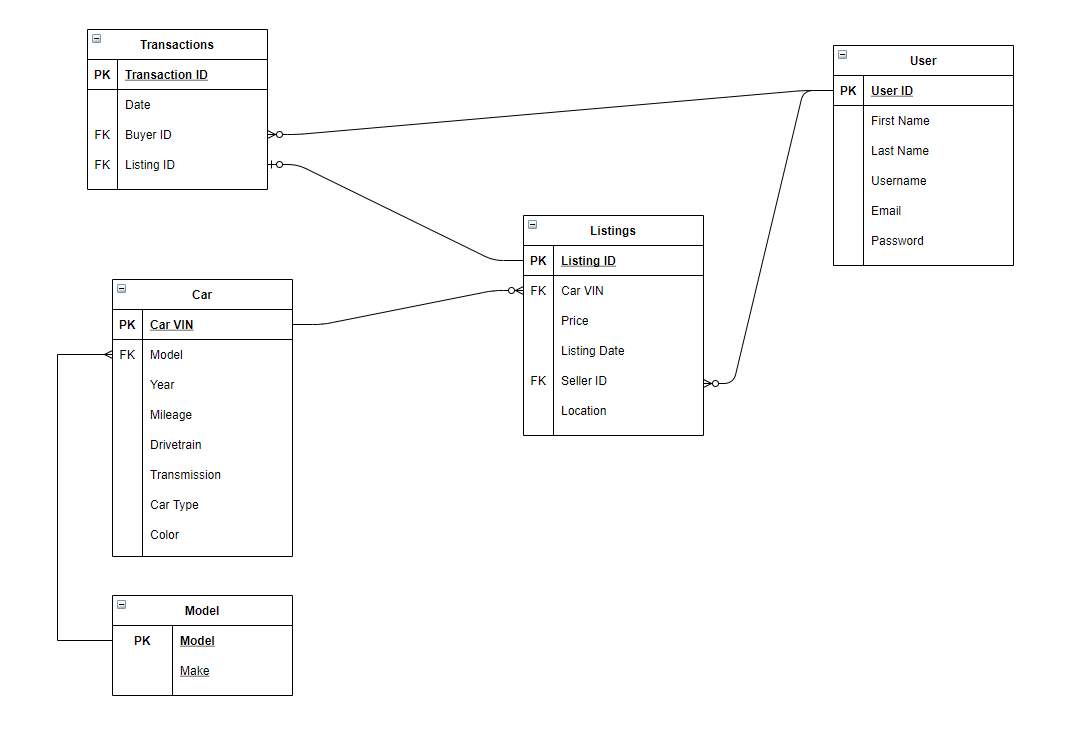

Diagrams

Views

1NF

2NF

3NF

Physical Design

License

MIT
