jaxtyc

Static array shape checking for JAX powered by jax.eval_shape.

Reads jaxtyping annotations and verifies shapes at analysis time -- no runtime cost, no FLOPs. Unlike jaxtyping's runtime beartype checks, jaxtyc catches shape bugs before your code ever runs on a GPU.

How It Works

jaxtyc traces your annotated functions with jax.eval_shape, which propagates shapes through JAX operations without allocating any arrays. Each named dimension (batch, d_model, etc.) is assigned a unique prime number (>= 101), so distinct dimension names always produce distinct sizes -- making shape mismatches unambiguous and impossible to mask by accident.

Features

• Zero runtime cost -- jax.eval_shape only; no arrays allocated, no computation executed
• Prime-based symbolic shapes -- each dimension name maps to a unique prime (>= 101), so d_in != d_out is guaranteed
• 18 diagnostic rules -- shape/rank mismatch, cross-function propagation, parameter consistency, sharding validation, tuple return checking, trace errors
• Sharding-in-types -- annotate mesh axes inline with | syntax ("batch|dp seq|None d_model|mp"), validated against mesh topology with 8 dedicated sharding rules
• Einops integration -- detects einops.rearrange/reduce/repeat calls, parses pattern strings for shape checking, and provides einops-aware fix suggestions
• Inline suppressions -- # jaxtyc: ignore and # jaxtyc: ignore[rule-name]

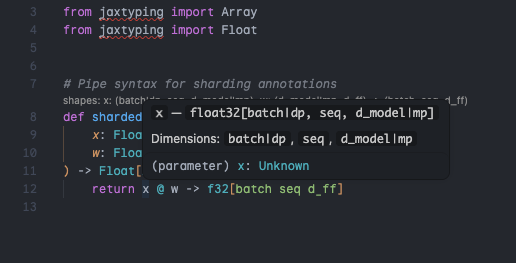

• LSP server -- diagnostics, hover, CodeLens, go-to-definition, references, rename, code actions, completion, semantic tokens, inlay hints, signature help, linked editing, folding, call hierarchy

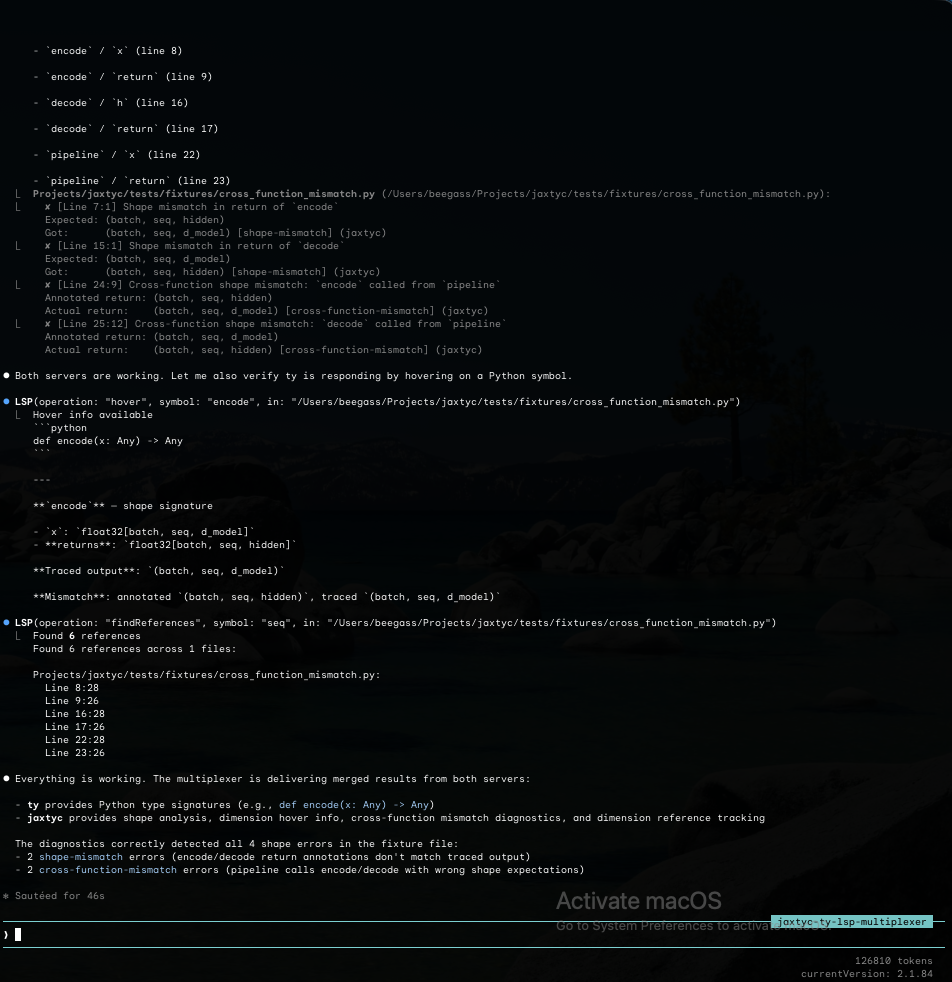

• LSP multiplexer -- jaxtyc mux runs ty/pyright + jaxtyc behind a single stdio pipe
• CLI with 4 output formats -- full, concise, json, github (inline PR annotations)
• Flax NNX + Equinox support -- traces bound methods on module instances
• Configurable via pyproject.toml -- severity threshold, rule ignoring, file exclusion, einops preferences

Installation

pip install jaxtyc
# or
uv add jaxtyc

Extras:

Extra	Installs	Use case
jaxtyc[watch]	watchfiles	jaxtyc watch -- re-check on file save
jaxtyc[flax]	flax >=0.10	Flax NNX module tracing
jaxtyc[equinox]	equinox >=0.11	Equinox module tracing
jaxtyc[einops]	einops >=0.8	einops-style fix suggestions + inlay hints with pattern dim names
jaxtyc[all]	All of the above	Everything

Quick Start

# model.py
import jax.numpy as jnp
from jaxtyping import Array, Float

def linear(
    x: Float[Array, "batch seq d_in"],
    w: Float[Array, "d_in d_out"],
) -> Float[Array, "batch seq d_out"]:
    return jnp.matmul(x, w.T)  # Bug: .T swaps dims, produces (batch, seq, d_in)

$ jaxtyc check model.py
model.py:8:0: error[shape-mismatch]
  Shape mismatch in return of `linear`
    Expected: (batch, seq, d_out)
    Got:      (batch, seq, d_in)

Found 1 error(s) in 1 function(s) checked (0.03s)

Fix: replace w.T with w and annotate w as "d_out d_in", or use jnp.matmul(x, w) with w: Float[Array, "d_in d_out"].

Editor Integration

VS Code

Install from the VS Code Marketplace or search "jaxtyc" in the Extensions view.

Or build from source:

cd editors/vscode && npm install && npm run bundle
npx @vscode/vsce package --allow-missing-repository
code --install-extension jaxtyc-*.vsix

Or use the justfile: just vscode-update

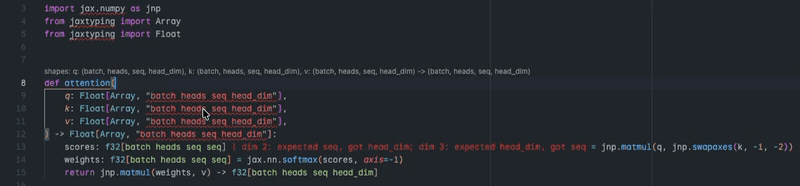

The extension auto-discovers your Python environment (.venv, VIRTUAL_ENV, or jaxtyc on PATH) and starts the LSP server automatically. Supports multi-root workspaces with per-folder LSP clients. Includes jaxtyping snippets, a trace visualization webview, and a status bar quick pick menu.

Other Editors

jaxtyc works in any editor that supports LSP (Neovim, Helix, etc.). See the editor setup docs for configuration.

CLI

jaxtyc check <paths>...          # Shape-check files or directories
jaxtyc trace <file.py::func>     # Trace intermediate shapes through a function
jaxtyc watch <paths>...          # Watch and re-check on change
jaxtyc lsp                       # Start the LSP server (stdio)
jaxtyc mux                       # Start the LSP multiplexer (ty/pyright + jaxtyc)
jaxtyc version                   # Print version

CI Integration

Use --format github to get inline annotations on pull request diffs:

name: Shape Check
on: [push, pull_request]

jobs:
  jaxtyc:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v6
      - uses: astral-sh/setup-uv@v7
      - run: uv sync
      - run: uv run jaxtyc check src/ --format github

Each shape error appears as an annotation on the exact file and line in the PR. See the CI docs for JSON output, configuration, and full pipeline examples.

Documentation

Full docs at beegass.github.io/jaxtyc.

Contributing

Contributions are welcome! See CONTRIBUTING.md for guidelines.

License

MIT
